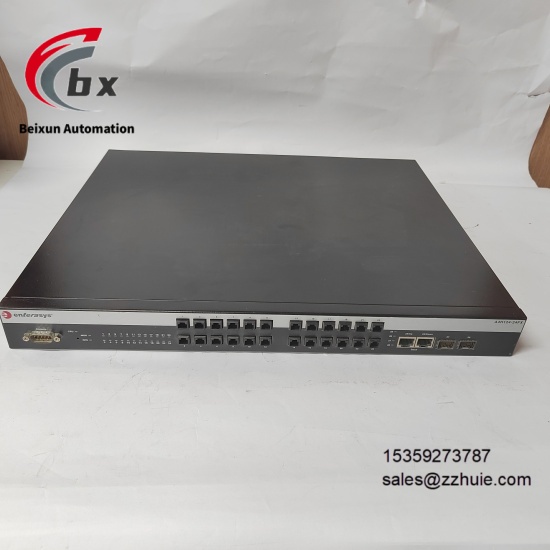

Extreme A4H124-24FX P0973JN Ethernet switch

Extreme A4H124-24FX P0973JN Ethernet switch

Specific Parameters​

Core and Function Parameters​

Module Type Industrial/Enterprise-class Stackable L2/L3 Edge Ethernet Switch​

Series Extreme Networks A4 Series​

Form Factor 1U Rack-mountable/Desktop​

Core Functions Fiber optic network interconnection, traffic management, stacking expansion, redundancy backup, security protection​

Supported Protocols IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IEEE 802.1x​

Management Methods CLI, SNMP (v1/v2/v3), RMON, Telnet, HTTP, TFTP, SSH, Web-based management​

Stacking Capacity Up to 8 devices stacked, total stacking capacity 140.8Gbps​

Security Functions ACL, Port Security, MAC Address Authentication, Web Authentication, IEEE 802.1x Authentication​

Special Functions QoS Priority Ranking, Traffic Control, Port Mirroring, IGMP Snooping, Jumbo Frame Support, Static Routing/RIPv1/v2​​

Port and Performance Parameters​

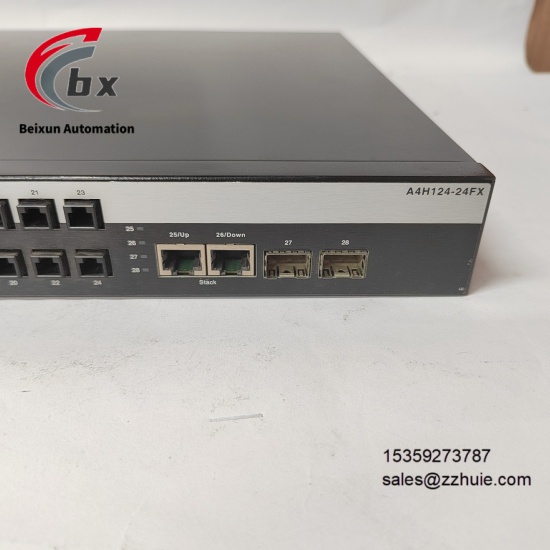

Port Configuration 24 100Base-FX fiber ports (SFP interfaces), 2 gigabit SFP uplink ports, optional 2 gigabit RJ-45 stacking/uplink ports​

Fiber Port Speed 100Mbps (Full Duplex)​

Uplink Port Speed 1000Mbps (SFP ports)​

Switching Capacity 12.8Gbps to 17.6Gbps​

Forwarding Rate 9.5Mpps​

MAC Address Table Capacity 16000 entries​

Number of Supported VLANs 4096 (IEEE 802.1Q standard)​

Jumbo Frame Support Up to 9216 bytes​

Single Stack Port Expansion Up to 384 10/100 Ethernet ports, 16 gigabit Ethernet uplink ports​

Electrical and Environmental Parameters​

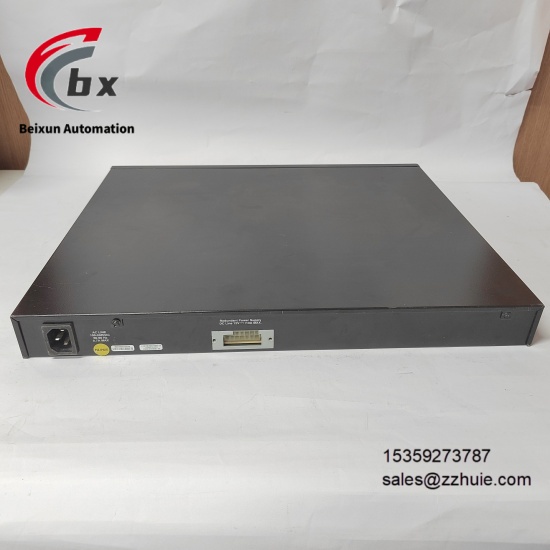

Power Supply AC 100-240V (50-60Hz), supports redundant power supply (optional RPS external redundant power system)​

Maximum Power Consumption 50-66W​

Operating Temperature Range 0°C to 50°C​

Storage Temperature Range -40°C to 70°C​

Relative Humidity 5% to 95% (non-condensing)​

Overall Dimensions 44mm×440mm×220mm (H×W×D)​

Weight 3.5kg to 4.9kg​

Protection Features Anti-electromagnetic interference, fanless silent design (office environment compatible)​

Product Performance​

Strong switching performance, maximum 17.6Gbps switching capacity and 9.5Mpps forwarding rate ensuring wire-speed data transmission​

Outstanding expandability, 8-device stacking achieving 140.8Gbps total capacity meeting large-scale port expansion needs​

Transmission distance advantage, fiber ports supporting 2km long-distance communication adapting to industrial long-distance deployment​

Comprehensive security protection, multiple authentication mechanisms and ACL control resisting network security threats​

Intelligent traffic management, QoS priority and traffic segmentation functions guaranteeing priority transmission of key business data​

Flexible management methods, multi-protocol and multi-interface management support reducing configuration and maintenance complexity​

High operational reliability, redundant power supply and stacking redundancy design ensuring uninterrupted network operation​

Wide environmental adaptability, wide temperature operating range and anti-interference design compatible with industrial and office scenarios​
