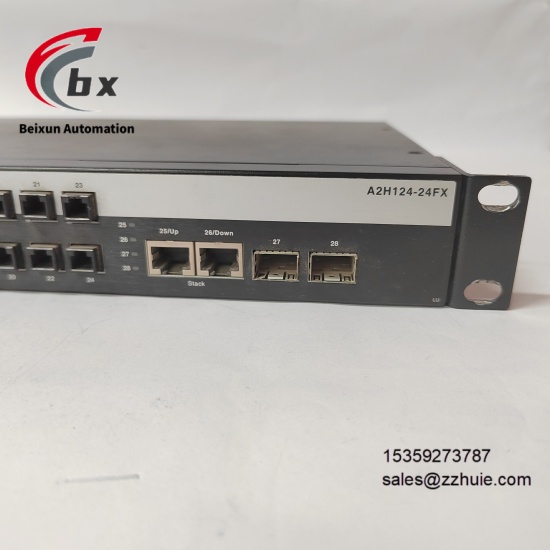

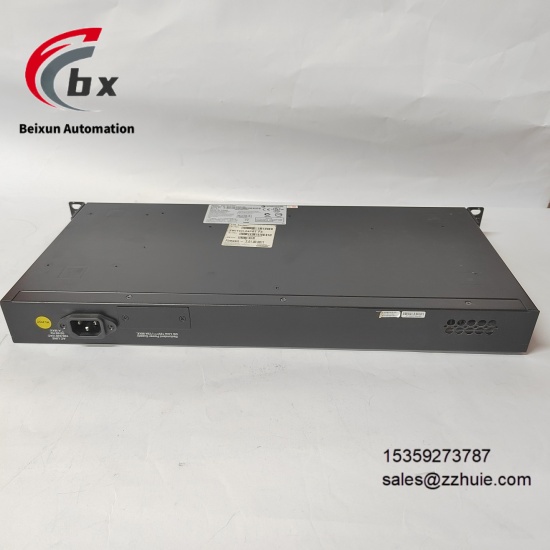

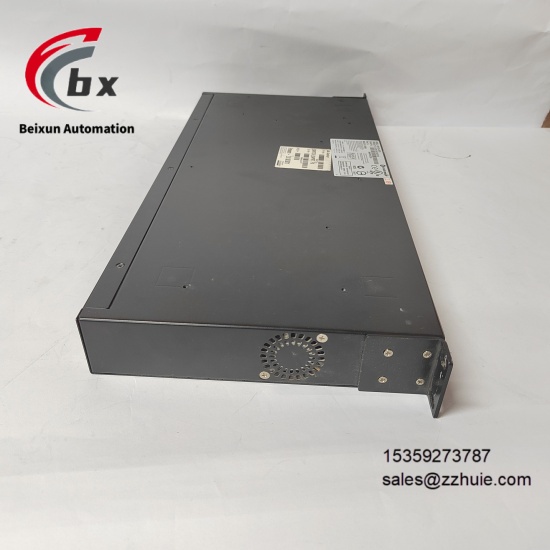

Extreme A2H124-24FX P0973BJ Ethernet switch

Extreme A2H124-24FX P0973BJ Ethernet switch

Specific Parameters​

Port and Performance Parameters​

Port Configuration 24 1000BASE-FX optical ports (SC/LC interface optional), 4 10/100/1000BASE-T electrical ports​

PoE Function 4 electrical ports support IEEE 802.3af/at standards, total PoE power 370W, maximum 30W per port​

Switching Capacity 56Gbps, Packet Forwarding Rate 41.7Mpps​

Supported Protocols IEEE 802.1Q (VLAN), IEEE 802.1s (MSTP), IEEE 802.1w (RSTP), ERPS (G.8032)​

Maximum VLANs 4096, supporting Private VLAN, Voice VLAN​

QoS Levels 8 priority queues, supporting DSCP/802.1p mapping​

Redundancy Functions Supporting ERPS ring network (recovery time ＜50ms), Link Aggregation (LACP)​

Management Methods Supporting Web GUI, CLI (SSH/Telnet), SNMPv3, Extreme Management Center​

Electrical and Environmental Parameters​

Power Supply 100-240V AC (50/60Hz), or 24-48V DC dual power redundancy input​

Power Consumption Maximum power consumption 100W (excluding PoE output), total power consumption 470W with full PoE load​

Operating Temperature -40℃ to 75℃, meeting industrial wide-temperature requirements​

Storage Temperature -40℃ to 85℃, adapting to extreme storage environments​

Protection Rating IP40, with dust-proof capability​

Vibration Resistance Complying with EN 61373 standard, 5-500Hz (10g acceleration)​

Shock Resistance Complying with EN 61373 standard, 50g acceleration (duration 11ms)​

EMC Compliance Complying with EN 55032 Class A, EN 61000-6-2 standards​

Product Performance​

High switching efficiency, 56Gbps switching capacity and 41.7Mpps packet forwarding rate, ensuring non-blocking transmission of Gigabit data​

Powerful PoE power supply, 370W total power and 30W per-port output, meeting simultaneous power supply needs of multiple devices​

Excellent redundancy capability, ERPS ring network ＜50ms recovery time, avoiding network interruption caused by single-point failure​

Strong environmental adaptability, -40℃ to 75℃ wide-temperature operation, withstanding vibration, shock and complex electromagnetic environments​

Comprehensive security protection, supporting 802.1X authentication, ACL access control, SNMPv3 encryption to ensure network security​

Good management convenience, multi-method management interfaces and unified management platform, simplifying network operation and maintenance​

Good expandability, supporting link aggregation and VLAN division, adapting to industrial network expansion needs​

High reliability, dual power redundancy input and industrial-grade components, Mean Time Between Failures (MTBF) ≥1000000 hours​
