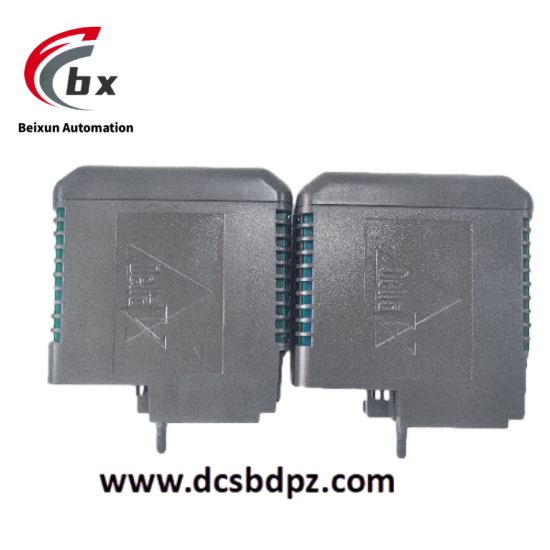

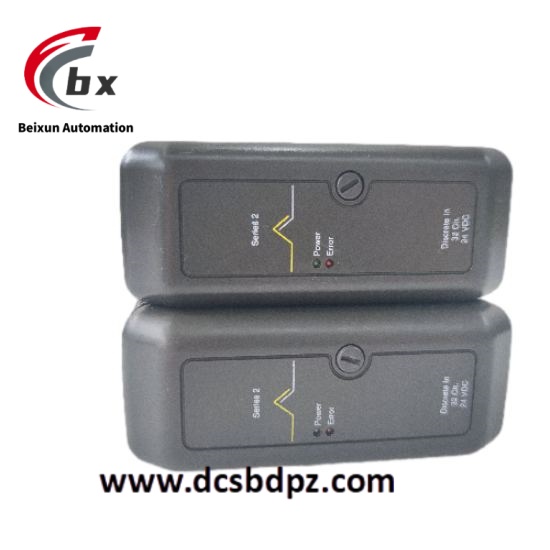

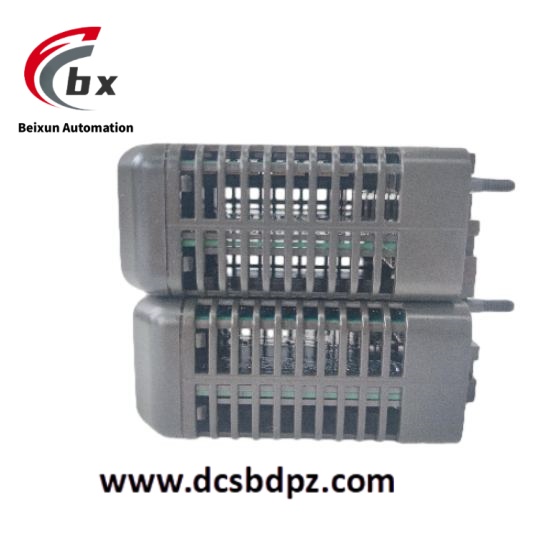

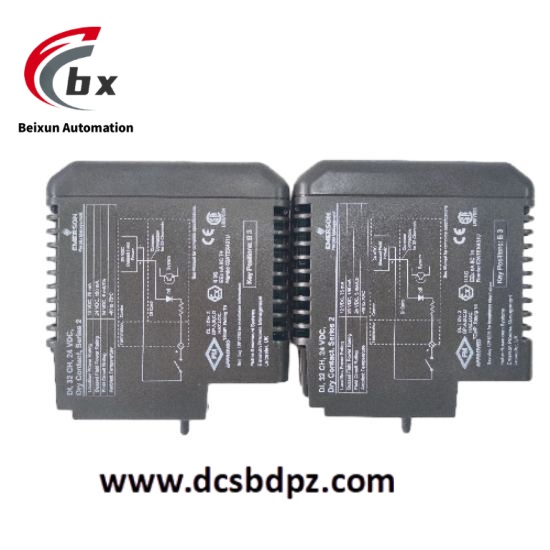

EMERSON VE4001S2T2B5 Discrete input card module
Specific parameters
Number of channels: 32 channel dry contact input, supporting single ended or differential wiring.
Isolation characteristics: Each channel is optically isolated from the system, with a factory test value of 1500V DC, in compliance with industrial safety standards.
Detection level:
Logic “1” (on):>2mA
Logic “0” (off):<0.25mA
Input impedance: 5k Ω (typical value).
Power specifications:
Local bus power supply: 12V DC, typical current 50mA, maximum 75mA
On site circuit power supply: 24V DC, maximum 150mA.
Environmental parameters:
Working temperature: -40 ° C to 60 ° C
Humidity: 5%~95% (non condensing)
Protection level: IP20 (installed inside the cabinet).
Physical characteristics: Dimensions of approximately 175mm × 130mm × 67mm, weight of approximately 1.2kg, supporting DIN rail installation.
Product Performance
High reliability:
Optical isolation design can effectively suppress electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring signal transmission stability.
Support channel level diagnostic function, which can monitor input status in real time and display fault information through LED indicator lights.
Flexible configuration:
Supports multiple wiring methods (such as single ended and differential), and can be flexibly adjusted according to on-site needs.
Compatible with DeltaV system’s redundant architecture, it can work in conjunction with other I/O modules (such as VE4002S1T2B5 discrete output card) to build a high availability system.
Quick response:
The scanning rate can reach 0.25 milliseconds (16 channels), suitable for control scenarios that require high real-time performance.
Easy to maintain:
Plug and play design, supporting online module replacement without affecting system operation.
The modular structure facilitates fault location and spare parts management.
application area
Industrial process control: equipment status monitoring in industries such as chemical, oil and gas, and power (such as start stop signals for pumps, valves, and motors).
Discrete manufacturing: Logic control in automated production lines (such as conveyor start stop, material detection).
Energy management: Equipment status monitoring in renewable energy systems such as wind and solar power.
Infrastructure: Remote I/O signal acquisition for scenarios such as water treatment and transportation hubs.
Hazardous Area: Suitable for Class 1 Division 2 and IEC Zone II environments, capable of operating in explosive gas or dust environments.
