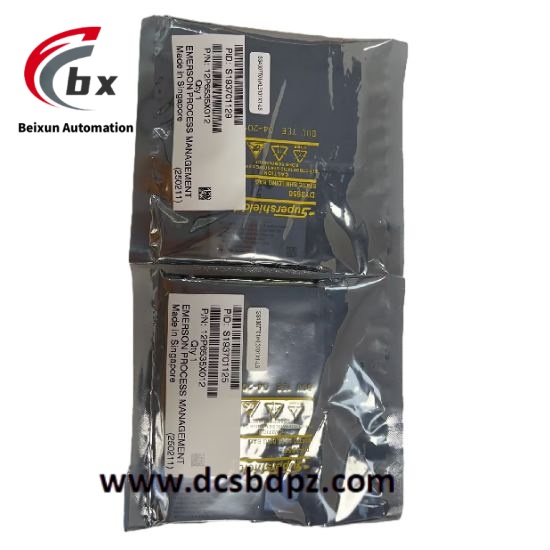

EMERSON SS4307T01 Security system I/O module
Specific parameters
Channel configuration:
Supports 16 I/O channels and can be flexibly configured as discrete input (DI), discrete output (DO), or analog input (AI, HART compatible).
Discrete channel: 24V DC signal, supports dry contact or transistor input/output, isolation voltage ≥ 1500V DC.
Analog channel: 4-20mA signal, accuracy ± 0.1%, supports bidirectional communication of HART protocol devices.
Electrical characteristics:
Power supply: 24V DC (redundant power input), power consumption ≤ 10W.
Communication interface: Built in SISNet communication bus, supporting redundant ring network architecture, with a transmission rate of 10Mbps.
Environmental parameters:
Working temperature: -40 ℃ to+70 ℃, suitable for harsh industrial environments.
Protection level: IP20 (standard), optional IP55 protection kit.
Anti interference: Compliant with IEC 61000-4 electromagnetic compatibility standard, resistant to vibration (5-150Hz, 1.0g) and impact (50g, 11ms).
Product Performance
Safety and reliability:
Adopting a 2oo3 (two out of three) redundant architecture, it supports online hot plugging and automatically switches to the backup channel in case of failure, ensuring system continuity.
Built in self diagnostic function, real-time monitoring of channel status, can identify sensor disconnection, signal abnormalities and other faults, reducing the risk of false tripping.
Intelligent diagnosis:
By interacting with on-site devices through the HART protocol, the health status of the equipment (such as valve travel, transmitter calibration values) can be obtained, enabling predictive maintenance.
Support SIL 3 certification to meet the highest safety integrity level requirements.
Flexible configuration:
Compatible with DeltaV S series I/O modules, can be mixed with traditional I/O cards, supports “I/O on Demand” technology, and adapts to changes in project requirements in the later stage.
application area
Petrochemical industry:
Emergency Shutdown System (ESD) and Burner Management System (BMS) ensure rapid response to hazardous situations during the production process.
High pressure reactor pressure/temperature monitoring, linked safety valve for interlock protection.
Electricity and Energy:
The reactor protection system of a nuclear power plant monitors key parameters and triggers a safe shutdown.
Gas turbine overspeed protection to prevent equipment damage and personnel injury.
Pharmaceutical and Food:
Clean room pressure control in sterile production environment to prevent cross contamination.
The temperature/pressure interlock of high-pressure sterilization equipment ensures process compliance.
