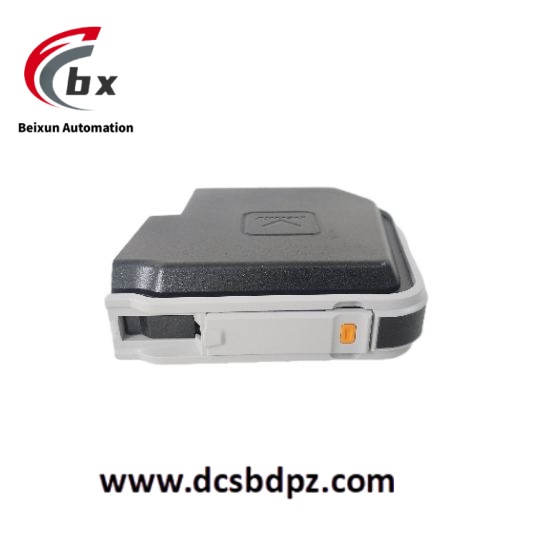

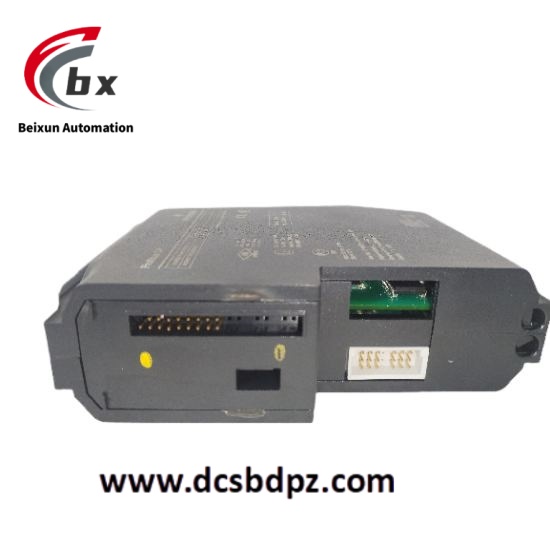

EMERSON SE4022 KJ3243X1-BK1 Profibus DP interface card module

Electrical specifications
Communication protocol: Profibus DP V1, supports adaptive baud rates from 9.6 kbps to 12 Mbps.
Power requirement: 12 V DC (powered by DeltaV local bus), typical power consumption of 600 mA.
Signal isolation: The isolation voltage between channels and systems is ≥ 1500 V DC, with strong anti-interference ability.
Machinery and Environment
Dimensions: 5.1 cm (width) x 16.1 cm (height) x 12.7 cm (depth), weight approximately 0.3 kg.
Working temperature: -40 ° C to+70 ° C, supporting extreme industrial environments.
Protection level: IP20 (standard), optional IP54 version for use in dusty or humid environments.
Certification: Compliant with CE and UL standards, some models have passed ATEX and IECEx explosion-proof certifications (customization required).
Communication capability
Node capacity: A single card supports up to 126 Profibus DP slaves.
Data throughput: Typical value of 1.5 Mbps (at 12 Mbps baud rate), supporting real-time process data transmission.
Diagnostic function: Built in LED indicator light displays communication status, error codes, and power failure.

Product Performance
High reliability design
Redundant architecture: Supports dual port redundant communication, automatically switches to the backup link in case of main link failure, ensuring communication continuity.
Fault tolerance: Equipped with wire breakage detection, short circuit protection, and surge suppression functions, reducing the risk of equipment damage.
Anti interference: Designed with fiber optic isolation and shielded cables, the signal distortion is less than 1% in strong electromagnetic interference environments.
flexible configuration
Multi master mode: can operate as a Profibus DP master or slave, supporting mixed networking with third-party devices.
Parameter customization: Parameters such as slave address, baud rate, and data mapping table can be configured through DeltaV configuration software.
Modular Expansion: Supports use with DeltaV SE4006P2 expansion card to increase the number of communication channels.
Intelligent diagnosis
Real time monitoring: View communication status, error rate, and slave health in real-time through the DeltaV interface.
Self diagnostic function: automatically detects communication errors and generates logs, supports remote reset or firmware upgrade.

application area
petrochemical industry
Production process control: Intelligent instruments connecting reactors, compressors, and other equipment to achieve distributed real-time monitoring.
Safety Instrumented System (SIS): communicates with Profibus DP safety modules and meets the functional safety requirements of IEC 61508.
Electricity and Energy
Power station monitoring: Integrate Profibus DP sensors for steam turbines and generators to optimize equipment operating parameters.
New energy system: Communicate with photovoltaic inverters and energy storage equipment to achieve centralized control of energy management system (EMS).
Metallurgy and Mining
Rolling mill automation: connecting PLC and transmission system to achieve precise synchronous control of the rolling process.
Mining transportation: Communicate with Profibus DP controllers for mining trucks and conveyor belts to improve logistics efficiency.
Pharmaceutical and Food Beverage
Cleanroom control: Connect the Profibus DP module to the HVAC system and filling equipment to meet GMP compliance requirements.
Batch management: Communicate with weighing sensors and packaging machines to achieve traceability and optimization of production batches.
