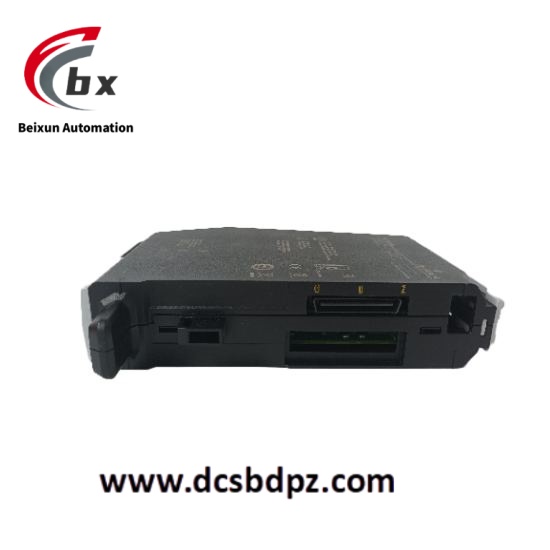

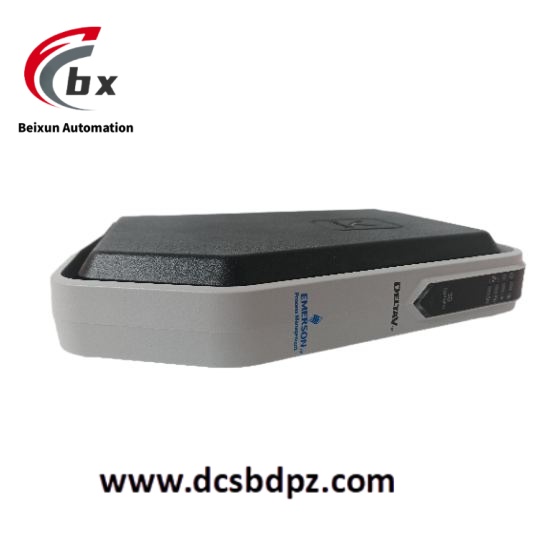

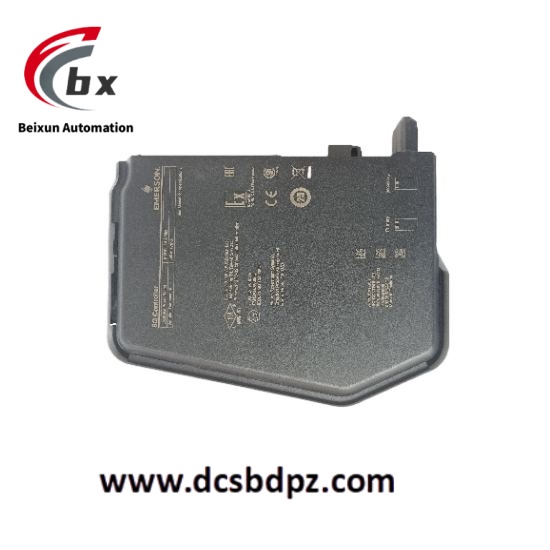

EMERSON SE3008 KJ2005X1-MQ2 13P0072X082 Digital Output Module

Specific parameters
Electrical characteristics:
Output channel: 8 digital outputs, supporting 24V DC high side configuration, with a maximum load current of 1A per channel.
Power supply requirements: Powered by the system power supply (24V DC ± 10%), redundant power input, power consumption ≤ 5W.
Signal type: Discrete Output (DO), supports dry junction or transistor output mode.
Environmental parameters:
Working temperature: -40 ℃ to+70 ℃, storage temperature -40 ℃ to+85 ℃.
Relative humidity: 5% -95% (no condensation), protection level IP20 (requires protective casing).
Anti interference capability: Passed 10g impact test (11ms sine wave), supports vibration test (5-150Hz, 0.5g).
Communication interface:

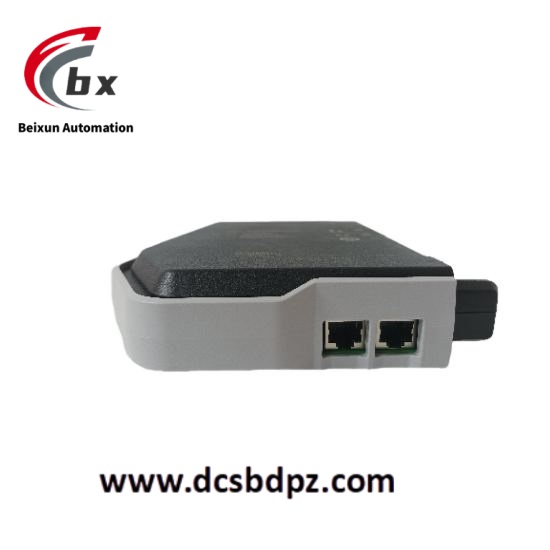

Control network: Supports dual redundant Ethernet interfaces (RJ45) and is compatible with the DeltaV system control protocol.
Diagnostic function: Built in LED status indicator light, real-time monitoring of channel status (open/short circuit), supports remote configuration via RS232/485 interface.

Product Performance
High reliability:
Industrial grade design, using reinforced circuit boards and anti-interference shielding technology to adapt to extreme environments (such as chemical and metallurgical workshops).
Support 1:1 redundant configuration to ensure the continuity of critical processes, with a fault switching time of less than 50ms.
Flexible scalability:
Can be mixed with other modules of the DeltaV system (such as AI, AO, DI cards) for installation, supporting online expansion or upgrade.
Compatible with multiple communication protocols such as Modbus and Profibus, making it easy to integrate third-party devices.
Intelligent diagnosis:
Real time monitoring of output circuit status, automatic triggering of fault alarms and recording of logs.
Support remote firmware updates and parameter adjustments to reduce downtime.

application area
Petrochemical industry:
Regulating valve control and pump unit start stop management to ensure the stability of the production process.
The rapid response execution module of the Emergency Shutdown System (ESD).
Energy and electricity:
Automation control of auxiliary equipment in power plants, such as fans and feedwater pumps.
Precise valve control in the field of new energy, such as hydrogen electrolysis cells.
Industrial manufacturing:
Start stop control of robotic arms and conveyor belts in automated production lines.
Logic control of mold opening and closing for injection molding machines and die-casting machines.
Water treatment:
The timing control of the aeration system and dosing pump in the sewage treatment plant.
Remote monitoring and status feedback of pump stations.
