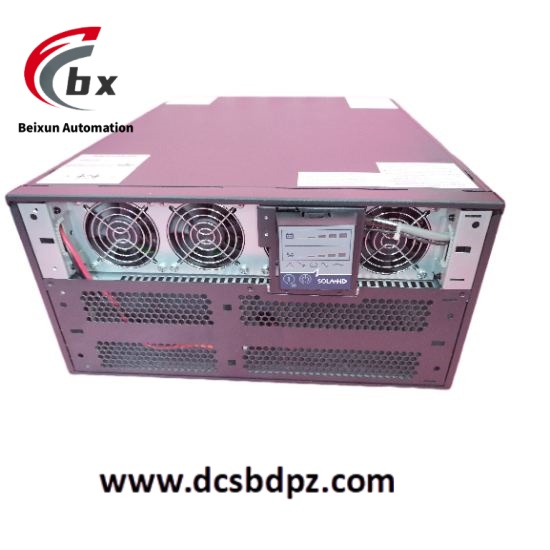

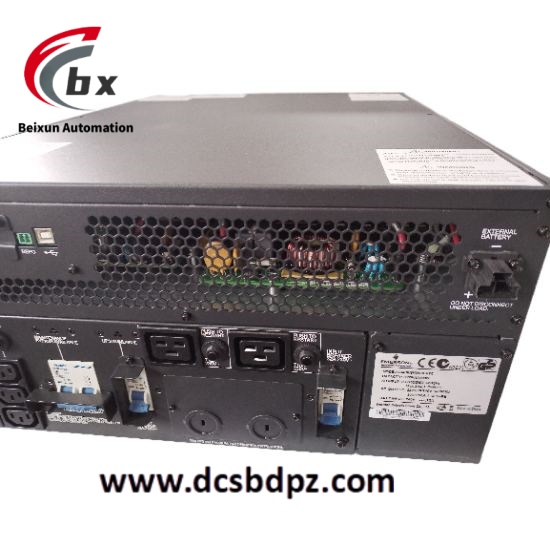

EMERSON S4K5U6K5W0BATC Power module

Specific parameters
Electrical specifications
Capacity: 6kVA (4800W active power)
Input voltage: 170-280V AC (wide input, supporting areas with large grid fluctuations)
Output voltage: 220V/230V/240V AC (configurable), frequency 50/60Hz (adaptive)
Battery type: Built in sealed lead-acid battery (VRLA), supports external battery pack for extended range
Charging time: approximately 8 hours (from 0% to 90%), supports fast charging mode
Communication and Monitoring
Interface: Standard RS232 and dry contacts, optional SNMP card or Modbus RTU module for remote monitoring and management
Monitoring function: Real time display of input/output voltage, current, battery status, load percentage and other parameters, supporting fault warning and remote power on/off
Machinery and Environment
Size: 432 × 131 × 533 mm (rack mounted), weight approximately 23 kg
Working temperature: 0 ° C to 40 ° C (the capacity will decrease linearly when the ambient temperature exceeds 30 ° C)
Protection level: IP20 (standard), customizable IP54 version for harsh environments
Certification: Complies with international standards such as CE, UL, T Ü V, etc., and has passed Class I, Division 2 hazardous environment certification (requires installation of explosion-proof kits)

Product Performance
High reliability design
Dual conversion topology: completely isolates power grid interference, with output waveform distortion<3% (THD), suitable for medical equipment and precision instruments that require extremely high power quality
Redundancy capability: Supports N+1 parallel redundancy, improves system availability, and reduces the risk of single point failures
Battery management: intelligent charging and discharging control, supporting automatic battery testing and life prediction, extending the service life of battery packs
Efficient and energy-saving
Operating efficiency: Under typical loads, the efficiency is>92%, and in ECO mode, the efficiency can reach 98%, reducing energy consumption
Harmonic suppression: Input harmonic distortion<5% (full load), in compliance with IEEE 519 standard, reducing pollution to the power grid
Intelligent management
Status monitoring: Real time monitoring of device health, historical events, and trend analysis through LCD screens or remote software
Fault self diagnosis: Built in intelligent diagnostic module, can quickly locate and prompt input abnormalities, battery faults, overheating and other issues

application area
Industrial Automation
Production line control: protect PLC, HMI, robots and other equipment from voltage fluctuations to ensure production continuity
Process monitoring: Provide stable power supply for DCS (distributed control system) and SCADA (data acquisition and monitoring system) to avoid data loss or system crashes
Data Center and Communication
Server room: Ensure the stability of power supply for servers, network switches, and storage devices, and support the 24/7 operation of critical business systems
Communication base station: In remote areas or areas with unstable power grids, it provides backup power for communication equipment to ensure uninterrupted signal transmission
Medical and Precision Instruments
Hospital operating room: providing pure electricity for life support equipment, anesthesia machines, etc., to prevent medical accidents caused by power outages
Laboratory equipment: protects precision instruments such as microscopes and centrifuges from voltage dips or interruptions
Transportation and Energy
Rail transit: providing backup power for signal systems and ticketing terminals to ensure the safe operation of subways and high-speed trains
New energy system: supports stable operation of photovoltaic inverters and energy storage systems, optimizes energy management efficiency
