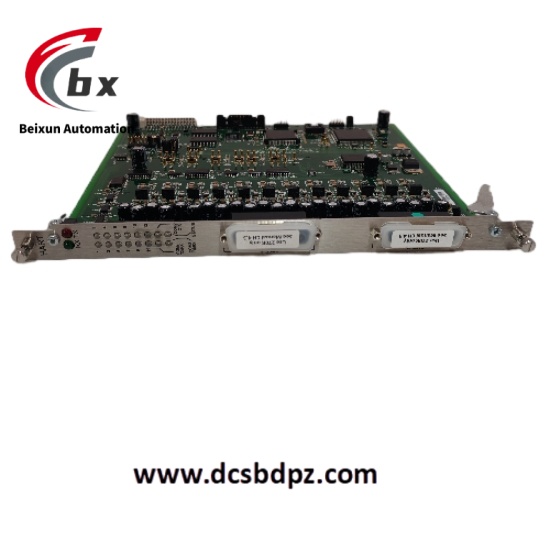

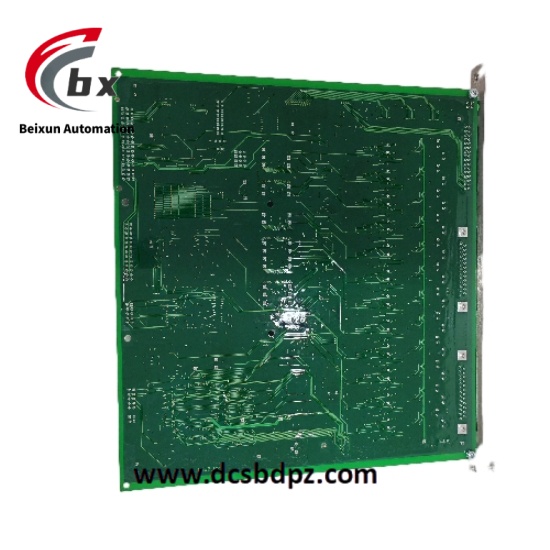

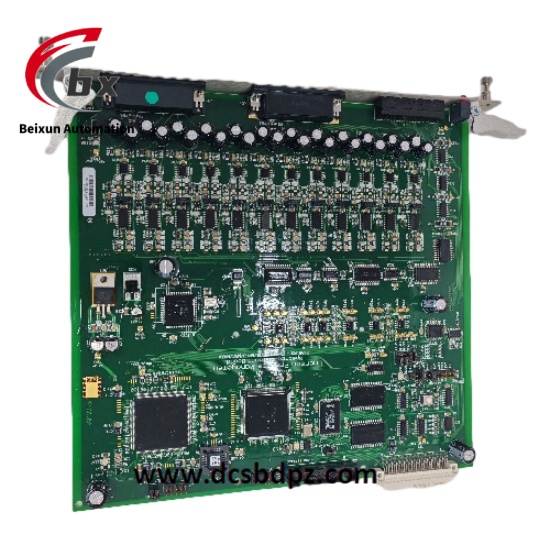

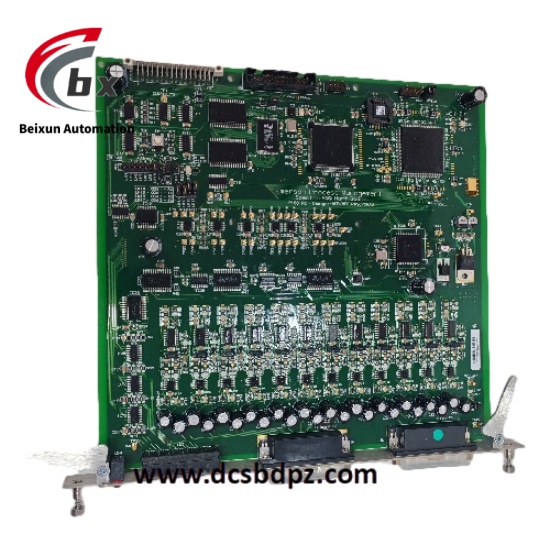

EMERSON P188.R2 High performance interface module

Specific Parameters

Electrical Parameters
Operating Voltage: 24V DC
Signal Types: Digital signals analog signals compatible
Protection Functions: Overcurrent protection overvoltage protection reverse connection protection
Interface Standard: Compatible with industrial control bus protocols
Environmental Parameters
Operating Temperature: -20°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing)
EMC Immunity: Compliant with industrial-grade EMI/EMC standards
Vibration Resistance: Meeting IEC 60068-2-6 industrial standards
Mechanical Parameters
Structural Design: Compact modular structure
Mounting Method: 35mm standard DIN rail mounting panel mounting compatible
Housing Material: UL 94 V-0 flame-retardant engineering plastic
Connector Type: High-density quick-plug interface

Product Performance

P188.R2 adopts multi-channel parallel transmission design with signal transmission delay ≤1ms, ensuring real-time control requirements. Optimized circuit topology achieves 99.99% signal transmission integrity, effectively reducing signal attenuation in industrial environments. Built-in multi-stage filtering circuits provide common mode rejection ratio ≥80dB, resisting high-frequency electromagnetic interference and voltage fluctuations.

Modular design supports hot-swap replacement without interrupting system operation during maintenance. It maintains stable performance within the wide temperature range of -20°C to 70°C with mean time between failures (MTBF) ≥80,000 hours. High compatibility design enables seamless connection with industrial equipment from different manufacturers, simplifying system integration processes.
