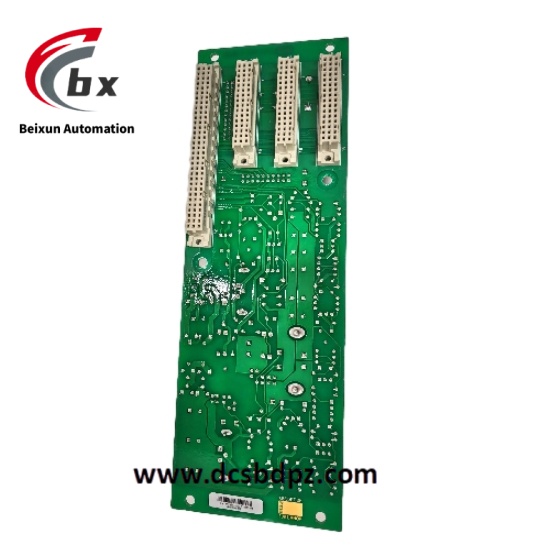

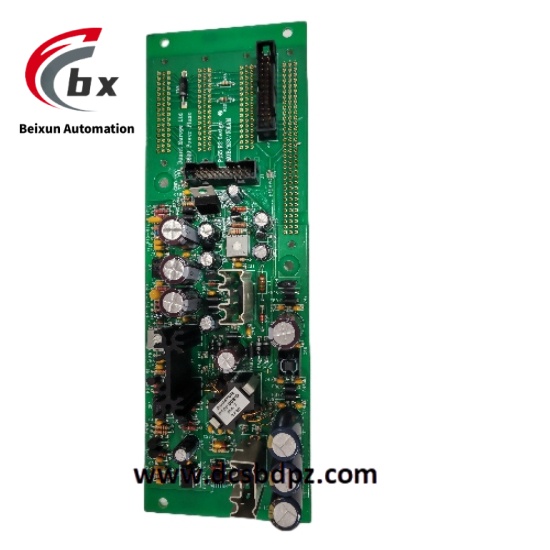

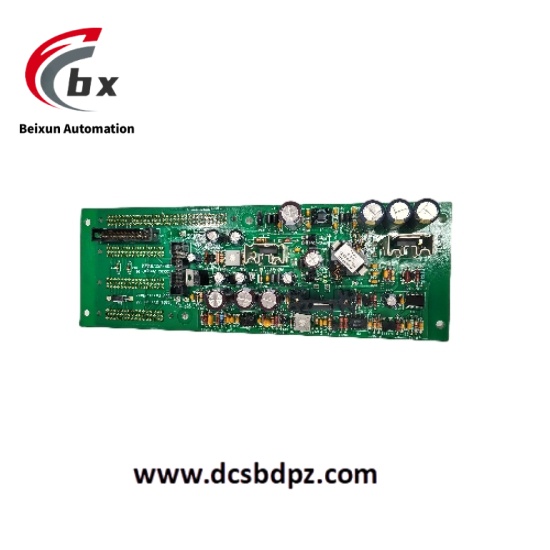

EMERSON P155.R2 High density connector board

Specific Parameters

Electrical Parameters
Operating Voltage: 24V DC
Signal Types: Compatible with multi-channel digital/analog signals
Protection Functions: Built-in overcurrent protection circuit overvoltage protection circuit grounding protection mechanism
Interface Standard: Compatible with industrial-grade signal transmission protocols
Environmental Parameters
Operating Temperature: -20°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing)
EMC Immunity: Compliant with IEC 61000-6-2 industrial immunity standards
Vibration Resistance: Meets industrial-grade equipment operation requirements
Mechanical Parameters
Structural Design: Compact modular structure
Mounting Method: Adaptable to standard cabinet installation supporting rail fixing
Connector Type: Multi-pin quick-plug connector
Housing Material: High-temperature resistant flame-retardant engineering plastic

Product Performance

P155.R2 adopts high-density signal layout design, with a single module supporting multi-channel parallel signal transmission and signal delay ≤1ms. Optimized circuit topology achieves 99.99% signal transmission integrity, effectively reducing signal attenuation in industrial environments. Built-in multi-stage filtering circuits provide common mode rejection ratio ≥80dB, resisting high-frequency electromagnetic interference and voltage fluctuations.

Modular design enables quick replacement and maintenance without affecting overall system operation. Flame-retardant housing is UL 94 V-0 certified, maintaining stable performance within -20°C to 70°C wide temperature range, with mean time between failures (MTBF) ≥80,000 hours, meeting industrial-grade long-cycle operation requirements.
