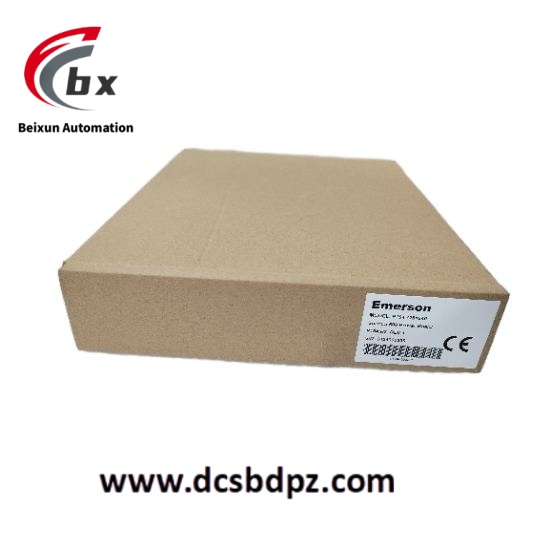

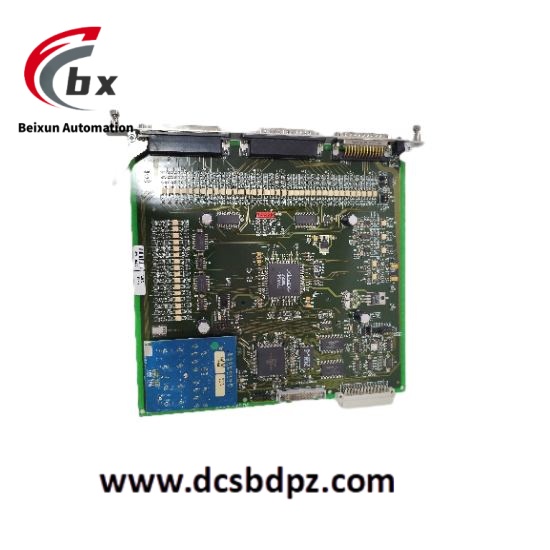

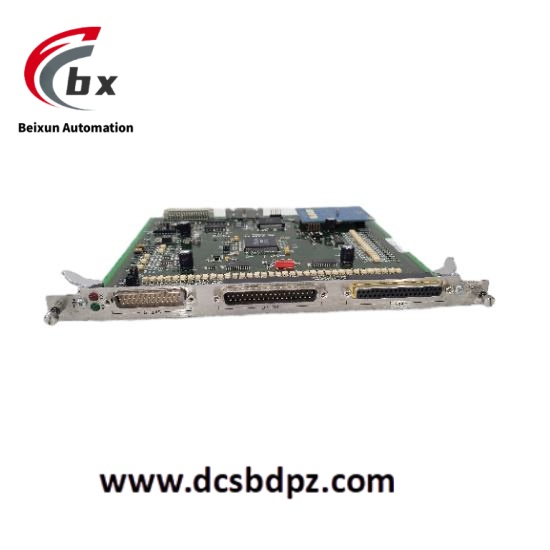

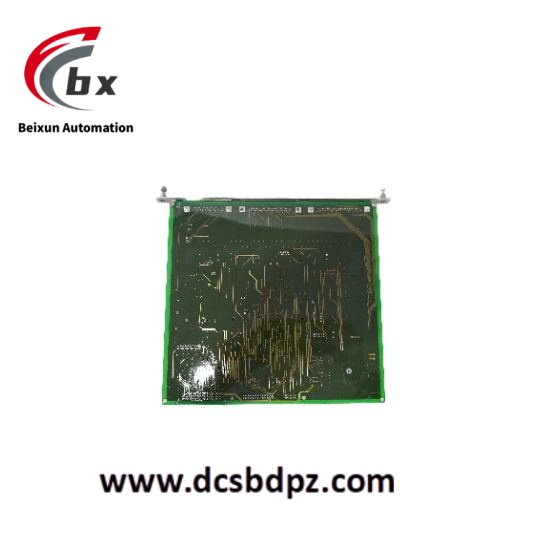

EMERSON P154 7281540 Multi functional input/output module

Specific parameters
Electrical specifications
Input signal: Supports 4-20mA analog signal superimposed with HART protocol, compatible with dry contacts and digital input.
Output signal: Standard 4-20mA analog signal, supports PROFIBUS DP or EtherNet/IP communication, can drive valve actuators or other devices.
Power requirement: 24V DC (from DeltaV system backplane), power consumption<5W.
Communication protocols: HART 7.0, Modbus RTU, PROFIBUS DP (transmission rate 12Mbps).
control and protection
Redundancy function: Supports dual power input, and the main circuit wiring inductance needs to be<23 μ H.
Diagnostic function: Built in LED status indicator light, real-time display of signal status, communication, and fault information, supporting warnings such as disconnection and overvoltage.
Surge protection: Integrated overvoltage and overcurrent protection circuits, response time<100 μ s.
Machinery and Environment
Size and weight: approximately 150 mm x 70 mm x 35 mm, with a weight of approximately 0.5 kg.
Working temperature: -40 ° C to+70 ° C, suitable for extreme industrial environments.
Storage temperature: -55 ° C to+85 ° C, humidity 5-95% (non condensing).
Protection level: IP20 (standard), customizable IP65 version.
Installation method: DIN rail installation, supports quick insertion and expansion.

Product Performance
High reliability design
Adopting industrial grade components and redundant circuit design, with an average time between failures (MTBF)>100000 hours, suitable for key industries such as petrochemicals and power.
Hazardous environment certification: Supports Class I, Division 2, and Zone 2, and can operate stably in explosive gas or dust environments.
Flexible scalability
Support multi module cascading and increase the number of signal channels (such as 8 and 16 channel configurations) through the DeltaV system expansion interface to meet large-scale process control requirements.
Intelligent management
Integrated status monitoring module, which can remotely read signal status, equipment health and fault information through HART or PROFIBUS DP protocol, and supports remote parameter configuration.
compatibility
Compatible with Emerson DeltaV system and third-party PLC/DCS equipment, it can seamlessly integrate into existing automation architectures.

application area
Industrial Automation
Process control: Connect sensors (such as pressure and temperature transmitters) with actuators (such as regulating valves) to achieve precise adjustment of the production process.
Equipment driver: Drive the pneumatic valves of filling equipment and conveyor lines to ensure the stability of the production process.
Electricity and Energy
Substation automation: Control the electric actuators of circuit breakers and isolating switches to achieve remote operation and fault warning.
New energy: Regulate the safety valves of photovoltaic inverters and energy storage systems, and support MPPT (Maximum Power Point Tracking) control.
Intelligent manufacturing
Robot integration: Connect the air valve of the robot’s end effector to optimize trajectory accuracy.
Intelligent production line: signal isolation and redundancy design ensure the reliability of valve response for high-speed sorting equipment.
Transportation and logistics
AGV navigation: Control the pneumatic brake valve of the automatic guided vehicle to improve positioning accuracy and safety.
Port machinery: hydraulic valves that drive cranes to achieve smooth operation of cargo loading and unloading.
