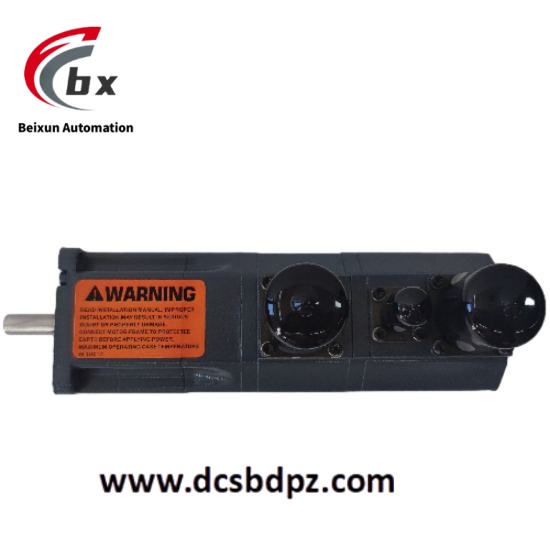

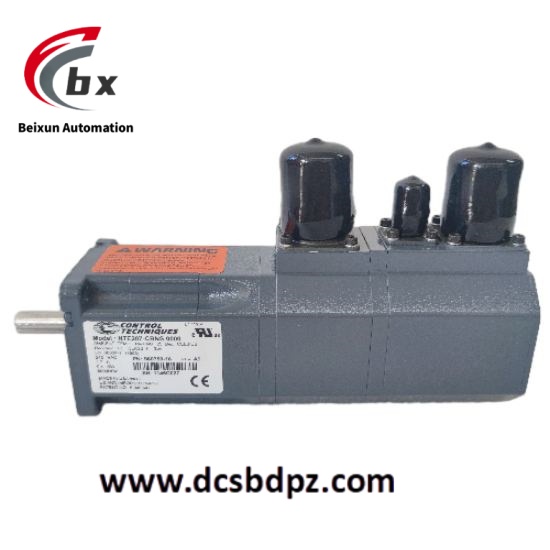

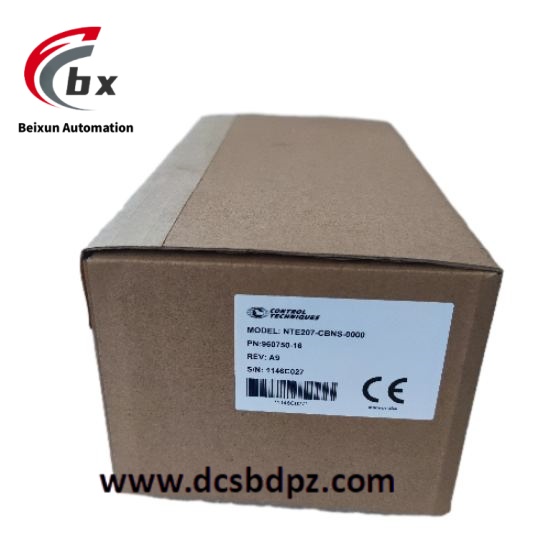

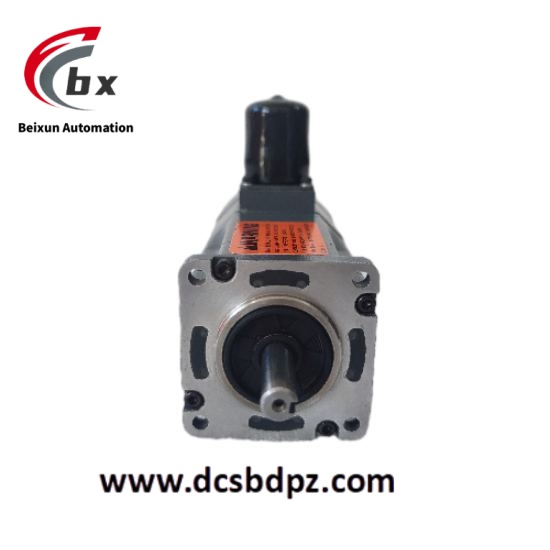

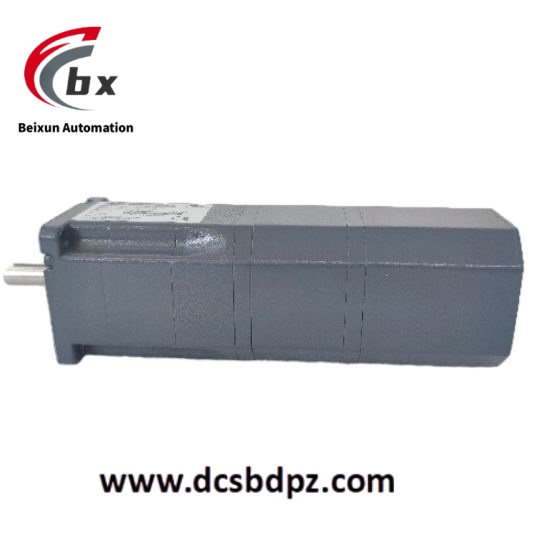

EMERSON NTE207-CBNS-0000 Servo motor module

Specific parameters
Electrical specifications
Rated voltage: 230V AC (single-phase), supports wide voltage input (190-264V AC).
Continuous torque: 7.5 lb · in (approximately 0.85 N · m), peak torque can reach 30 lb · in (approximately 3.4 N · m).
Maximum speed: 5000 rpm, suitable for high dynamic response requirements.
Braking system: Built in 24V DC electromagnetic brake, braking torque ≥ 1.5 N · m, response time<20 ms.
Encoder type: Supports multi turn absolute value encoders (such as Hiperface DSL), with a maximum resolution of 23 bits (8388608 pulses/rev).
Machinery and Environment
Size and weight: approximately 120 mm x 100 mm x 150 mm, weighing approximately 2.5 kg.
Protection level: IP65 (standard), customizable IP67 version, suitable for dust or humid environments.
Working temperature: -20 ℃ to+40 ℃, storage temperature: -40 ℃ to+85 ℃.
Installation method: Flange installation (standard IEC flange), supporting direct connection or gearbox transmission.
Communication protocol
Support: EtherCAT, PROFINET, Modbus RTU, CANopen.
Interface types: MS connector (motor side), DB9 interface (encoder signal).

Product Performance
high precision control
Adopting rare earth permanent magnet synchronous motor technology, it runs smoothly at low speeds with a positioning accuracy error of<± 0.01 °.
Support electronic gear ratio function, which can flexibly adapt to different mechanical transmission ratios (such as screw, belt, etc.).
High reliability design
Overload protection: Built in overcurrent and overheat protection circuits, response time<100 μ s.
Life characteristics: Bearing life>20000 hours (typical value), supports maintenance free operation.
Intelligent diagnosis
Integrated status monitoring module, which can remotely read motor temperature, load rate, and fault codes through communication protocol.
Preventive maintenance: supports predictive maintenance algorithms, which can provide warnings for bearing wear or winding aging.

application area
Industrial Automation
Robot integration: Drive SCARA robots and collaborative robot joints to achieve trajectory accuracy optimization.
Packaging machinery: Control the servo axis of high-speed sorting equipment to ensure precise positioning of materials.
Semiconductors and Electronics
Wafer processing: high-precision positioning system, supporting cleanroom environment (optional cleanroom version).
SMT surface mount machine: drives the mounting head to achieve micrometer level precision for component grasping and placement.
new energy
Lithium battery production: Control the servo system of the electrode coating machine and winding machine to improve production efficiency.
Photovoltaic equipment: Drive the servo motor of the tracking system to optimize the angle adjustment of the solar panel.
medical equipment
Imaging equipment: Drive the rotating worktable of CT and MRI equipment to ensure scanning accuracy.
Surgical robot: Provides precise joint drive and supports minimally invasive surgical procedures.
