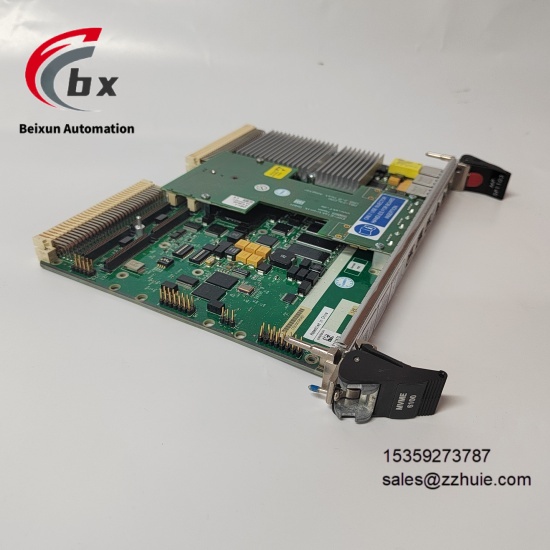

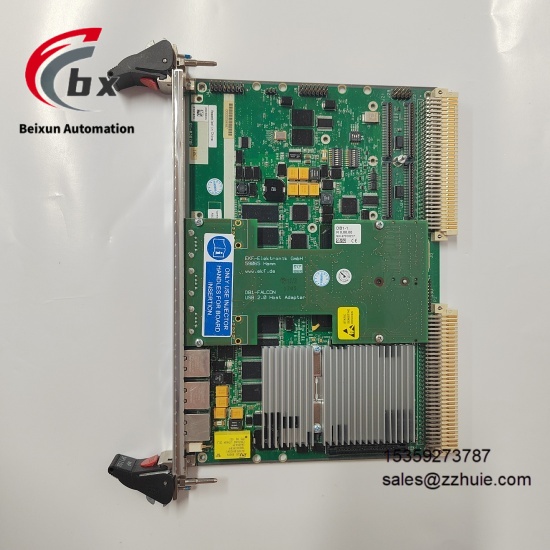

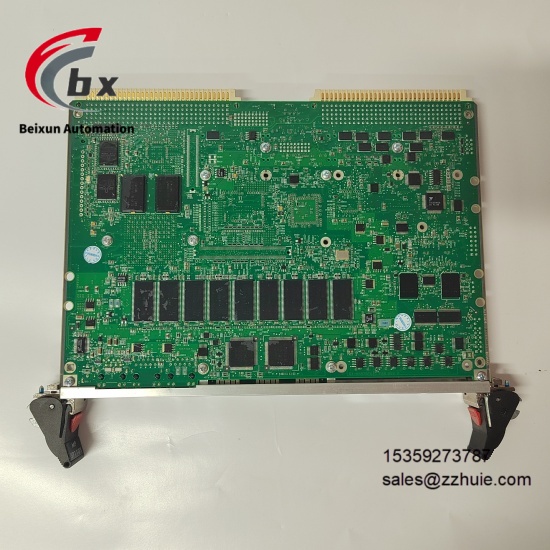

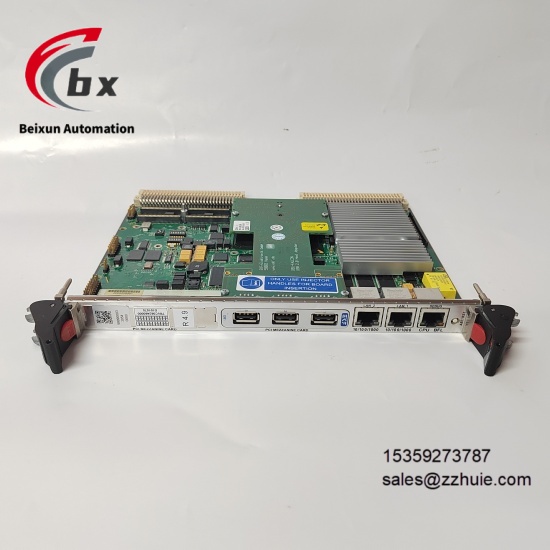

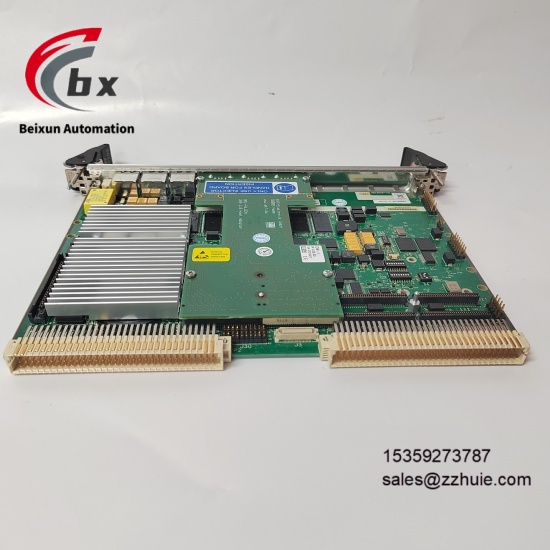

EMERSON MVME6100 Embedded single board computer
Specific Parameters
Brand EMERSON (formerly Motorola technology)
Product Series MVME Series VMEbus Single-Board Computer
Product Type High-Performance Embedded Single-Board Computer (SBC)
Model MVME6100
Processor PowerPC MPC7457, 1.267GHz clock speed, integrated 128-bit Altivec coprocessor
Memory Up to 1GB DDR ECC-protected memory, memory bus frequency 133MHz
Storage 128MB flash memory (divided into two 64MB banks), supporting SATA storage expansion
Bus Protocol 2ESST VMEbus protocol, bus transmission rate 320MB/s
Expansion Interfaces 2 x 33/66/100MHz PMC-X slots, supporting industry-standard expansion modules
Network Interfaces Dual Gigabit Ethernet interfaces, supporting static multicast filtering and port mirroring
Other Interfaces Serial port, USB, VGA, DVI, equipped with RTC NVRAM
Operating Voltage +3.3V or +5V wide voltage input, with overcurrent and overvoltage protection
Operating Temperature Range -40℃ to +85℃
Protection Level IP30, corrugated high-strength metal housing, fanless design
Dimensions Compliant with VMEbus standard 6U size
Weight Approximately 0.5kg
Certification RoHS compliant, compatible with ANSI 2ESST protocol standard
Supported Operating Systems VxWorks, Linux and other real-time operating systems
Product Performance
Equipped with a 1.267GHz PowerPC processor and Altivec coprocessor, it has strong parallel processing capabilities and can efficiently handle data-intensive application scenarios.
Adopts the 2ESST VMEbus protocol with a bus transmission rate of 320MB/s, and is equipped with a TSI148 interface chip, compatible with traditional VMEbus devices to achieve backward compatibility.
ECC-protected memory can effectively correct data errors, 128MB flash memory ensures stable storage of programs and data, and the fanless design avoids mechanical failure risks.
Dual Gigabit Ethernet interfaces support rate limiting and broadcast storm protection, and the 8K MAC address table ensures efficient data forwarding, adapting to high-end networking needs.
Wide operating temperature range of -40℃ to +85℃, IP30 protection level and anti-electromagnetic interference design, enabling long-term stable operation in extreme industrial and military environments.
Two PMC-X expansion slots support customized function expansion, compatible with various industrial standard modules, flexibly adapting to different application scenario requirements.
Supports multiple real-time operating systems, provides a complete board support package, and can be quickly integrated into existing control systems, reducing upgrade and migration costs.
Compact 6U structure design, highly integrating processor, memory, I/O and expansion interfaces, achieving full-function coverage in limited space.
