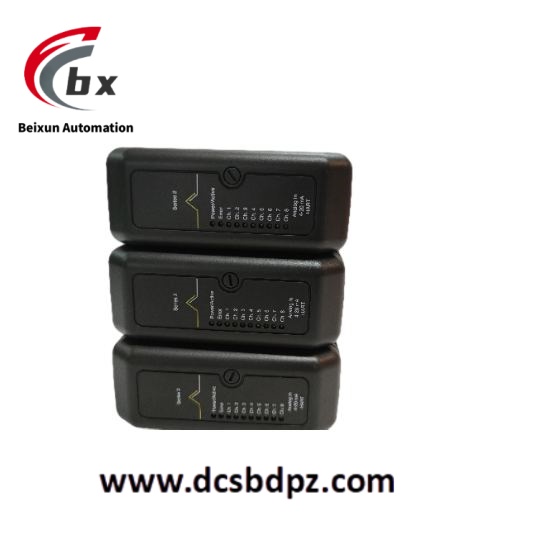

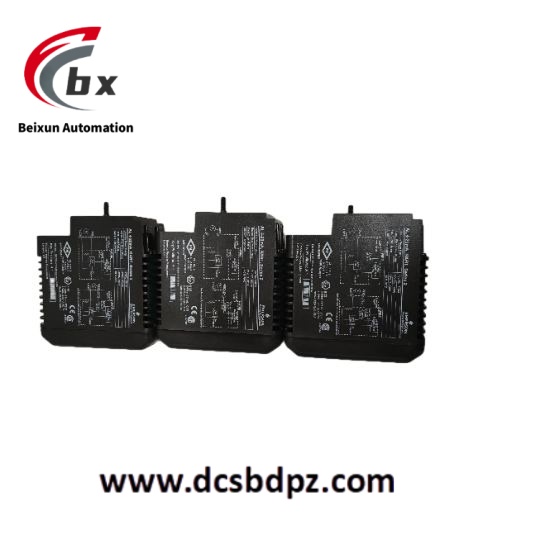

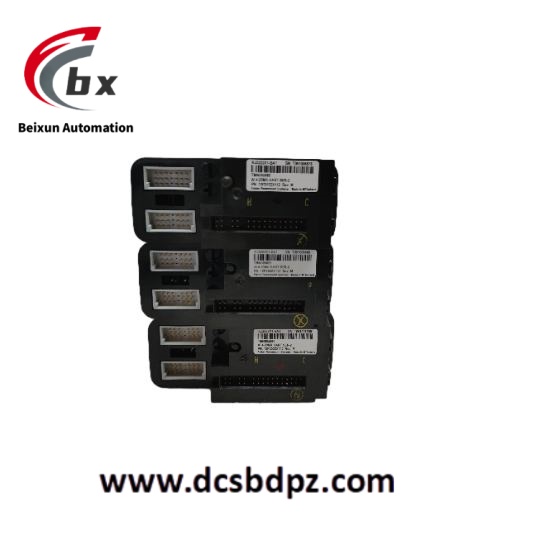

EMERSON KJ3222X1-BA1 Analog Input Module

Specific parameters
signal type
Input channel: 2-channel differential analog input, supporting 4-20 mA signal (compatible with HART protocol).
Signal range: ± 10 V DC (optional), compatible with various industrial sensors such as pressure transmitters and temperature sensors.
Accuracy and Resolution
Measurement accuracy: ± 0.1% full scale (FS), meeting the requirements of high-precision process control.
Resolution: 16 bits, ensuring the delicacy of signal conversion.
Power supply and power consumption
Bus power supply: 15 V DC (from DeltaV system backplane).
On site power supply: 24 V DC (supplying power to two-wire transmitters).
Power consumption: ≤ 5 W (typical value).
Environmental parameters
Working temperature: -20 ℃ to+60 ℃ (in accordance with industrial standards).
Humidity: 5% -95% without condensation.
Vibration/Shock: Complies with ISA-S71.04 standard and is suitable for harsh industrial environments.
physical property
Size: Standard DeltaV I/O module size (approximately 100mm x 150mm).
Terminal type: Supports KJ4001X1-CA1 standard terminal block, compatible with multiple on-site wiring methods.

Product Performance
Redundant design
Dual channel architecture: Two independent channels are redundant to each other, and when either channel fails, the other channel automatically takes over to ensure uninterrupted signal acquisition.
Fault diagnosis: Real time monitoring of channel status, feedback of fault information through LED indicator lights and system software.
HART protocol support
Bidirectional communication: Sensor parameters (such as range and damping time) can be remotely configured through the HART protocol, and device diagnostic information (such as sensor drift and line faults) can be read.
Compatibility: Compatible with mainstream HART devices and supports seamless integration with DeltaV systems.
anti-interference ability
Optoelectronic isolation: The input signal is completely isolated from the system bus, effectively preventing ground potential interference and surge impact.
Filtering technology: Built in digital filter to suppress high-frequency noise and ensure signal stability.
flexible configuration
Multi range support: Different signal types (such as 4-20 mA, ± 10 V) can be configured through software to adapt to various industrial sensors.
Hot swappable function: Supports live plugging and unplugging, without the need to shut down during maintenance, reducing system downtime.

application area
Energy and Electricity
Thermal power generation: Monitor key parameters such as boiler steam pressure and turbine vibration to optimize unit operating efficiency.
New energy: Temperature monitoring of wind farm inverters and status collection of solar power plant inverters.
Chemical and Pharmaceutical Industry
Reactor control: Real time monitoring of temperature, pressure, and liquid level to ensure stable process parameters.
Clean room environment: Collect signals such as temperature, humidity, and pressure difference to meet GMP standards.
Metallurgy and Mining
Blast furnace automation: monitoring the temperature and gas composition inside the furnace to achieve precise control.
Mining machinery: Collect motor current and hydraulic system pressure to prevent equipment failures.
water treatment
Wastewater treatment: Monitor pH value, turbidity, and flow rate, optimize dosing system and pump control.
Desalination of seawater: Real time monitoring of reverse osmosis membrane pressure and water quality parameters to ensure stable system operation.
