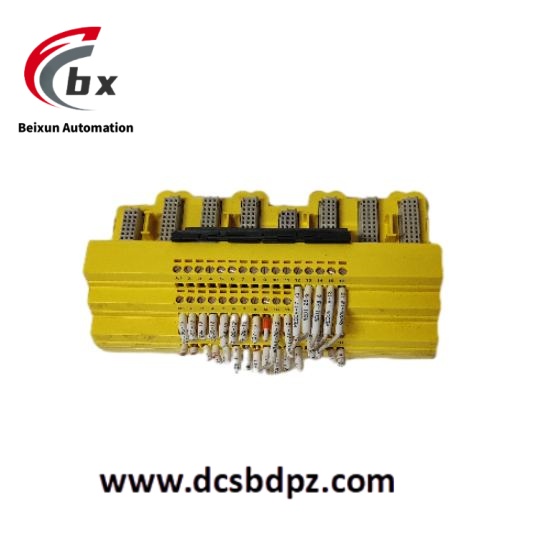

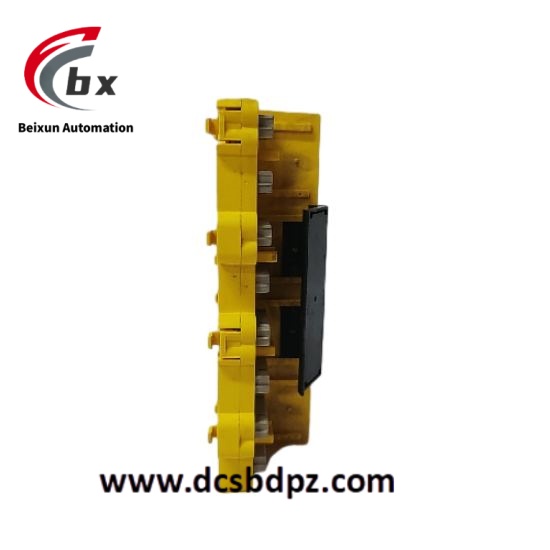

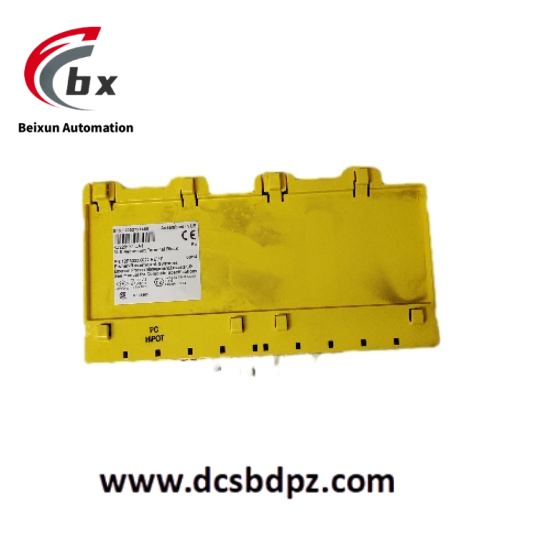

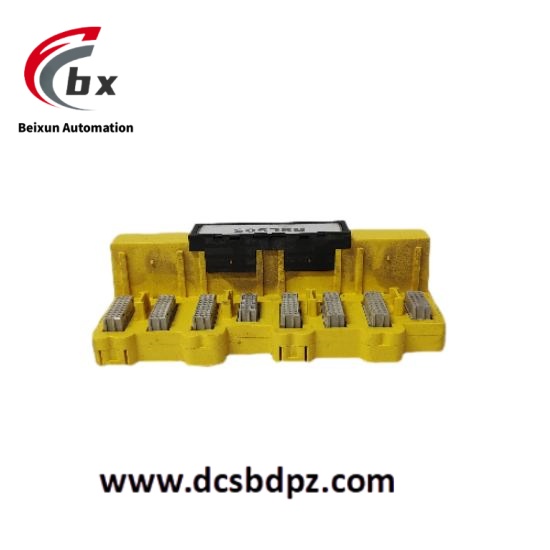

EMERSON KJ2201X1-JA1 Redundant SLS terminal block

Specific parameters
Electrical specifications
Voltage rating: 30 V DC (isolated between channels)
Current rating:
30 mA/channel (between A-B terminals, used for low-power signals)
1 A/channel (between A-C terminals, used to drive loads)
Signal type: Supports analog signals (4-20 mA, 0-10 V), digital signals (dry contacts, TTL levels), and pulse signals.
Isolation level: The isolation voltage between channels is ≥ 500 V DC, which meets industrial anti-interference standards.
control and protection
Redundancy function: Supports dual power input and channel level redundancy configuration to ensure the continuity of critical signals.
Diagnostic function: Built in LED status indicator light, real-time display of power, communication, and signal status, supporting fault code output.
Surge protection: Integrated overvoltage and overcurrent protection circuits, response time<100 μ s.
Machinery and Environment
Size and weight: approximately 100 mm x 70 mm x 25 mm, with a weight of approximately 0.3 kg.
Working temperature: -40 ° C to+70 ° C, suitable for extreme industrial environments.
Protection level: IP20 (standard), customizable IP65 version to adapt to dust or humid environments.

Product Performance
High reliability design
Adopting industrial grade components and redundant circuit design, with an average time between failures (MTBF)>100000 hours, suitable for key industries such as petrochemicals and power.
Flexible scalability
Support multi module cascading and increase the number of signal channels (such as 8-channel and 16 channel configurations) through expansion interfaces to meet complex system requirements.
Intelligent management
Integrated status monitoring module, which can remotely read signal values, temperature, and fault information through Modbus RTU or Profibus DP protocol, supporting remote parameter configuration.
compatibility
Compatible with Emerson DeltaV system and third-party PLC/DCS equipment, it can seamlessly integrate into existing automation architectures.

application area
Industrial Automation
Process control: Connect pressure and temperature sensors to the DeltaV system to achieve real-time monitoring and adjustment of petrochemical reaction vessels.
Equipment driver: drives actuators such as solenoid valves and motors for precise control of filling equipment and conveyor lines.
Electricity and Energy
Substation automation: Collecting circuit breaker status signals to achieve remote monitoring and fault warning.
New energy: Photovoltaic inverter signal conditioning, supporting MPPT (Maximum Power Point Tracking) control.
Intelligent manufacturing
Robot integration: Connect robot joint sensors and controllers to optimize trajectory accuracy.
Intelligent production line: signal isolation and redundancy design ensure the stability of high-speed sorting equipment.
Transportation and logistics
AGV navigation: Processing laser radar and encoder signals to improve the positioning accuracy of automatic guided vehicles.
Port machinery: Control the frequency converter of the crane to achieve smooth operation of cargo loading and unloading.
