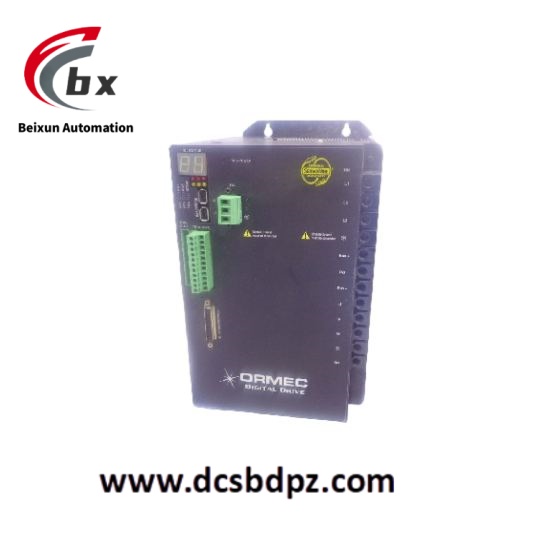

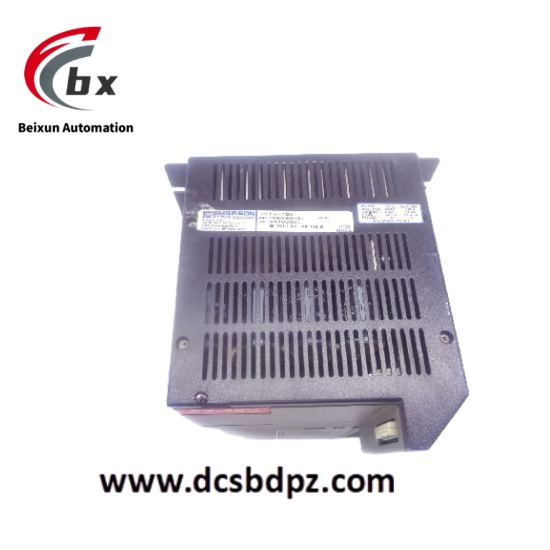

EMERSON FX-490 960120-01 High precision positioning servo driver

Specific parameters
Power specifications
Input voltage: 240V AC (single-phase or three-phase), supporting a wide voltage range (90-264V AC), suitable for different industrial environments.
Auxiliary logic power supply: 96-264V AC (single-phase), used for controlling circuit power supply.
Power output:
Continuous output current: 9.6A
Peak output current: 14A
Suitable motor torque range: 0-55 lb in (6.21 Nm).
control performance
Speed range: maximum 3000 rpm, speed resolution 0.01 rpm.
Position resolution: 0.001 degrees, supporting micrometer level positioning accuracy.
Acceleration capability: 1000 rad/s ², response time less than 1ms.
I/O and Communication
Digital I/O: Standard configuration includes 8 inputs and 4 outputs (10-30V DC), and supports expanding modules to increase the number of I/O (such as 8 inputs+4 outputs).
Communication interface: RS-232 (with a maximum baud rate of 19.2Kbaud), supporting daisy chain connection to multiple drives; Optional Modbus RTU protocol module.
Machinery and Environment
Size and weight: approximately 100mm x 70mm x 25mm, weighing approximately 1.36 kg (3 lb).
Working temperature: -20 ° C to 65 ° C, protection level IP20, suitable for industrial dust environment.

Product Performance
high precision control
The fully digital design supports position, speed, and torque closed-loop control, achieving micrometer level positioning accuracy and suitable for precision scenarios such as semiconductor manufacturing and electronic assembly.
Flexible operating mode
Supports multiple modes such as overall locator, simulated speed, simulated torque, pulse follower, etc. The motion curve (linear or modified sine) can be configured through programming software (such as PCXWin).
Diagnosis and reliability
LED status display: Real time display of operating status, fault codes, and diagnostic information, supporting quick troubleshooting.
Protection functions: overcurrent, overvoltage, overheating protection, and motor stall detection to ensure system stability.
integrated design
Integrating position controller, servo amplifier, and power module into one reduces system complexity and lowers wiring costs. Support extended application modules (such as phase synchronization and drum control) to meet complex process requirements.

application area
Industrial Automation
Packaging machinery: precise control of material conveying, label attachment, and packaging molding to improve production efficiency.
Electronic manufacturing: semiconductor wafer handling, component picking and placement, meeting high-precision requirements.
Robots and robotic arms
Control joint motion, achieve trajectory tracking and action execution, suitable for collaborative robots and industrial robotic arms.
Material handling and warehousing
Drive AGV (Automated Guided Vehicle), stacker crane and other equipment to achieve fast and accurate positioning and transportation of goods.
Printing and Textile
Control the synchronization of printing press cylinders and adjust the tension of textile machinery to ensure consistent product quality.
Food and Medicine
Meet hygiene requirements and be used in scenarios such as filling equipment and drug sorting that are sensitive to cleanliness and accuracy.
