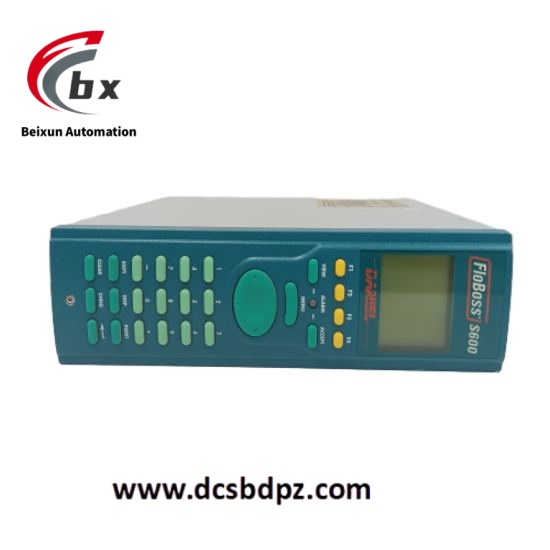

EMERSON FLOBOSS S600/FLOBOSS S600+ Installation type flow computer

EMERSON FLOBOSS S600/FLOBOSS S600+ Installation type flow computer

EMERSON FLOBOSS S600 Specific Parameters
Processor: 50MHz Intel 486 microprocessor and digital coprocessor.
Display screen: A 20 character x 8-line display screen.
Communication interface: One LAN port is used for Ethernet 10BaseT connection (using TCP/IP protocol), and an optional second Ethernet port can be added; 12 channel HART board for implementing HART communication; Two configurable EIA -232 (RS -232) serial ports; Three EIA -422/485 (RS-422/RS-485) serial ports (up to 38400 bps baud); A dedicated configuration port is used to connect to the Config 600 configuration software.
Product Performance
Strong computing power: using high-performance Intel 486 microprocessors and digital coprocessors, providing powerful computing power to ensure the accuracy of measurement data.
Good scalability: The modular design allows for expansion, and the same I/O board can support gas and liquid metering, connect multiple types of flow meters, support up to six circuits and two manifolds, reducing maintenance and support costs.
Powerful communication function: equipped with multiple communication interfaces, compact structure, and remote operation.
User friendly interface: equipped with a 20 character x 8-line display screen, easy to read information, can interact through function keys, directional keys, and numerical input, and can also be configured through the PC interface’s Config 600 software. Built in API and ISO measurement standards ensure compliance and standardization of measurement results.

Application areas: Mainly used in the oil and gas industry, such as trade handover, transmission system monitoring, batch control, instrument calibration, etc., it can provide reliable solutions for related measurement tasks of oil and gas.

EMERSON FLOBOSS S600+specific parameters
Communication parameters: Two 10/100Base-T Ethernet ports; Two configurable EIA -232 (RS -232) serial ports; Seven EIA -422/485 (RS-422/RS-485) serial ports (up to 57600 bps baud); USB 2.0 port; A dedicated configuration port; Use the optional 12 channel HART module to support HART communication (up to 50 transmitters).
Physical parameters: Display keyboard molding 85mm width x 269mm height x 28mm depth; Shell width of 84.5mm, height of 270mm, and depth of 303.8mm; Panel incision 66mm width x 150mm height; Weight 4.8kg.
Environmental parameters: The working temperature range is -10 ℃ to+60 ℃.
