EMERSON EPRO PR9376010-011 9200-00097 Speed and Keyphase Sensor Kit

Specific Parameters

Brand EMERSON (EPRO Series, Made in Germany)

Product Series PR9376 Hall Effect Sensor Series

Product Type Speed and Keyphasor Sensor Kit (Including Sensor and Matching Components)

Model PR9376 010-011 (Sensor) + 9200-00097 (Matching Components)

Operating Principle Hall Effect, Non-contact Detection

Supply Voltage 10-30V DC, Maximum Operating Current 25mA

Measurement Frequency Range 0-12kHz (Corresponding to Maximum Speed 720000 RPM)

Pulse Characteristics 1 AC cycle pulse per revolution/tooth, Rise/Fall Time 1μs

Output Voltage At 12V DC/100kΩ load, High Level ＞10V, Low Level ＜1V

Permissible Air Gap 1.0mm for Module 1, 1.5mm for Module ≥2

Compatible Measured Objects Ferromagnetic materials (soft iron or non-stainless steel), spur gears and involute gears with module ≥1

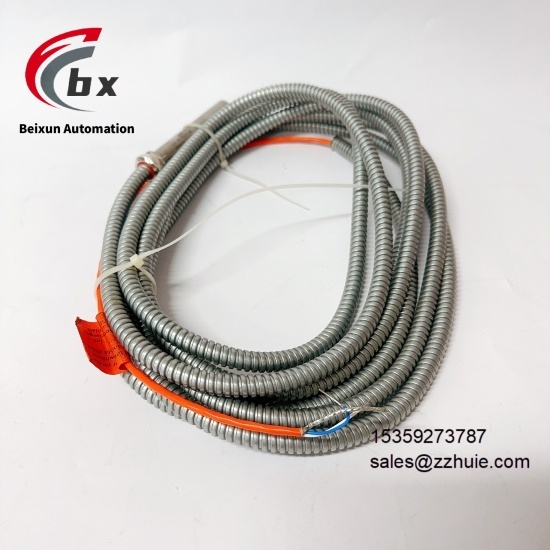

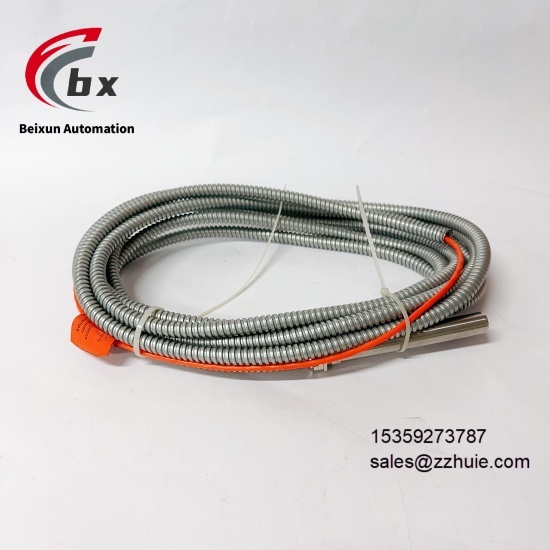

Cable Specification 5m armored cable, PTFE insulation material

Installation Specification M18×1.5 mounting thread, matching installation kit

Operating Temperature Range -25℃ to 100℃

Storage Temperature Range -40℃ to 100℃

Protection Level IP67 (Sensor Body)

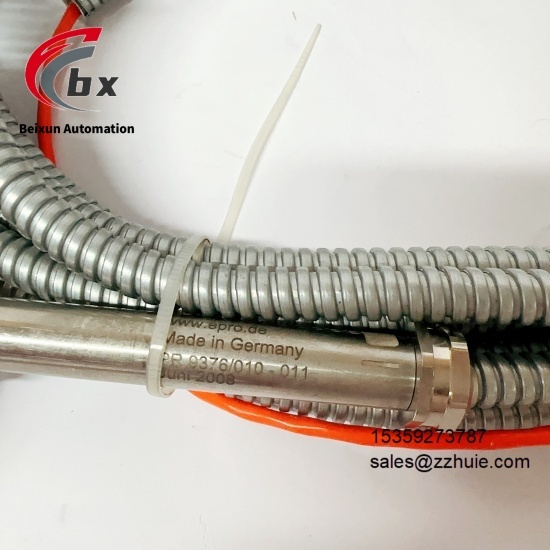

Material Sensor housing stainless steel, probe head reinforced with synthetic resin and brass tube

Sensor Weight 210 grams for sensor only (excluding cable and accessories)

Certification Compliant with CE 2014/30/EU, 2014/35/EU, 2011/65/EU Standards

Product Performance

Adopts differential Hall effect element design with DSP digital signal processing technology, featuring high measurement resolution, which can output stable waveforms even under low-speed conditions, ensuring accurate speed and phase data.

Ultra-fast pulse rise/fall time of 1μs can accurately capture dynamic signals of high-speed rotating machinery, adapting to full frequency range measurement requirements from 0 to 12kHz.

IP67 high protection level and fully sealed packaging process, combined with armored cable, can withstand high temperature, humidity, oil pollution and strong electromagnetic interference, adapting to harsh industrial working conditions.

Wide voltage power supply design is compatible with 10-30V DC industrial power supply, with short-term short-circuit protection function, ensuring high operational safety and compatibility.

Factory pre-calibrated linearly, only need to adjust the air gap for on-site use without additional calibration, enabling convenient and efficient installation and commissioning.

Seamlessly compatible with EPRO MMS series monitoring systems, supporting multi-functional expansion such as speed monitoring, direction recognition and standstill detection, and facilitating equipment fault diagnosis.

Stainless steel housing with solid structure, high mechanical strength, excellent vibration and shock resistance, enabling long-term stable operation in heavy rotating machinery.

Output signals can be directly connected to DCS, PLC and vibration analysis systems, providing accurate timing reference for equipment overspeed protection and dynamic balance adjustment.
