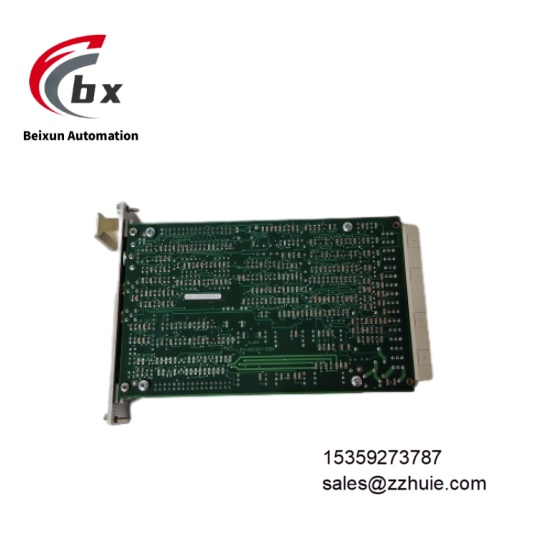

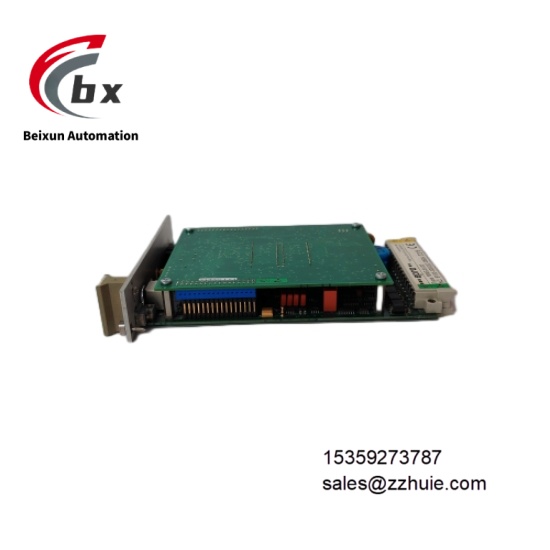

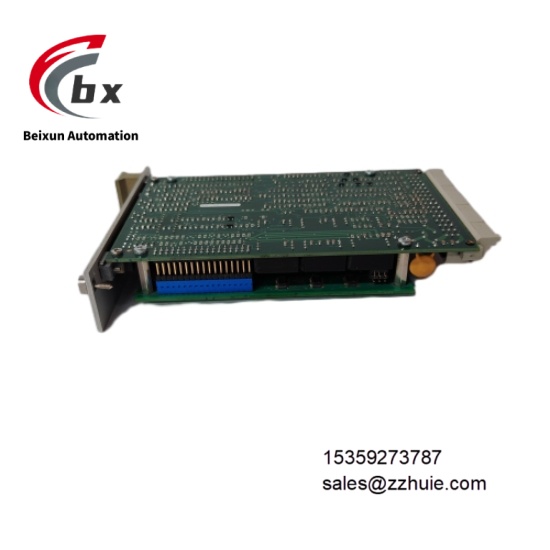

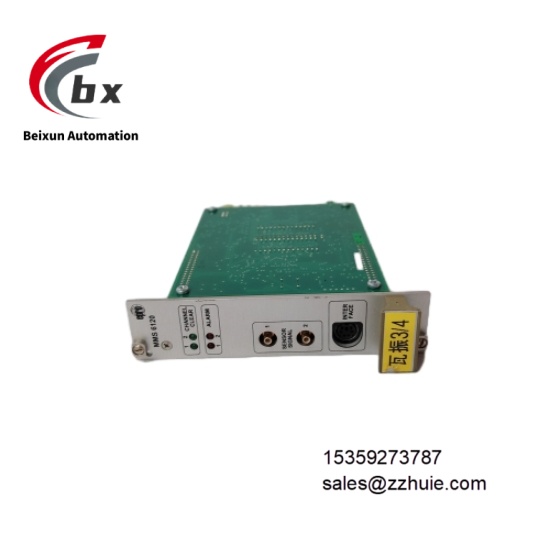

EMERSON EPRO MMS6120 9100-00002C-08 Bearing vibration monitoring module
Specific Parameters
Brand EMERSON (EPRO Series, Made in Germany)
Product Series MMS 6000 Series
Product Type Dual-channel Bearing Vibration Monitoring Module
Model MMS6120 9100-00002C-08
Number of Channels 2 Independent Monitoring Channels
Compatible Sensors PR926X Series Electrodynamic Speed Sensors, PR6422-PR6426 Series Eddy Current Sensors
Input Voltage Range -5V DC to +15V DC
Operating Voltage 24V DC±20%
Measurement Range Vibration Velocity 5-100mm/s (VRMS), Corresponding Displacement ±25-±500μm
Frequency Range Standard 10-1000Hz (Refer to VDI 2056), Optional 5-1600Hz
Measurement Accuracy ±0.5% Full Scale
Analog Output 2 Independent 4-20mA/0-10V Outputs, Load ≤500Ω
Digital Interfaces RS-485 (Modbus RTU), PROFIBUS-DP
Relay Output 2 Programmable Alarm Relays, Contact Capacity 2A/240Vac
Keyphasor Pulse Input Minimum Pulse Duration 10μs, Input Impedance ≥30kΩ
Lifting Coil Current 0-8mA Adjustable (Step 40μA) for Mechanical Sag Compensation
Operating Temperature Range -20℃-70℃
Storage Temperature Range -40℃-85℃
Relative Humidity 5%-95% Non-condensing
Dimensions 120mm×75mm×45mm (L×W×H)
Weight Approximately 0.3kg
Certification Compliant with VDI 2056, DIN 45666, ISO 3945 Standards, CE Certification
Protection Features Modular Aluminum Housing, Vibration and Shock Resistant, Support Hot Swapping
Product Performance
Dual-channel independent monitoring design, capable of connecting two sets of sensors for parallel analysis, greatly improving the coverage and efficiency of rotating equipment vibration monitoring
Adopts 16-bit ADC high-precision analog-to-digital conversion, with measurement accuracy up to ±0.5% full scale, excellent data repeatability, suitable for micrometer-level vibration detection needs
Wide frequency range covering 5-1600Hz, taking into account low-frequency shaft vibration and high-frequency bearing fault characteristic signals, which can accurately capture potential equipment fault hazards
Integrates multiple types of signal output and communication interfaces, supporting standard analog signals, alarm relays and fieldbus communication, seamlessly adapting to DCS and PLC systems
Built-in complete self-test function and password protection mechanism, which can real-time monitor the working status of modules and sensors, and feed back fault information in a timely manner, improving system reliability
Supports on-site programmability, parameter configuration such as range, alarm point and filter can be completed through front panel buttons or software tools without disassembly, facilitating operation and maintenance
Wide operating temperature range of -20℃-70℃ combined with modular aluminum housing design, strong vibration and shock resistance, adaptable to complex and harsh industrial working conditions
Supports redundant power input and hot-swapping operation, ensuring that monitoring is not interrupted during equipment maintenance and replacement, and guaranteeing continuous system operation
