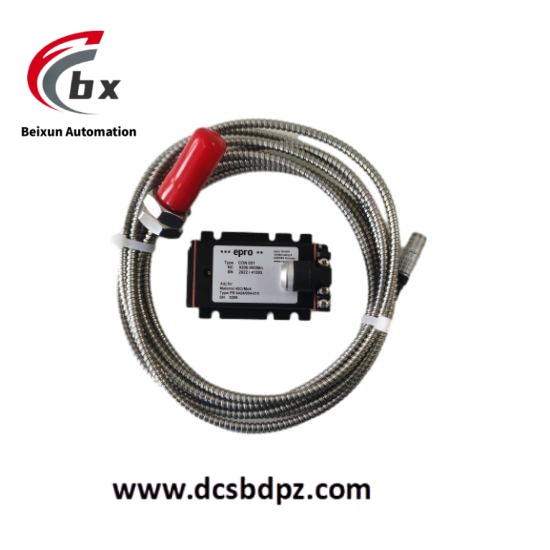

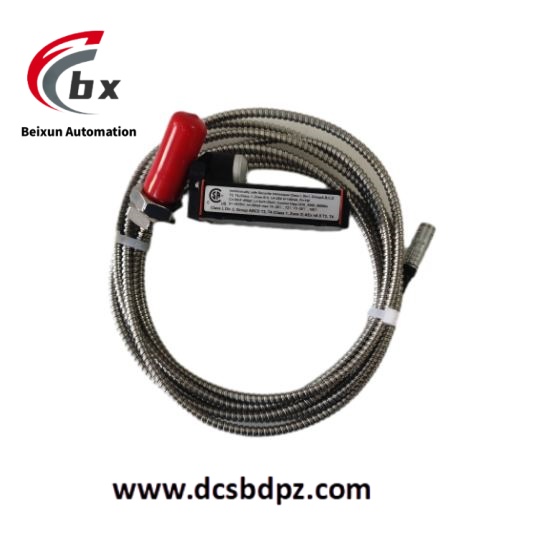

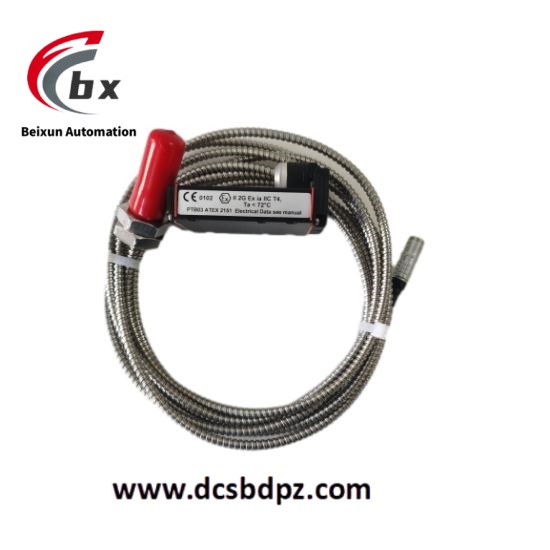

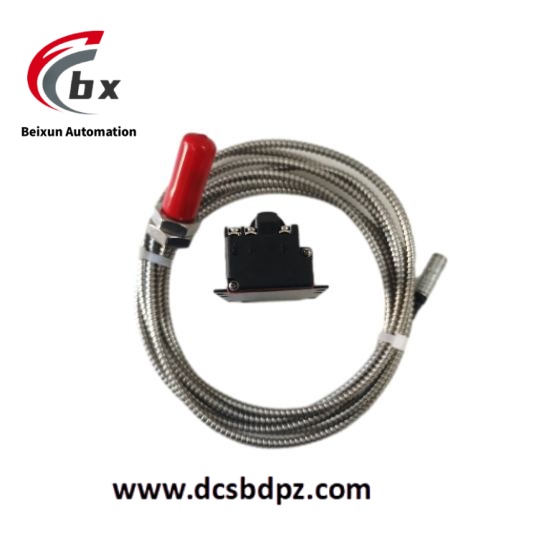

EMERSON CON021 Eddy current signal converter

EMERSON CON021 Eddy current signal converter

Specific parameters
dynamics
Frequency range (-3dB): 0 to 20000Hz.
Rise time:<15 µ s.
Compatibility: Suitable for sensors such as PR6422, PR6423, PR6424, PR6425, PR6426, PR6453, etc.
Environmental parameters
Working temperature range: -30 ° C to 100 ° C (-22 ° F to 212 ° F).
Anti impact and vibration: 5g @ 60Hz @ 25 ° C (77 ° F).
Protection level: IP20.
Power and Electrical
Power supply voltage range: -23V to -32V (output range -4V to -20V); -21V to -32V (output range -2V to -18V).
physical property
Shell material: LMG Si 0.5 F22.
Weight:~120 grams (4.24 ounces).
Installation method: 4 M5x20 screws (provided with the goods).
Connection method: The sensor adopts a self-locking LEMO plug, and the power/output adopts a screw terminal type (maximum 1.5mm ² wire).

Product Performance
High precision signal conversion: It can accurately convert the analog signal of eddy current sensors into a format suitable for subsequent processing, ensuring the accuracy of measurement and monitoring.
Wide frequency response: within the frequency range of 0 to 20000Hz, it can adapt to various signal inputs of different frequencies and meet the signal processing needs of various industrial application scenarios.
Quick response: With a rise time of less than 15 µ s, it can quickly track changes in the signal and reflect the status changes of the measured object in a timely manner, which is very important for monitoring and controlling dynamic processes.
High reliability: With a wide working temperature range, good shock and vibration resistance, and a certain level of protection, it can work stably in harsh industrial environments, reduce the probability of failure, and lower maintenance costs.
Easy to install and connect: Using standard screw installation methods and common connection plugs and terminals, it is convenient to connect and integrate with various eddy current sensors and other industrial equipment.
