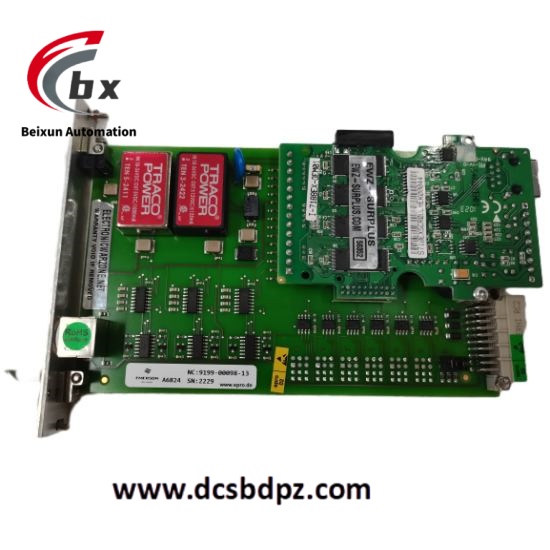

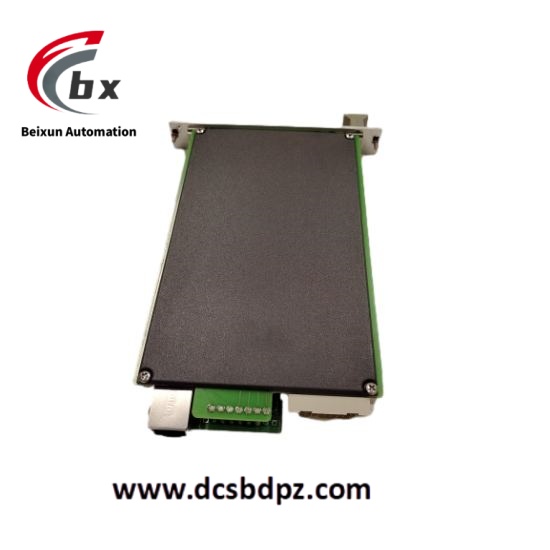

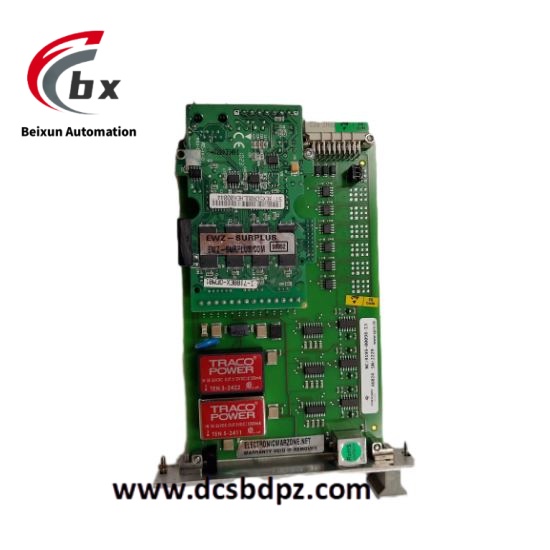

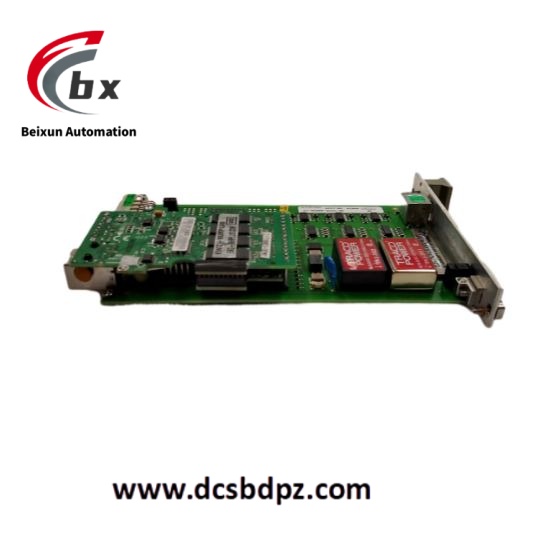

EMERSON A6824/A6824R ModBus and Rack Interface Module
Specific parameters
Size: A6824 is a 3U size, 1-slot plug-in module, with dimensions of approximately 19.98mm (width) x 128.4mm (height) x 160mm (length); A6824 is a 6TE wide module; A6824R is a 4TE wide module with a width of 19.98mm.
Weight: A6824R has a net weight of approximately 320 grams and a gross weight of approximately 450 grams.
Communication protocol: Supports ModBus TCP/IP and ModBus RTU (serial), with a ModBus RTU baud rate of 19.2kbaud, 8 data bits, even parity, and 1 stop bit; ModBus Ethernet uses RJ 45 socket and 10BaseT.
Working temperature: 0 ° C-65 ° C.
Storage temperature: -30 ° C-85 ° C.
Relative humidity: 5% -95%, no condensation.
Product Performance
High reliability: Compliant with API 670 standard, hot swappable module with self checking function, including monitoring hardware, power input, and hardware temperature, ensuring stable operation in industrial environments.
Data processing and transmission capability: It can read parameters from all AMS 6500 modules and output them through ModBus TCP/IP and/or ModBus RTU, with high data transmission speed and reliability. It can connect up to 8 A6000 displays simultaneously, and each RS 485 bus can serve up to 8 stations, achieving centralized monitoring and management of data and improving data transmission efficiency.
User configuration protection: Password protected user configuration ensures the security and stability of system settings.
Compatibility: A6824 module can be used for multiple 19 inch racks, and A6824R is suitable for IMR6500 series 19 inch racks.
