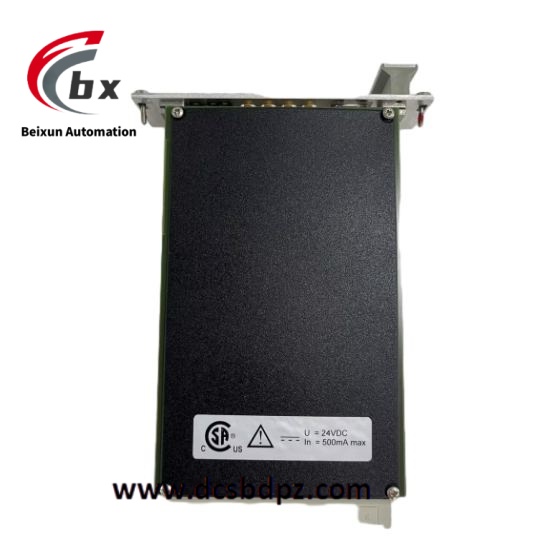

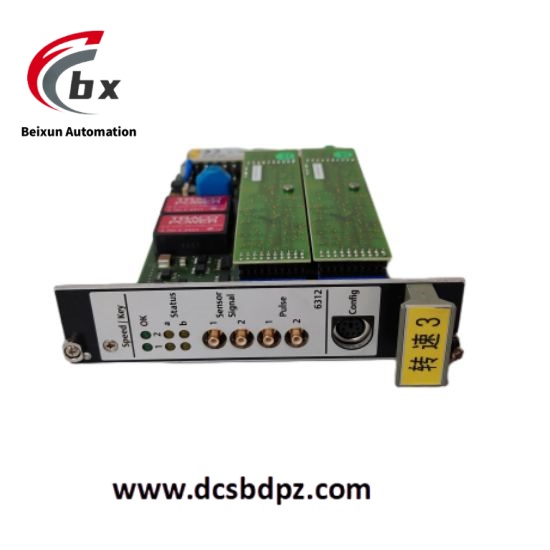

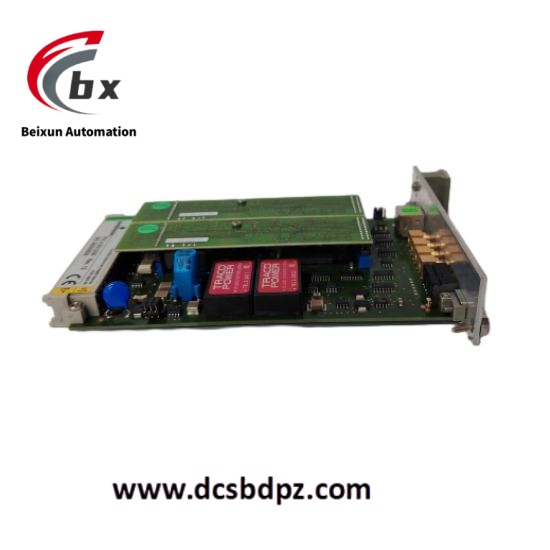

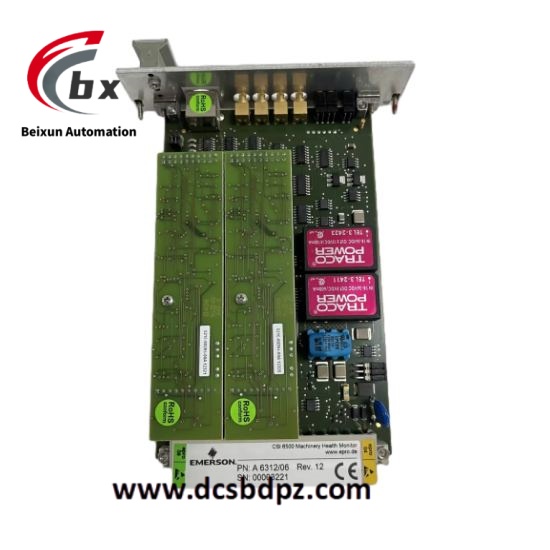

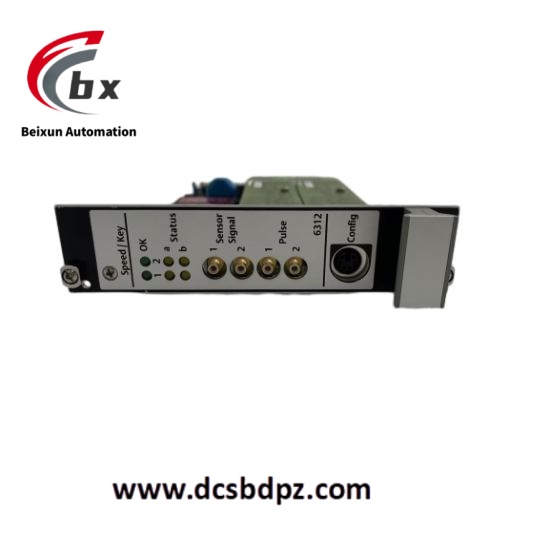

EMERSON A6312/A6312-06 Dual channel speed/key phase monitor module
Specific parameters
Input channels: 2, supporting speed and key phase input.
Speed range: 0 to 20000 rpm.
Key pulse frequency: 0.5 Hz to 10 kHz.
Accuracy: ± 0.5% of full scale.
Output types: including alarms, trips, indications, etc.
Communication interface: RS-485.
Power supply: 24 VDC.
Working temperature: -40 ° C to+70 ° C.
Storage temperature: -40 ° C to+85 ° C.
Humidity: 0% to 95% RH, non condensing.
Shell protection level: IP66.
Product Performance
High precision measurement: With high measurement accuracy, it can accurately monitor the speed and key phase information of rotating equipment, providing reliable data support for the evaluation of equipment operation status.
Dual channel design: Two independent channels can simultaneously monitor two different signal sources, which can be used for redundant monitoring or synchronous monitoring of different parameters of the same device, improving the reliability and flexibility of monitoring.
Multiple output functions: It can provide rich output signals, such as alarm signals, trip signals, and indicator signals, which can timely inform operators of the operation status of the equipment, so as to take corresponding measures for maintenance and protection.
Easy to configure: Supports multiple configuration methods, and can flexibly set monitoring parameters, alarm thresholds, output functions, etc. according to actual application needs, making it convenient for users to customize configurations based on different devices and working conditions.
High reliability: With a sturdy and durable design and high-quality components, it can operate stably in harsh industrial environments, has strong anti-interference ability and protective performance, and can adapt to environments such as high temperature, high humidity, and strong electromagnetic interference.
