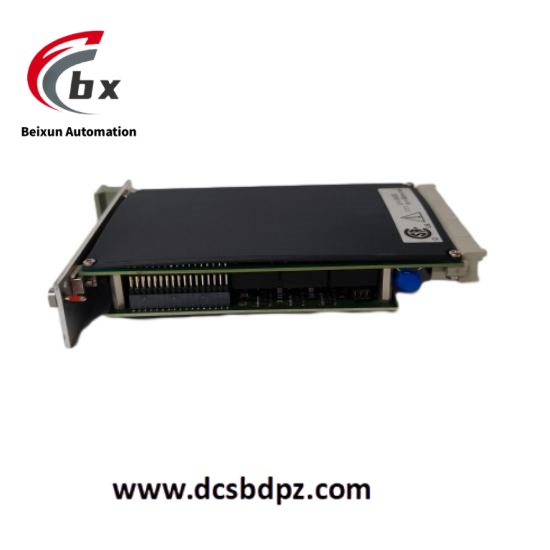

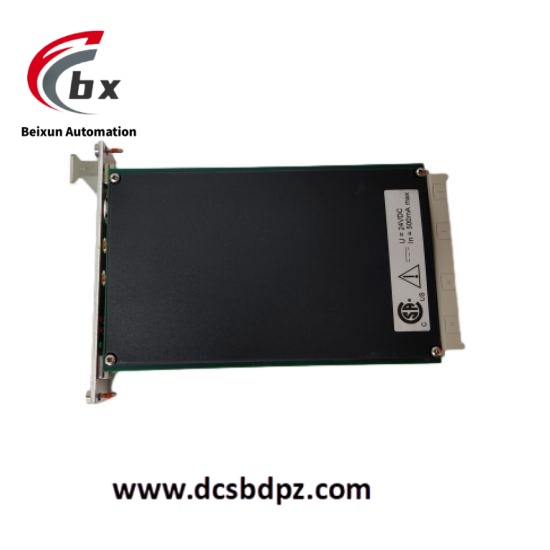

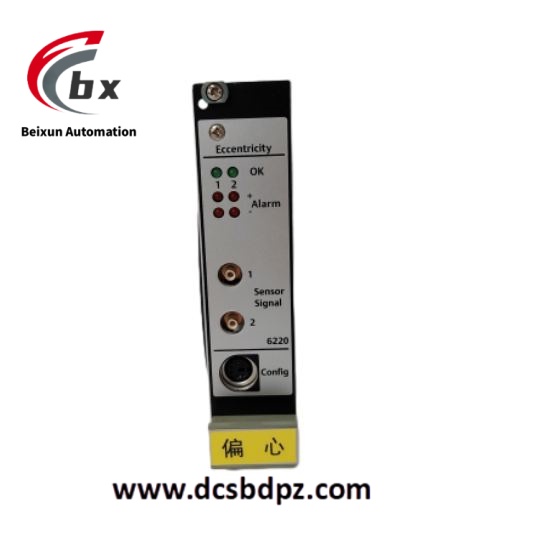

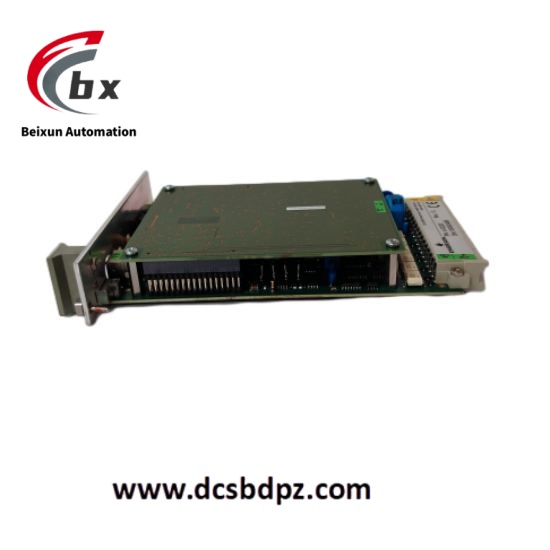

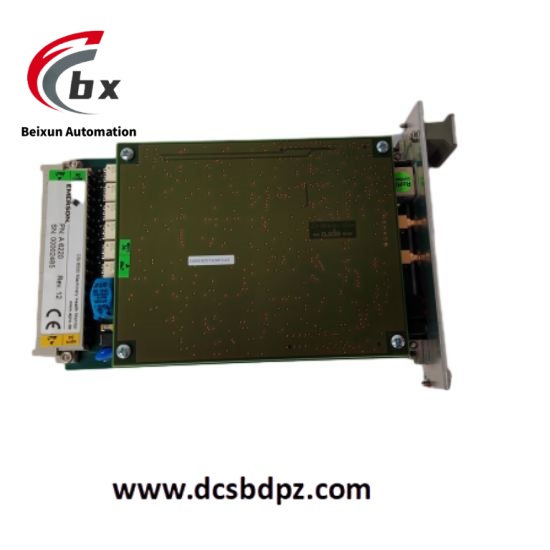

EMERSON A6220 High temperature wireless vibration transmitter module
Specific parameters
Size: 120mm x 80mm x 25mm.
Weight: Approximately 0.3kg.
Input channel: usually consists of 2 independent channels, which can be connected to 2 sensors for monitoring.
Sensor type: Suitable for eddy current, differential sensors, such as PR 642 series, etc.
Measurement range: The measurement range of TD-2 thermal expansion sensor is available in various options such as 0-25mm, 0-35mm, 0-50mm, etc.
Incentive: 1500Hz, 10-20VAC.
Linear impedance: 2500 ± 50 Ω.
Linearity: ± 1.5% of effective full range.
Service temperature: -10 ℃ -100 ℃.
Relative humidity: ≤ 90% non conditioning.
Power related: Input voltage range 9-36VDC or 90V-264VAC, frequency 50/60Hz.
Communication interface: RS232/485 port, supporting communication protocols such as MODBUS RTU.
Product Performance
Accurate measurement: Using high-precision sensors and advanced signal processing technology, it can accurately measure parameters such as eccentric vibration and thermal expansion of the shaft, providing accurate data support for equipment status assessment.
Reliable and stable: With extended self checking function and built-in sensor self checking function, it can monitor its own working status in real time to ensure the reliability of measurement. At the same time, it has a password protection operation level to prevent accidental operations. Using high-quality materials and sturdy design, it can operate stably in harsh industrial environments.
Easy to use: The local indicator has a large viewing angle, while the remote indicator is a digital display that is clear and intuitive, making it convenient for operators to observe and read. It can be configured and communicated on-site through RS232/485 ports, making it convenient for users to set parameters and read data from the monitoring module.
Flexible Expansion: Can be used with other AMS 6500 monitors to build a complete API 670 mechanical protection monitoring system, meeting the monitoring needs of industrial equipment of different scales and complexities.
