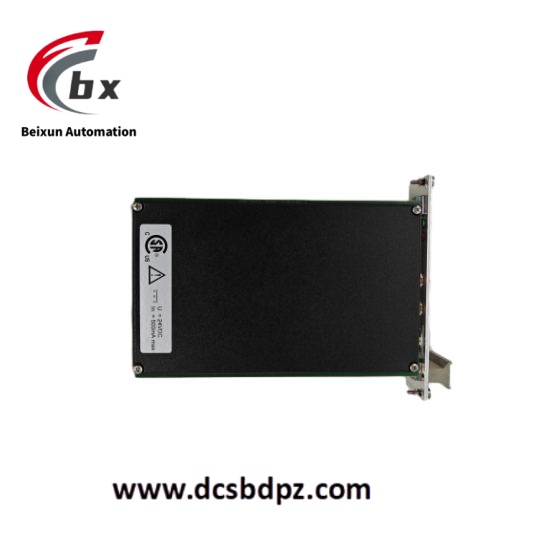

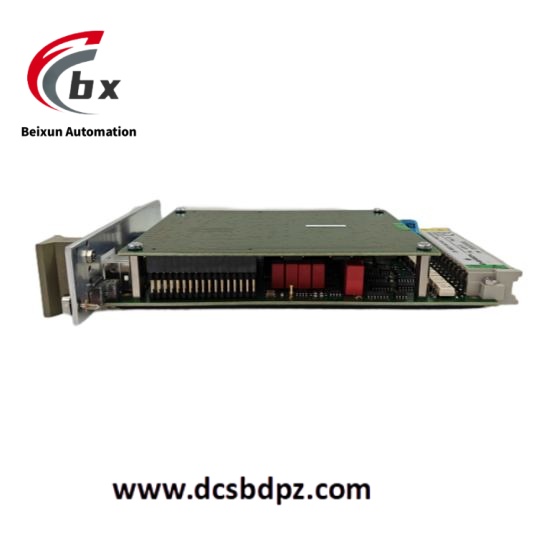

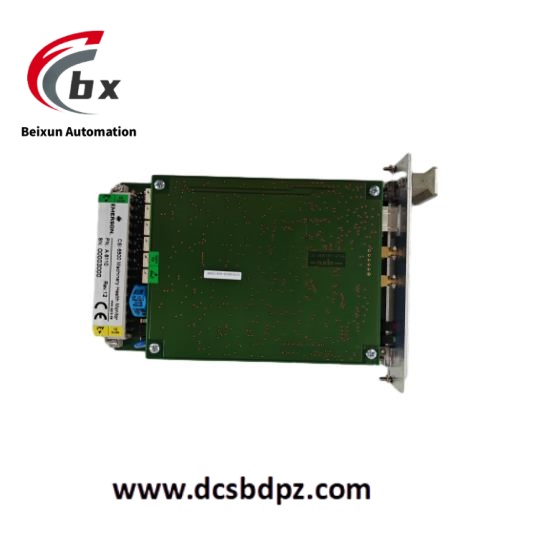

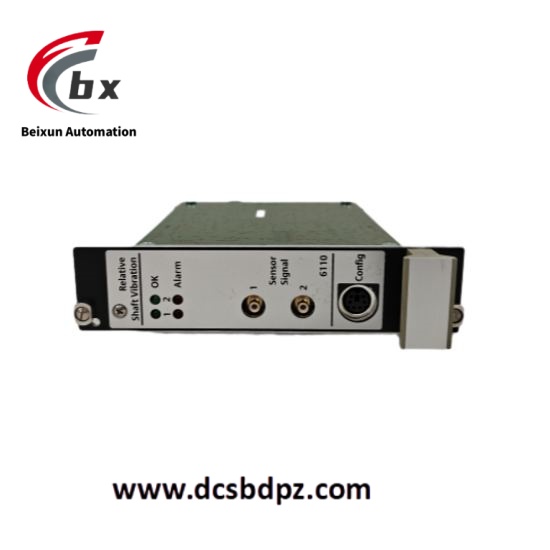

EMERSON A6110 Axis relative vibration monitoring module
Specific parameters
Electrical parameters
Power supply:+5V DC, 1.4A; Partial data shows that the input voltage range is 2.5V to 6V, and it can provide a load current of 1A.
Input resistance:>100k Ω.
Input voltage range: 0 to -22VDC.
Output: 4-20mA output, also supports 0-10V output.
Measurement parameters
Frequency range: The lower cutoff frequency is 1 or 5Hz, and the upper cutoff frequency is adjustable from 50-2000Hz.
Vibration measurement range: 0.00-100mm/s rms.
Physical parameters
Size: 3cm x 18.8cm x 12.8cm.
Weight: 0.14kg or 0.3kg.
Installation method: M20 × 1.5 metric thread.
Environmental parameters
Working temperature: -40 ° C to+85 ° C.
Relative humidity: 5% -95%.
Protection level: IP65.
Product Performance
High precision measurement: using advanced eddy current technology and differential input capability, it can accurately measure the axial and radial vibration of the shaft, provide high-precision vibration measurement results, high measurement resolution, and effectively detect small vibration changes, providing reliable data support for equipment health assessment.
High reliability: Designed specifically for the most critical rotating machinery in factories, it has extremely high reliability. The module adopts a robust design that can withstand harsh industrial environmental conditions such as high temperature, high humidity, vibration, and impact, ensuring long-term stable operation.
Dual channel monitoring: Equipped with dual channel monitoring function, it can simultaneously monitor two different measurement points, provide redundant measurement and backup, increase the reliability and stability of the monitoring system, and facilitate comparative analysis to more comprehensively understand the vibration status of the equipment.
Multiple output modes: Provides multiple output modes such as 4-20mA and 0-10V, making it easy to connect and integrate with other control systems or data acquisition devices. It can transmit measurement data to PLC, DCS systems or other monitoring devices, achieving remote monitoring and data analysis of equipment vibration.
Self checking function: It has a complete self checking function, including monitoring hardware, power input, hardware temperature, sensors and cables, etc. It can automatically detect its own working status, timely detect faults and issue alarm signals, which is convenient for maintenance personnel to quickly locate and solve problems, and reduce equipment downtime.
