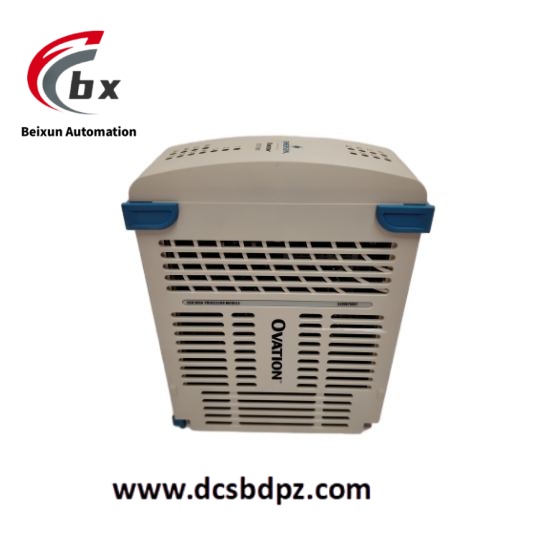

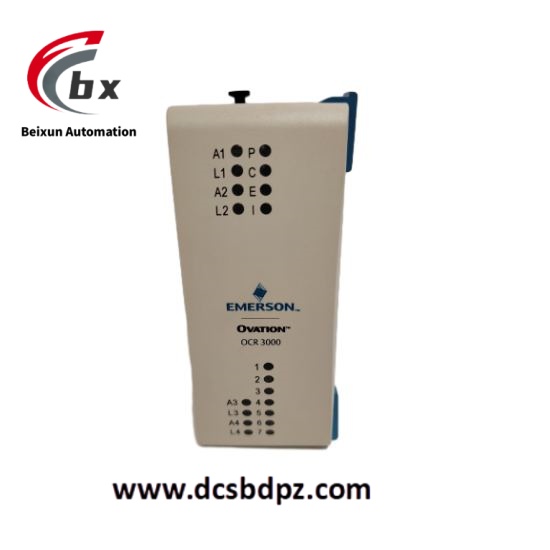

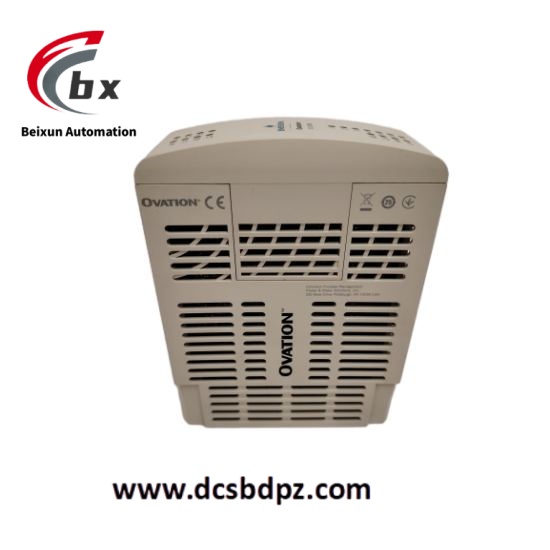

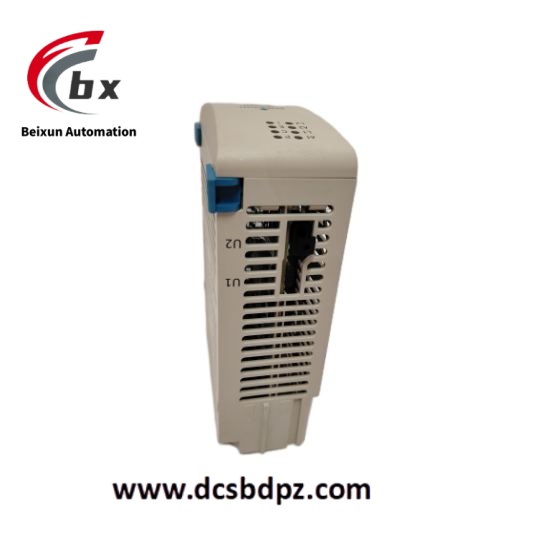

EMERSON 5X00875G01 Ovation Controller Backplane Module
Specific parameters
Compatible controllers: CP3100, CP4000 series
Number of slots: main control slot x 2+expansion slot x 6 (standard configuration)
Electrical interface: Customized 90 pin high-speed connector
Working temperature: -40 ° C~70 ° C (industrial wide temperature range)
Interface parameters: Provides 16 local I/O branch interfaces, which can be connected to various I/O devices to meet the input and output requirements of different field signals.
Communication parameters: Supports multiple communication protocols, such as Ethernet communication protocol, and can perform high-speed data transmission and interaction with other systems or devices, achieving system integration and collaborative work.
Product Performance
Parallel scanning capability: The OCR3000 controller can scan all 16 I/O branches in parallel, greatly improving data acquisition and processing speed. It can quickly respond to changes in the status of on-site devices, shorten control cycles, and improve system real-time performance and control accuracy.
Automatic Fault Switching: Equipped with automatic and disturbance free redundant controller fault switching function. When the main controller fails, the backup controller can quickly take over the control task, ensuring the continuous and stable operation of the system, and avoiding production interruption or equipment damage caused by controller failure.
Diagnostic function: It integrates advanced controller diagnostic functions, which can monitor the real-time operation status of the controller, including hardware faults, software errors, communication abnormalities, etc., and can promptly issue alarm information, facilitating maintenance personnel to quickly locate and solve problems, reducing system maintenance costs and downtime.
Compatibility: As part of the Emerson Ovation system, 5X00875G01 is compatible with all Ovation I/O modules, protecting users’ existing investments in the Ovation system and facilitating system expansion and upgrades. In addition, it is compatible with the OCR1100 controller application, making it easy for users to upgrade and modify the existing system.
Security: Encrypt and sign all controller firmware files to prevent illegal tampering, improve system security and reliability, and ensure that the control system runs in a secure environment.
