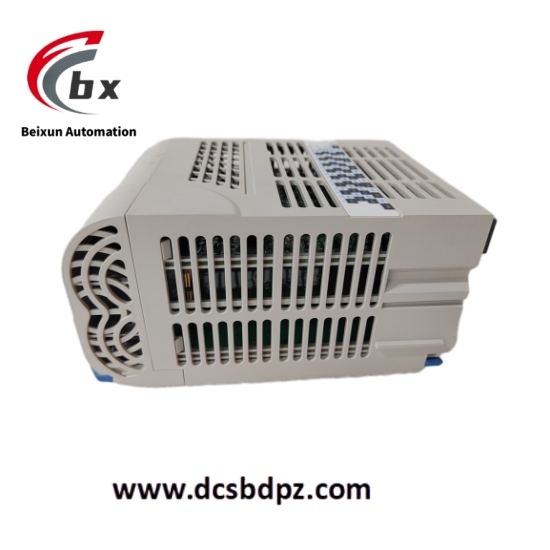

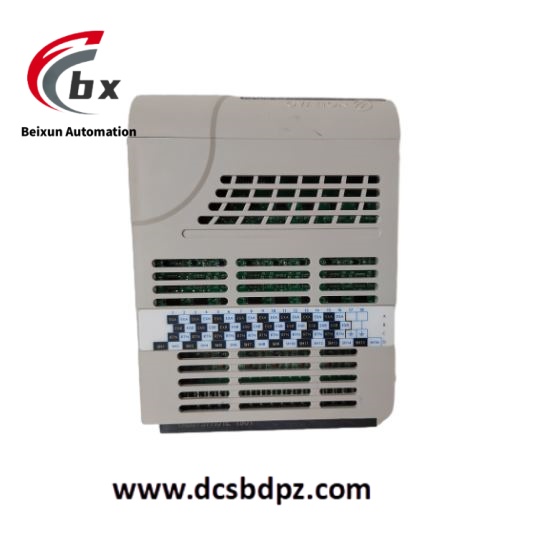

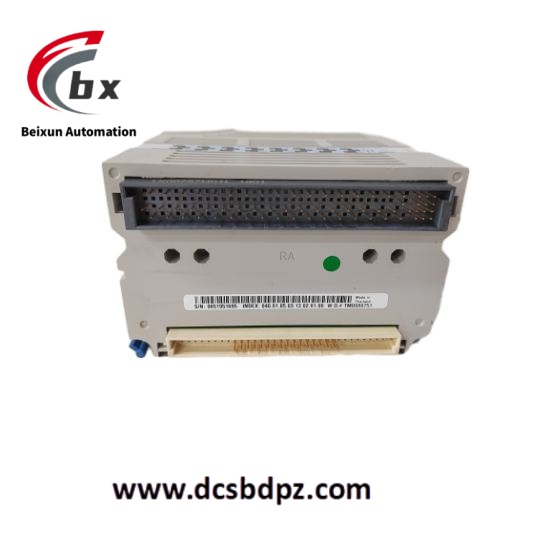

EMERSON 5X00622G01 Analog input card
Specific parameters
Input type: RTD (two/three/four wire system), thermocouple (J/K/T/E/R/S/B type)
Isolation method: Independent isolation between channels (1500V AC) to suppress ground loop interference
Sampling rate: 10 times/second (full channel scan)
Working temperature: -40 ° C to+85 ° C (industrial wide temperature design)
Communication protocol: Interact with the controller through the DeltaV backplane and support the HART 7.0 protocol (with the need for a HART modulator)
Certification standards: UL/ATEX/IECEx (applicable to explosion-proof environments)
Electrical parameters
Working voltage: 220V
Output frequency: 30kHz
Input type: For the case of a 16 channel thermistor input module, the input type is RTD, supporting multiple thermistor types such as PT100, PT500, NI120, CU100, etc.
Input range: -200 ℃ to 800 ℃ (-328 ° F to 1472 ° F).
precision parameter
Measurement accuracy: ± 0.1% of full scale.
Resolution: 0.01 ℃ (0.018 ° F).
Cold end compensation: automatic cold end compensation.
Physical parameters
Size: 2.5 x 2.5 x 0.5 inches.
Weight: Approximately 0.1 lbs.
Product Performance
High reliability: Using high-quality materials and manufacturing processes, it can ensure long-term stable operation and is suitable for various harsh industrial environments.
High precision: When used as a 16 channel thermistor input module, it has high measurement accuracy and resolution, and can accurately measure temperature signals, providing precise data support for industrial control.
Multiple protocol support: As a remote communication card, it supports multiple communication protocols and can seamlessly connect and exchange data with various industrial equipment, achieving remote monitoring and control.
Flexible configuration: Both communication card and control module functions have a certain degree of flexibility and can be configured and customized according to different application scenarios and requirements.
Easy to maintain: It has a simple interface and debugging mode, making it convenient for users to install, debug, and perform daily maintenance work.
