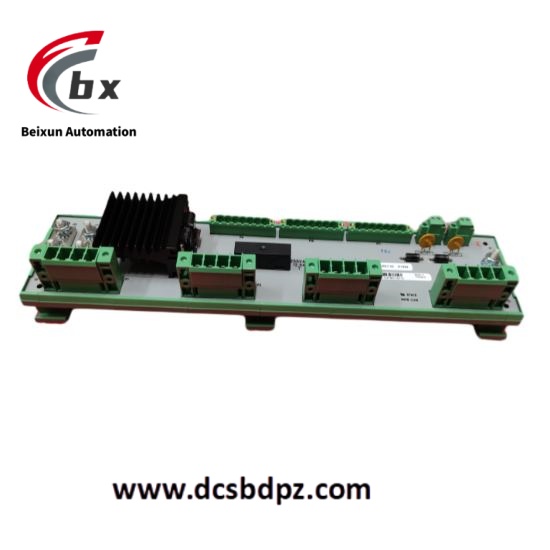

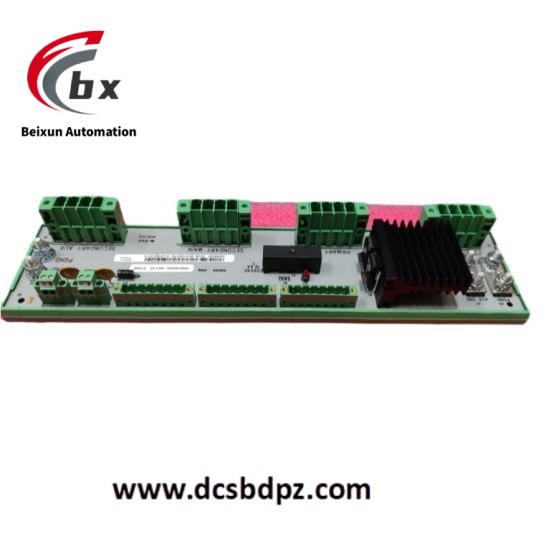

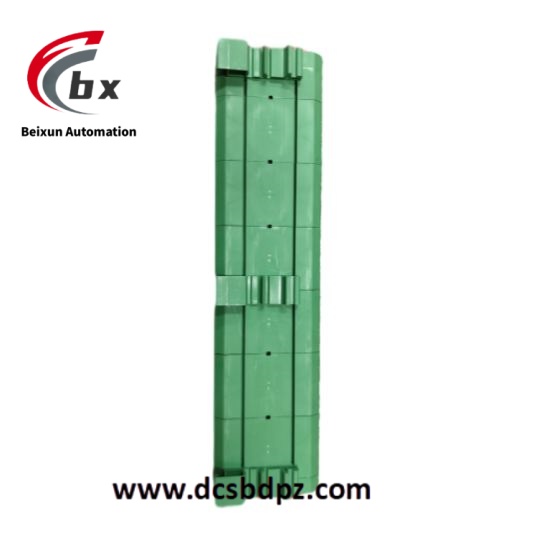

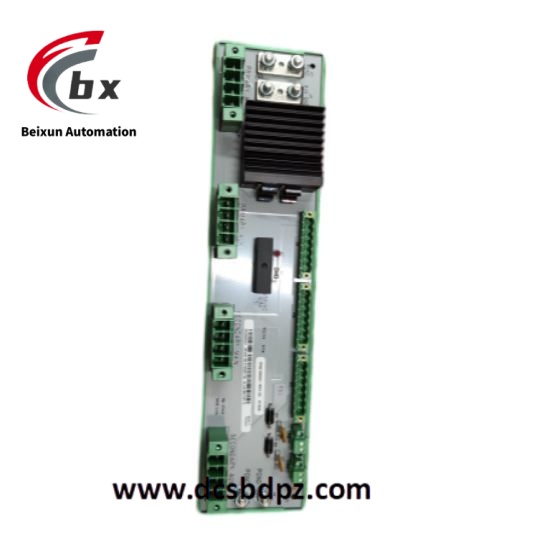

EMERSON 5X00489G01 power distribution module

EMERSON 5X00489G01 power distribution module

Specific parameters
Input voltage: 100-240V AC.
Output voltage: 24V DC.
Output current: 40A.
Working temperature: -40 ° C to 70 ° C.
Storage temperature: -40 ° C to 85 ° C.
Humidity: 0% -95%, no condensation.
Vibration: 5g rms, 10Hz to 500Hz.
Shock: 30g, 11ms half sine wave.
Electromagnetic compatibility: Complies with EN 61000-6-2 and EN 61000-6-3 standards.

Product Performance
Wide input voltage range: It can adapt to input voltages of 100-240V AC, which means it can work stably in different power supply environments, improving the applicability and flexibility of the module.
Overcurrent and undervoltage protection: Integrated with overcurrent and undervoltage protection functions, it can effectively prevent damage to system components caused by excessive current or low voltage, enhancing the reliability and stability of the system.
Compact design: With a compact size and DIN rail installation method, it is easy to install in control cabinets with limited space, saving installation space while also facilitating maintenance and replacement.
