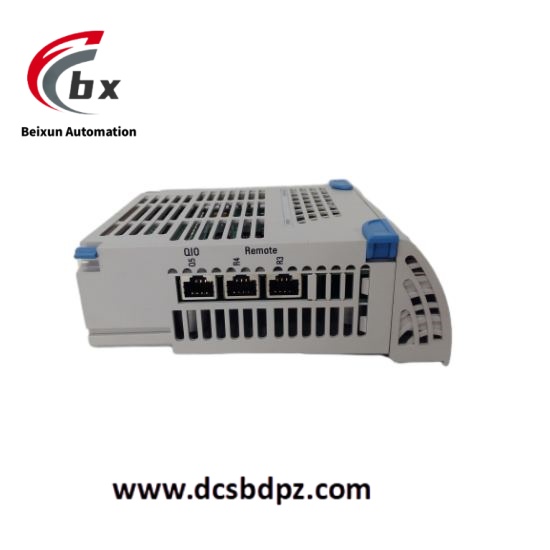

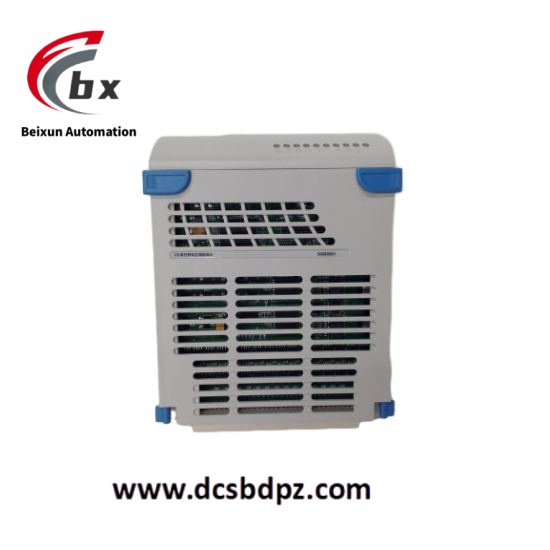

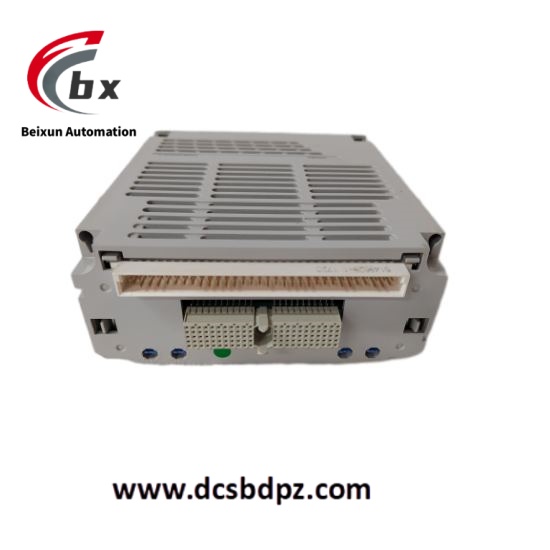

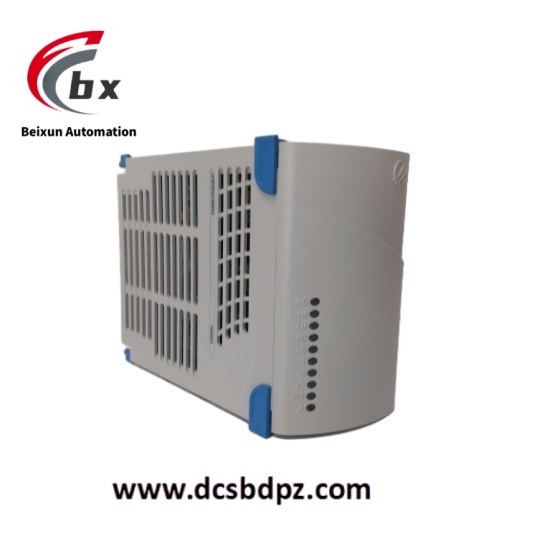

EMERSON 5X00226G01 Digital valve controller module
Specific parameters
Input signal:
-4-20mA HART 7+FOUNDATION Fieldbus (redundant dual channel)
-SIS specific signal: Pulse contact type ESD command (response time ≤ 450ms)
Output characteristics:
-Output pressure: 0-100 psi (6.9 bar)
-Full travel time: ≤ 1.8 seconds (under 70 psi gas source)
-Positioning accuracy: ± 0.35% of full scale (SIL mode)
Data rate: up to 500kbps (automatic detection)
Loop data size: 28 words input/output
Communication Protocol: Supports communication protocols such as EIA-232 (RS-232) and EIA-485 (RS-485), and can be used to connect various serial devices
Gas source pressure range: 1.4-8.3 bar (20-120 psi)
Working temperature: -50 ° C to+85 ° C (suitable for Arctic/Desert)
Relative humidity:<95% RH
Altitude:<3000m
Protection level: IP68/NEMA 6P (fully waterproof and dustproof)
Explosion proof certification: ATEX II 3G Ex ic nC IIC T6 Gc
Product Performance
High reliability: Using high-quality components and designs, rigorously tested and validated, it can operate stably for a long time in harsh industrial environments, ensuring the reliable operation of the system.
Fast response speed: With high-speed digital input capability and fast response time, it can collect and process digital signals in real time, meeting the high requirements for signal response speed in applications.
High precision: Whether it is data acquisition or control output, it has high precision and can provide accurate support for industrial control.
Strong scalability: Supports modular expansion and flexible configuration, allowing for the addition of more digital input channels or other types of input/output modules as needed, facilitating system expansion and integration.
Easy to integrate: Designed to be well compatible with other EMERSON modules and devices, seamlessly integrated into existing systems and infrastructure, facilitating system construction and upgrades.
Easy to configure and use: With a user-friendly configuration interface and operation method, it provides flexible parameter settings and monitoring functions, making the configuration and monitoring process simple and intuitive.
