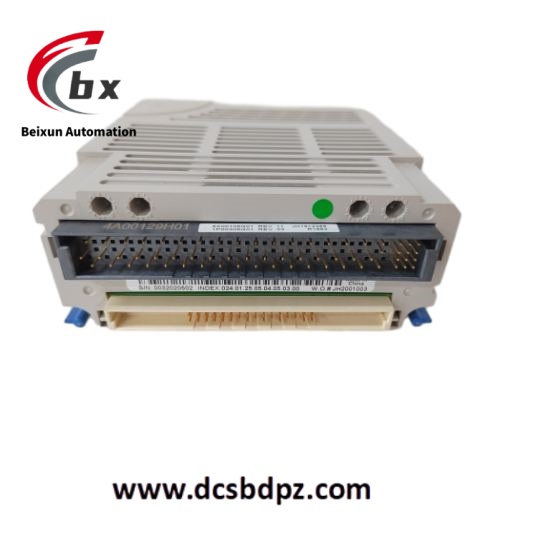

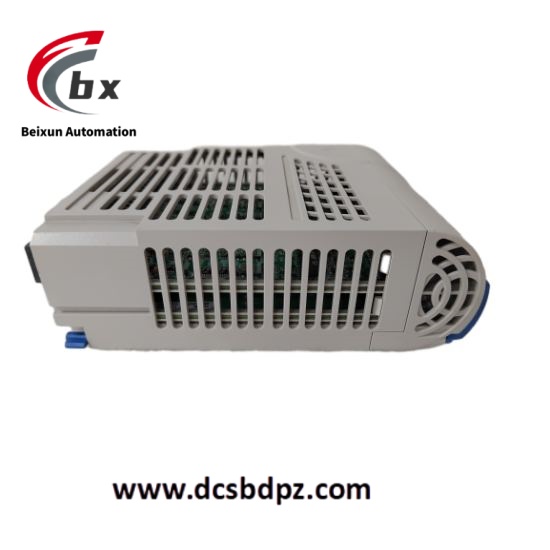

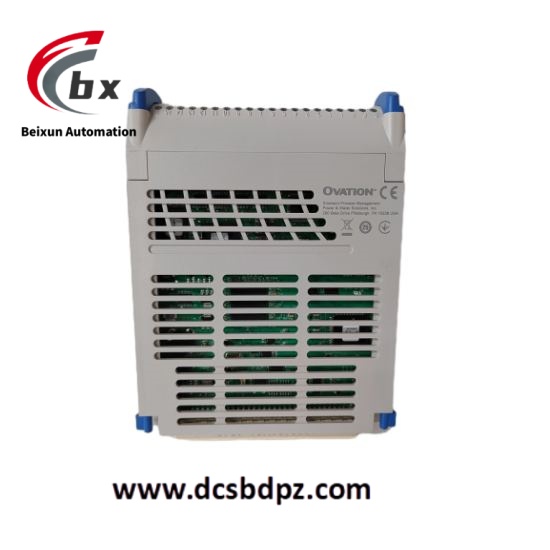

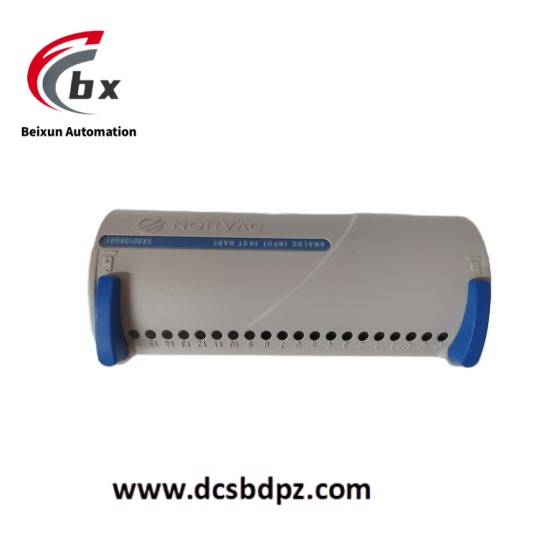

EMERSON 5X00106G01 Analog input module
Specific parameters
Input range: Current -40 to+40 mA, 0 to 20 mA; Voltage -10 to+10 V, 0 to 10 V.
Accuracy: ± 0.1% of full scale.
Resolution: 0.01% full scale (some data shows as 12 bits).
Noise:<10 μ V rms.
Response time:<25 ms.
Sampling rate: up to 1000 samples/second/channel (some data shows up to 100 Hz).
Working voltage: 24 VDC.
Power consumption: ≤ 1 W.
Working temperature: -40 ℃ to+85 ℃
Storage temperature: -55 ℃ to+85 ℃.
Humidity: 5% to 95% relative humidity, no condensation.
Vibration: 0.05 g rms, 10 to 500 Hz.
Shock: 10 g, 20 ms half sine wave.
Electromagnetic compatibility: Complies with EN 61000-6-1, EN 61000-6-2, and EN 61000-6-3 standards.
Product performance
High precision measurement: With a high-precision measurement capability of ± 0.1%, it can accurately collect analog signals, provide accurate data support for control systems, and ensure precise control of industrial processes.
Quick response: With a response time of less than 25 ms, it can quickly capture signal changes and monitor the dynamic changes of process variables in real time. For industrial processes that require quick response, such as monitoring parameter changes in chemical reaction processes, it can provide timely feedback information and facilitate timely adjustment of control strategies.
High anti-interference ability: Low noise (<10 μ V rms) and good electromagnetic compatibility enable it to work stably in complex electromagnetic environments, reducing the impact of external interference on measurement results. It is suitable for various industrial sites, including those with a large number of electrical equipment and electromagnetic interference sources.
Flexible input configuration: supports multiple input ranges, adapts to different types of sensors and signal sources, facilitates connection with various field devices, does not require additional signal conversion devices, and reduces the complexity and cost of system integration.
Convenient communication function: Through the HART communication protocol, bidirectional communication with on-site intelligent devices can be achieved. Not only can measurement data of the devices be obtained, but remote configuration, diagnosis, and maintenance of the devices can also be carried out, improving equipment management efficiency and reducing on-site maintenance workload.
