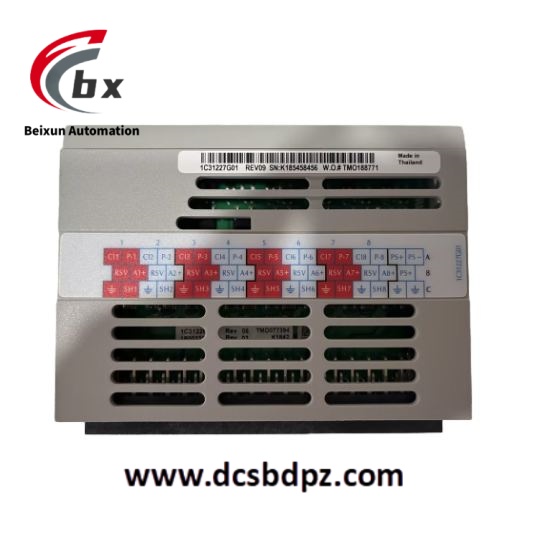

EMERSON 1C31227G01 Ovation DCS 32 channel digital output module
Specific parameters
Product Category: Ovation High Power Relay Output Module (32 Channels)
Core function: Supports relay/transistor output
type of output
Relay contact: 5A @ 250V AC/30V DC
Transistor output: 0.5A @ 24V DC
Switching time relay: ≤ 10ms
Electrical lifespan relay contacts: ≥ 100000 times (5A resistive load)
Isolation capability: 1500V AC between channels (8 channels/group)
Resolution: 14 bits.
Input signal types: Supports various signal types such as voltage signals (e.g. -10V to+10V, 0-10V, etc.), current signals (e.g. 4-20mA), resistance temperature detectors (RTDs), thermocouples, etc.
Input range: The voltage signal is generally -10V to+10V or 0-10V; the current signal is 4-20mA; it can also be adapted to other ranges according to configuration.
Accuracy: ± 0.1% of full scale.
Input impedance: configurable to accommodate different input signal types, such as 0-5V, 1-5V, or 4-20mA inputs that can be configured separately.
Power supply: 24V DC, power consumption 500mA or 5W.
Isolation voltage: 1500V.
Communication protocol: Supports Modbus, Profibus, etc.
Working temperature range: -40 ° C to+70 ° C.
Humidity range: 0% to 95% RH, non condensing.
Size: 120mm x 160mm x 35mm.
Weight: 1.5kg.
Product Performance
High precision measurement: With a resolution of 14 bits and an accuracy of ± 0.1%, it can accurately collect and convert analog signals, ensuring the accuracy of measurement data and providing reliable input information for control systems.
Wide range input: Supports multiple types and ranges of analog signal input, with strong universality and flexibility, and can meet the output signal access requirements of different industrial field sensors.
Strong configurability: Users can configure input scaling, input impedance, and other parameters according to actual application needs, enabling the module to better adapt to specific measurement tasks and on-site environments.
High reliability: CE and UL certified, designed for harsh environments, capable of stable operation in a temperature range of -40 ° C to+70 ° C and humidity conditions of 0% to 95% RH, with good anti-interference ability and stability, ensuring long-term reliable operation.
Quick response: With a response time of less than 10ms, it can capture changes in analog signals in a timely manner and quickly transmit the collected data to the control system, meeting the high real-time requirements of industrial application scenarios.
