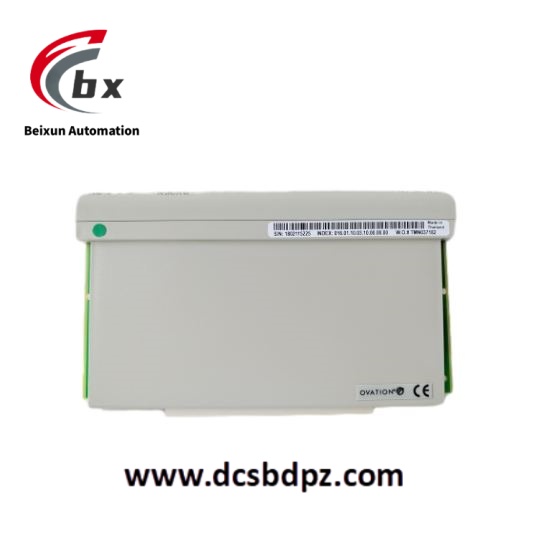

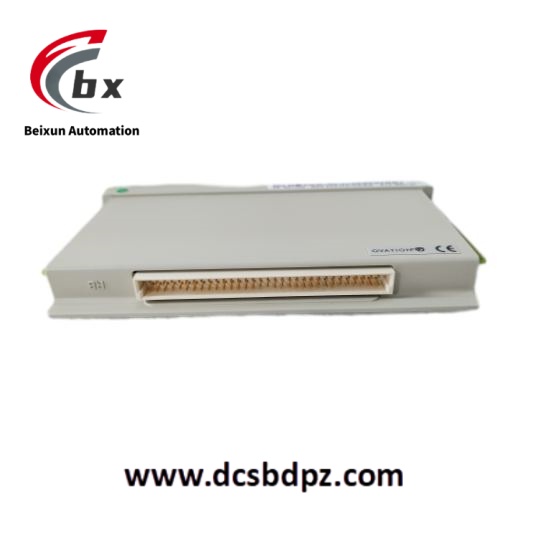

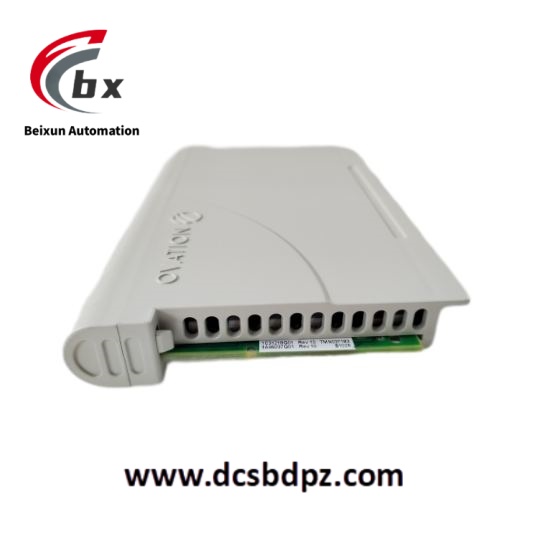

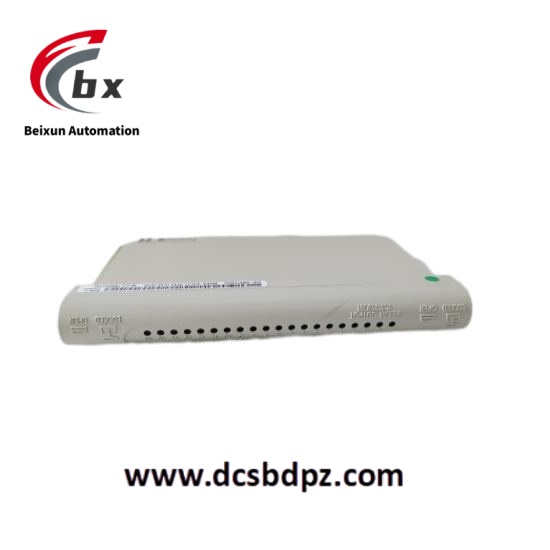

EMERSON 1C31219G01 Ovation redundant power switching module (AC/DC dual input)
Specific parameters
Product Category: Ovation Redundant Power Switching Module (AC/DC Dual Input)
Core function: seamless switching between primary and backup power sources
Input Voltage
AC input: 85-264V AC (47-63Hz)
DC input: 18-36V DC
Output capability: 24V DC ± 0.5%
Switching time: ≤ 4ms (main/backup switching, load voltage fluctuation ≤ 5%)
Efficiency: ≥ 92% (@ 50% load)
Isolation level: Input output: 3000V AC
Overcurrent protection (OCP): 110% -150% rated current → limiting current cycle by cycle
Short circuit protection (SCP): hard turn off time**
C [Backup power supply DC 24V] –>: L2/N2
Working temperature range: -40 ° C to 70 ° C.
Humidity range: 0 to 95% RH, no condensation.
Product Performance
High reliability: Made of industrial grade materials, with a sturdy and durable casing, capable of long-term stable operation in harsh industrial environments, meeting mechanical and electrical life requirements. The mechanical life can reach 10 million operations, and the electrical life can reach 100000 operations under rated load.
High control accuracy: It can provide precise relay output control with a short response time, usually less than 10ms, ensuring accurate control of external devices and meeting the needs of various high-precision control tasks.
Strong compatibility: Supports multiple communication protocols such as Modbus RTU, seamlessly integrates with other automation devices and systems, and facilitates system expansion and upgrades for users.
Low maintenance cost: Due to its high reliability and long lifespan, as well as modular design, maintenance work is simpler and more convenient, reducing equipment maintenance costs and downtime.
