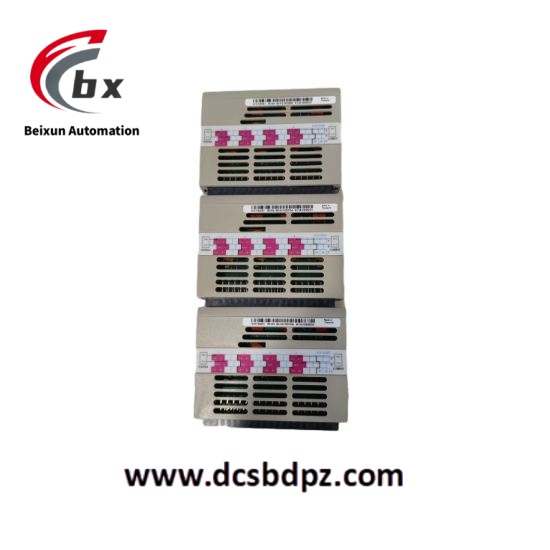

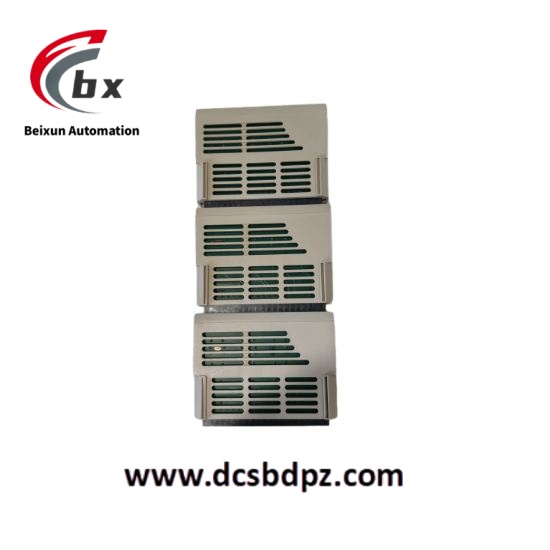

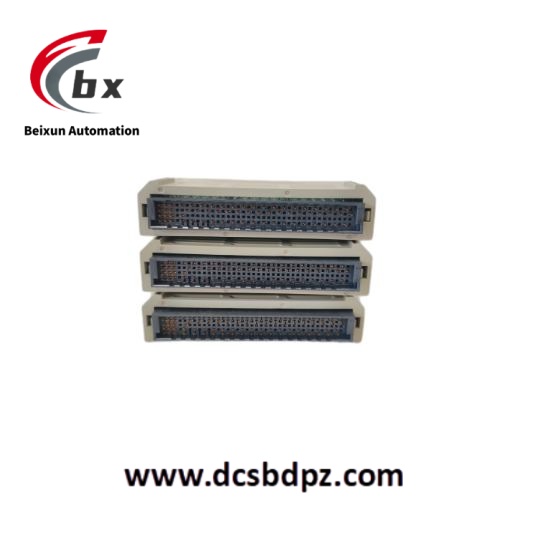

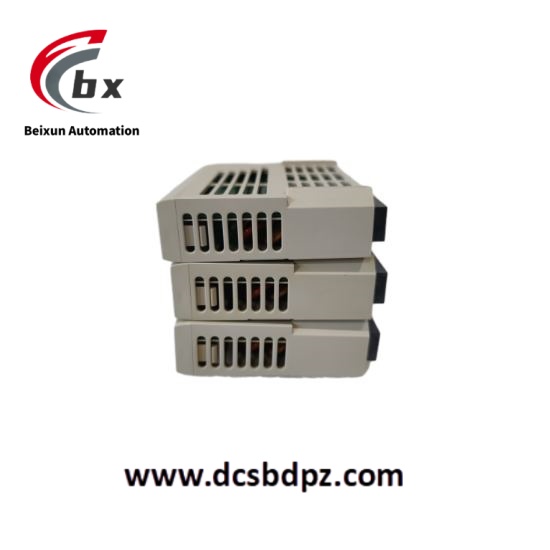

EMERSON 1C31132G01 Analog Output Module

EMERSON 1C31132G01 Analog Output Module

Specific parameters
Electrical specifications
Working voltage: 220V
Output frequency: 50kHz
Power requirement: 24V DC
Output type: Voltage 0-10V, Current 4-20mA
Number of channels: 4 channels
Environmental Specifications
Working temperature range: -20 ° C to 60 ° C
Humidity range: 5% to 95%, non condensing
Size and weight
Size: 1.0 “x 3.3” x 4.8 “(2.5cm x 8.3cm x 12.1cm)
Weight: 0.1kg

Product Performance
High precision output: capable of providing high-precision analog output signals, ensuring the accuracy of signal transmission, and meeting various application scenarios with high requirements for control accuracy.
Strong stability: It can work stably in the working temperature range of -20 ° C to 60 ° C and the humidity range of 5% to 95%, adapt to different industrial environments, and has strong anti-interference ability, which can effectively reduce signal distortion and misoperation.
Good compatibility: As part of the Ovation series, it is well compatible with other modules and devices in the series, making it easy to integrate and expand the system. It can seamlessly integrate into existing Ovation control systems, protecting users’ initial investment.
Diagnostic function: It has a terminal block temperature measurement function, which can monitor the temperature status of the terminal block in real time, facilitating the timely detection of potential fault hazards. At the same time, it may also have other self diagnostic functions, such as abnormal output signal detection, which can help improve the reliability and maintainability of the system.

application area
Power industry: It can be used in distributed control systems (DCS) for power plants to accurately output control signals for analog control of equipment such as boilers, turbines, and generators, such as controlling steam flow, temperature, pressure, and other parameters, to ensure stable operation and efficient production of the power generation process.
Chemical industry: In the chemical production process, it is used to control various chemical process parameters, such as temperature, pressure, liquid level control of reaction vessels, and flow regulation, to ensure the safety of the chemical production process and the stability of product quality.
Water treatment industry: Applied to automation control systems in water treatment plants, analog control is carried out on equipment such as pumps and valves to achieve precise adjustment of parameters such as water level, flow rate, and water quality, ensuring efficient operation of the water treatment process and meeting effluent quality standards.
Metallurgical industry: In the metallurgical production process, such as blast furnace ironmaking and converter steelmaking in steel plants, it is used to control analog parameters such as furnace temperature, furnace pressure, and material flow rate, optimize production processes, and improve production efficiency and product quality.
Other industrial automation fields: It can also be widely applied to other industrial automation scenarios that require precise analog control, such as papermaking, food and beverage, pharmaceutical and other industries, to achieve precise control and optimized management of the production process.
