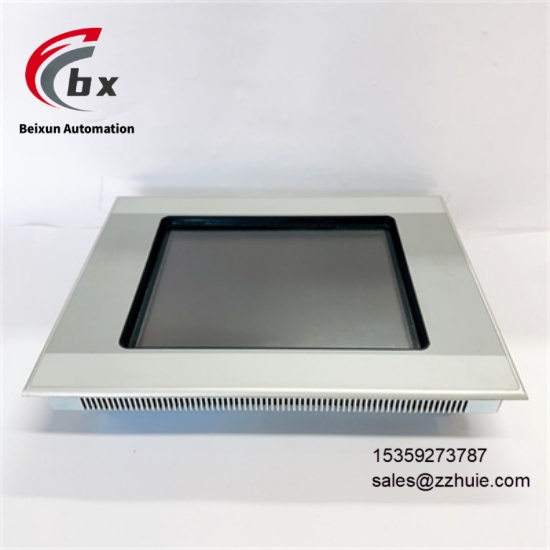

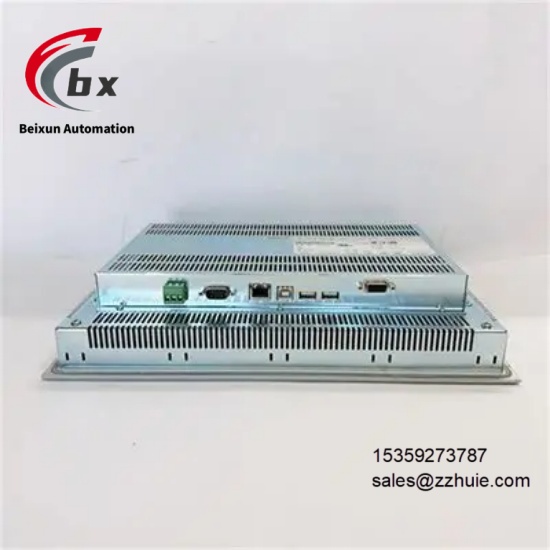

EATON XVS-440-10MPI-1-1U Compact Human Machine Interface (HMI)
Specific Parameters
Brand EATON (Eaton, American Brand, Produced by Swiss Original Factory), Product Series Eaton XVS400 Series
Product Type Industrial-Grade Compact Human-Machine Interface (HMI), Touch Screen, Industrial Automation Human-Machine Interaction Component, Original Authentic Spare Part
Model EATON XVS-440-10MPI-1-1U (Compact Design, Supporting MPI Communication Protocol)
Country of Origin Switzerland (Produced by EATON Original Factory)
Compatible Devices Various PLC Systems, CNC Systems, Motion Controllers, Computer Boards, Automated Production Line Equipment, Textile Machinery, Laser Processing Machinery, Medical Equipment, Industrial Robots
Core Functions Human-Machine Interaction Operation, Equipment Operation Status Display, Parameter Setting and Adjustment, Operation Command Input, MPI Protocol Communication, Data Visualization, Expandable PLC Function, Protocol Conversion
Product Type Industrial-Grade Human-Machine Interface, Compact Design, Supporting Vertical or Horizontal Use
Touch Technology PCT Projective Capacitive Multi-Touch, Supporting Multi-Finger Operation, Enabling Zoom and Scroll Functions
Display Type TFT Color Display, 10.4 Inches, 16:9 Aspect Ratio
Resolution 800×600 (SVGA)
Display Color 65536 Colors
Processor ARM Cortex A9 800 MHz Microprocessor
Memory 64MB DRAM, 64MB NAND, 125KB NVRAM
Communication Protocol Supporting MPI Protocol, Optional SmartWire-DT and Profibus-DP Interfaces
Communication Interfaces 1-2 Ethernet Interfaces, 1 RS-232 Fully Isolated Serial Interface, Supporting CAN Bus and CANopen Communication Protocol
Power Supply Voltage 24VDC
Operating Current 100-400A
Power Consumption Standby Power Consumption ≤8W, Full Load Power Consumption ≤22W
Operating Temperature Range 0℃ to 50℃, Wide Temperature Version Can Reach -40℃ to 70℃
Storage Temperature Range -40℃ to 85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Class Front Panel IP65, Rear Interface IP20
Vibration and Shock Complying with MIL-STD-810G Standard, 5Grms Vibration Tolerance
Physical Dimensions Width 136mm, Height 100mm, Depth 30mm
Physical Weight Approximately 2kg
Mounting Method Front Embedded Mounting, Compatible with Industrial Standard Mounting Dimensions, Easy to Install
Screen Material Tempered Glass Anti-Reflective Screen, Easy to Clean, with Oil Stain Interference Resistance
Diagnostic Function Built-in Fault Self-Diagnostic Module, Can Real-Time Monitor Communication Status, Touch Status and Equipment Operation Status, and Feedback Fault Information
Product Material Industrial-Grade High-Strength Enclosure, PCB Nano Three-Proof Coating, High-Temperature Resistant Insulation Material, Built-in Anti-Corrosion and Anti-Electromagnetic Interference Protection Components
Special Functions Small Size, High Cost-Effectiveness, Convenient Networking and Simple Wiring; Supporting Parallel Conversion of 8 Industrial Protocols; Inertia Automatic Identification to Achieve “Plug and Play”; Enhanced Vibration Suppression Function to Improve System Follow-Up; Built-in 24V Power Supply, No Series Resistor Required for Upper Computer Position Command
Product Performance
EATON XVS-440-10MPI-1-1U is an original Eaton device with extremely strong adaptability, which can be perfectly matched with various PLC, CNC systems and motion controllers, seamlessly integrated into various scenarios such as textile machinery, laser processing, robots and automated production lines, no additional adaptation components required, greatly reducing system integration complexity and commissioning costs. The product has outstanding operational convenience, adopts PCT projective capacitive multi-touch technology, the operation method is consistent with modern intelligent devices, supports gestures such as zooming and scrolling, high-precision sensors can prevent operation errors or accidental machine start-up, improving system safety, and the tempered glass anti-reflective screen displays clearly, ensuring good visibility even in strong light environments. The product has excellent reliability, adopts PCB nano three-proof coating and industrial-grade high-quality components, has excellent anti-electromagnetic interference and anti-vibration impact capabilities, IP65 front panel protection can effectively resist dust and water vapor intrusion, can operate continuously and stably in standard working conditions of 0℃ to 50℃ and harsh working conditions of -40℃ to 70℃, with a long mean time between failures. The product has flexible and diverse functions, supports MPI communication protocol and conversion of various industrial protocols, can be used as a standard HMI or extended with PLC functions to achieve integration of control and interaction, the compact design saves installation space, networking is convenient, and it can be put into use without complex commissioning, greatly improving operation and maintenance efficiency, and providing stable, efficient and intuitive human-machine interaction support for industrial automation, precision processing, medical equipment and other scenarios.
