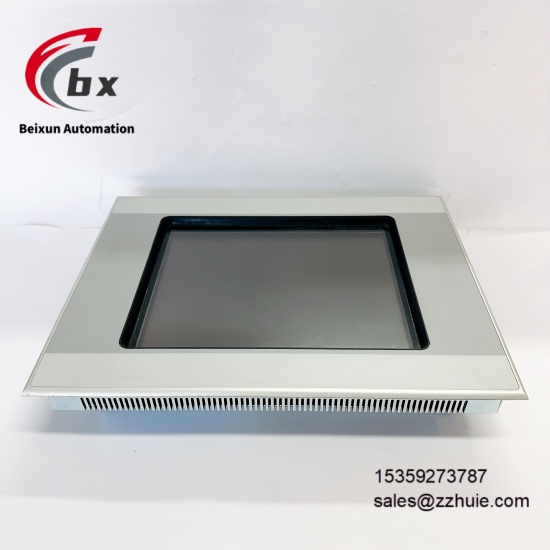

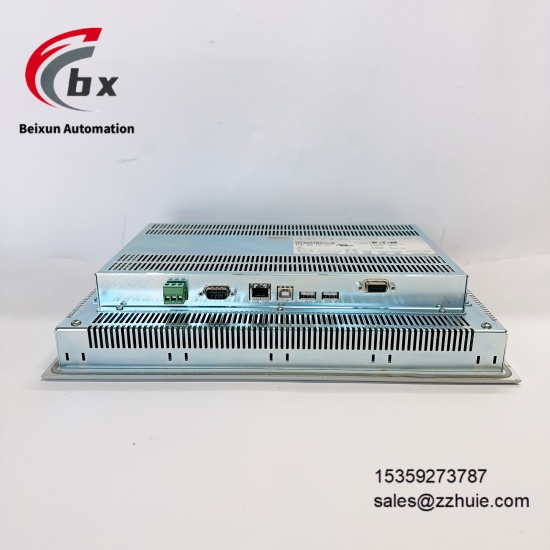

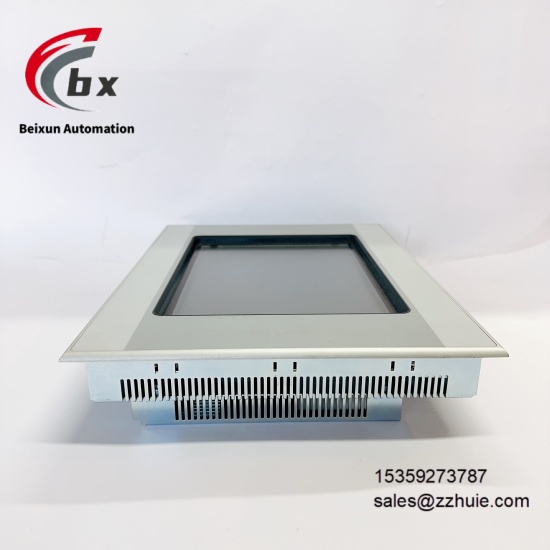

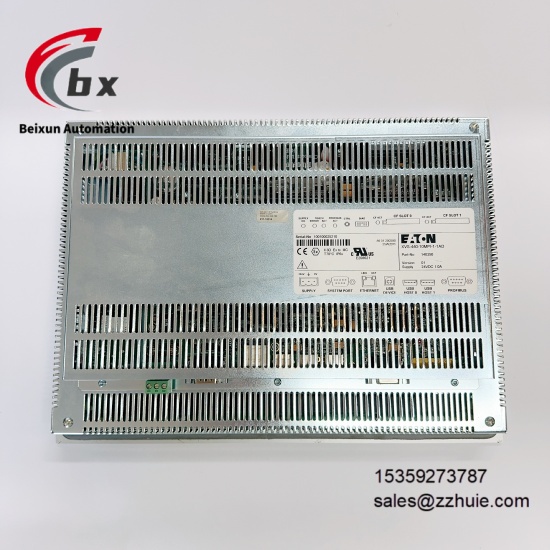

Eaton XVS-440-10MPI-1-1AD Industrial Human Machine Interface (HMI)

Eaton XVS-440-10MPI-1-1AD Industrial Human Machine Interface (HMI)

SPECIFIC PARAMETERS​

Brand Eaton​

Product Series XVS​

Product Type Industrial-grade Human-Machine Interface HMI​

Screen Size 10.4 inches​

Screen Type TFT True Color LCD Screen​

Screen Resolution 800×600 pixels​

Display Color 65536 colors​

Touch Control Method Resistive Touch Screen​

Working Voltage 24VDC​

Working Temperature 0℃ to 55℃​

Storage Temperature -20℃ to 60℃​

Program Memory 128MB​

Data Memory 256MB​

Communication Interface MPI Profibus DP Ethernet 10/100BaseTX RS-232 RS-485​

Protection Level Front IP65 Back IP20​

Safety Level SIL 2​

Processor Core 32-bit ARM Industrial-grade Processor​

Supported Protocols Modbus RTU Modbus TCP Profibus DP MPI Ethernet/IP​

Power Consumption 18W​

Size 280mm×220mm×50mm​

Weight 1.2kg​

MTBF 500000 hours​

Compatible Software CoDeSys V3 Eaton HMI Designer WinCC Flexible​

PRODUCT PERFORMANCE​

Equipped with a 10.4-inch 800×600 resolution true color display screen, which can clearly present equipment operation data and fault information​

Adopt resistive touch technology, support industrial glove operation, and achieve precise touch in dusty environments​

Integrate multiple types of industrial communication interfaces to achieve seamless data interaction with PLC, DCS, frequency converters and other equipment​

Built-in large-capacity storage unit, supporting local data caching and historical operation record storage​

Has an automatic screen brightness adjustment function, suitable for industrial sites with different light intensities​

Adopt industrial-grade wide-temperature components, which can operate stably in environments with strong electromagnetic interference and high-low temperature fluctuations​

Support online program download and update, and configuration interface upgrade can be completed without disassembly​

Built-in fault self-test function, which can realize rapid fault identification through screen alarms and LED indicators​

Has power-off data protection function to ensure that configuration programs and historical data are not lost​

Support multi-language interface switching, suitable for operation and use needs in different regions​
