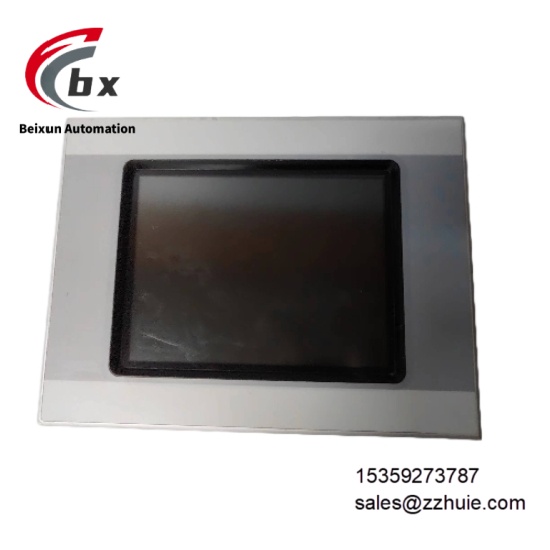

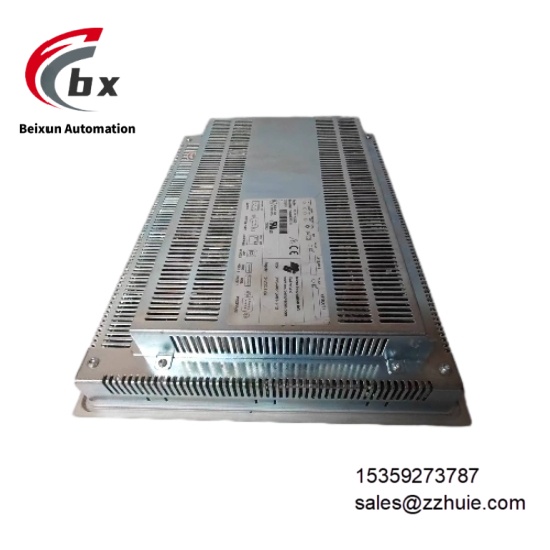

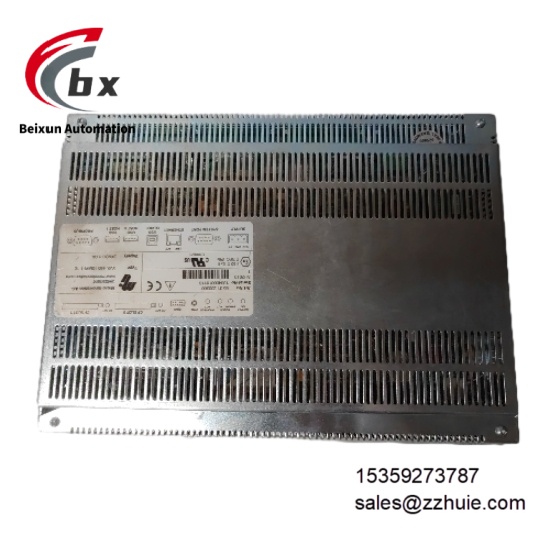

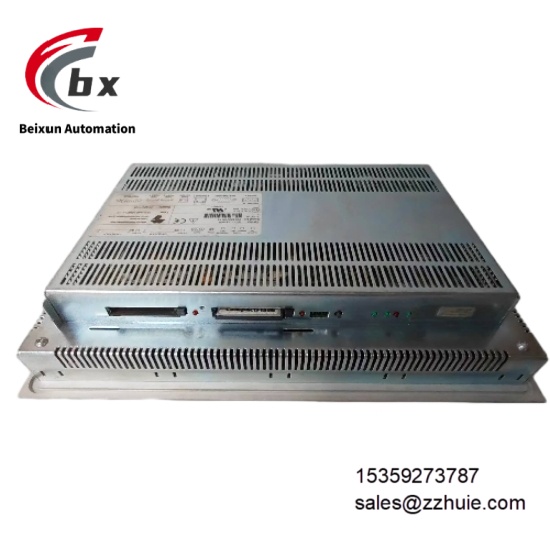

EATON XVS-440-10MPI-1-10 Industrial grade Human Machine Interface (HMI)
Specific Parameters
Electrical Parameters
Processor: Industrial-grade ARM Cortex-A9 single-core processor, 800MHz clock speedMemory Configuration: 256MB DDR3 RAM, 512MB Flash storage, supports MicroSD card expansion (up to 32GB)Display Specifications: 10-inch TFT true-color LCD screen, resolution 800×480 pixels, brightness 350cd/m², contrast ratio 500:1Touch Type: Resistive touch screen, supporting single-point touch, touch life ≥1 million timesCommunication Interfaces: 1 MPI interface, 2 Ethernet ports (10/100Mbps), 2 RS-485 serial ports, 1 USB 2.0 Host interfaceSupported Protocols: MPI, Profinet IO/IRT, Modbus TCP/RTU, EtherNet/IP, OPC UAPower Supply: 24V DC (±15% fluctuation tolerance), typical power consumption 8W, maximum power consumption 12WPower Protection: Equipped with overvoltage, overcurrent and reverse connection protection functions, protection threshold 28V DC
Mechanical Parameters
Overall Dimensions: 271mm (W) × 212mm (H) × 55mm (D), compact design suitable for standard control cabinetsWeight: Approximately 1.2kg, lightweight for panel-embedded installationMounting Method: Panel-embedded installation, cutout size 259mm×199mm, installation depth ≤55mmHousing Material: Flame-retardant engineering plastic (UL94 V-0 grade), front panel protection rating IP65, body protection rating IP20Heat Dissipation: Natural heat dissipation, fanless design to avoid dust accumulationOperation Buttons: 1 emergency stop button (programmable), 4 function shortcut keys (customizable configuration)Interface Layout: Communication and power interfaces centrally arranged at the bottom for easy wiring and maintenance
Environmental Parameters
Operating Temperature: 0℃ to 50℃ (non-condensing environment)Storage Temperature: -20℃ to 60℃, meeting storage and transportation environment requirementsRelative Humidity: 10% to 90% (non-condensing, compliant with IEC 60068-2-3 standard)Protection Rating: Front panel IP65 (dustproof and waterproof), body IP20 (dustproof)EMC Compliance: Meets EN 55022 Class A (emission limits) and EN 55024 (immunity) standardsVibration Resistance: 10-500Hz frequency range, 1g acceleration (sine wave), 30 minutes of continuous testing per axisShock Resistance: 15g acceleration (11ms half-sine wave), meeting transportation and equipment start-stop shock requirements
Product Performance
Excellent visualization effect: 10-inch high-definition display and 350cd/m² high brightness remain clearly visible in strong industrial light environments with accurate color reproductionWide communication compatibility: Supports mainstream industrial protocols such as MPI and Profinet, can be directly connected to Siemens S7-300/400 PLC and Eaton XC series PLC without protocol conversionSensitive operation response: Resistive touch screen has a touch response time ≤5ms, and key operations are delay-free, adapting to frequent operation needs in industrial scenariosHigh operational stability: Fanless natural heat dissipation design and industrial-grade components ensure a Mean Time Between Failures (MTBF) of ≥150,000 hours, with no lag during long-term operationEfficient configuration: Supports Eaton EasyBuilder configuration software, providing a rich library of graphics and controls, allowing ordinary technicians to quickly complete interface developmentReliable protection performance: Front panel IP65 protection can resist workshop dust, moisture and slight liquid splashes, adapting to harsh industrial operating environments
