Eaton XV-440-10TVB-1-13-1 Touch screen human-machine interface

Eaton XV-440-10TVB-1-13-1 Touch screen human-machine interface

Specific Parameters

Brand Eaton (American Brand)

Product Series Eaton XV400 Series Industrial HMI

Product Type Industrial-Grade Touchscreen Human-Machine Interface (HMI)

Model XV-440-10TVB-1-13-1

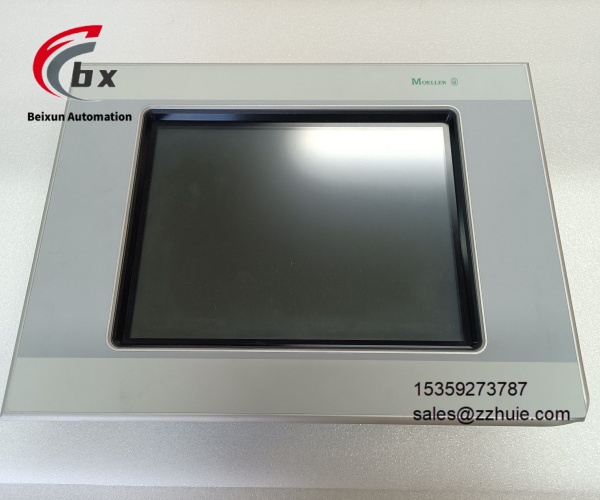

Display Type Color TFT LCD Screen

Screen Size 10.4 inches, diagonal length

Resolution VGA Level, 640×480 Pixels

Display Color Adjustable, 65536 Colors or 256 Colors

Touch Technology Infrared Touch, Non-Reflective

Supply Voltage 24VDC

Heat Dissipation Power 32W

Operating Temperature Range 0℃~50℃

Storage Temperature Range -20℃~60℃

Protection Level IP65 (Front), IP20 (Rear), Compliant with IEC/EN 60529 Standard

Communication Interfaces 1×Ethernet 100base-TX/10base-T, 1×RS232, 1×CAN/easyNet, 1×USB Host, 1×USB Device

Operating System Windows CE (Separate License Required)

Expansion Slots 2 CompactFlash™ Card Slots, 2 Communication Module Slots

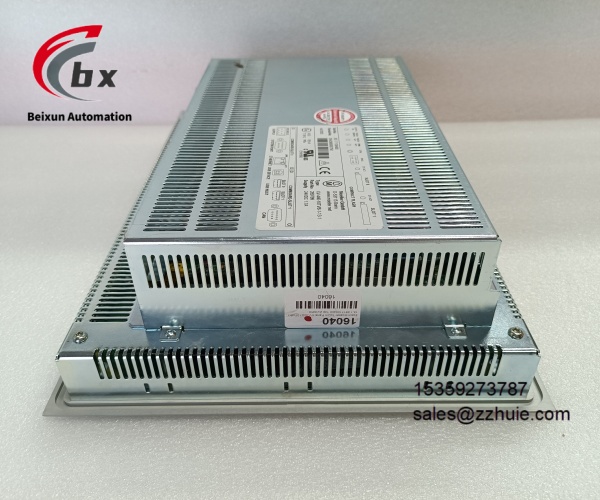

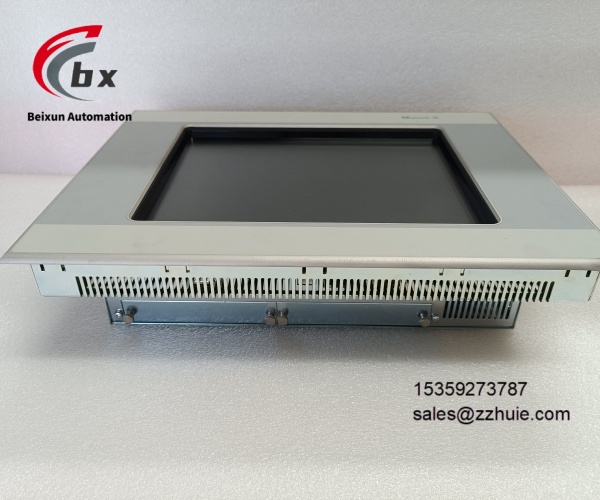

Panel Design Four-hole Front with Standard Film, Laminated Safety Glass, Metal Housing and Front Panel

Installation Method Embedded Installation

Certification Compliant with UL508, cUL Certification Standards

Physical Weight Approximately 2kg

Origin Switzerland

Product Performance

The infrared touch technology responds sensitively and supports operation with thin gloves. The non-reflective laminated glass panel can display clearly in strong light environments, ensuring operational accuracy and visibility under various working conditions in industrial sites.

Multi-communication interface and protocol compatibility enable seamless connection to various PLCs, inverters and automation equipment. The combination of Ethernet and CAN bus realizes distributed system networking with stable and efficient data transmission.

Supports PLC function expansion. PLC functions can be integrated by installing a dedicated license (Item No. 140390 LIC-PLC-MXP-MEDIUM), reducing system hardware components and lowering integration costs and complexity.

IP65 front protection level effectively prevents dust and low-pressure water jets. The metal housing is shock-resistant and vibration-resistant, adapting to dusty, humid and high-interference industrial environments with excellent long-term operation stability.

65536-color high-definition display combined with 640×480 resolution can clearly present process flows, parameter data and alarm information, and the vertical display format is suitable for complex interface layout requirements.

The expansion slot design supports flexible upgrades, expands storage capacity through CompactFlash cards, and can be equipped with optional communication modules to expand interface types, adapting to the needs of automation projects of different scales.

Reasonable heat dissipation design of 32W and wide operating temperature range ensure no overheating risk of the equipment under continuous operation conditions, meeting the 24-hour uninterrupted operation needs of industrial sites.
