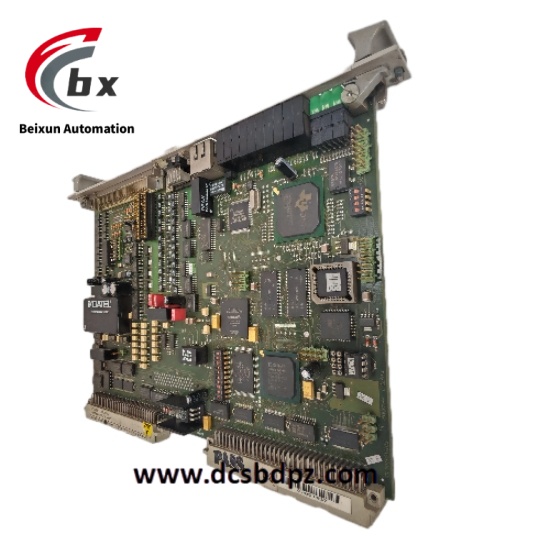

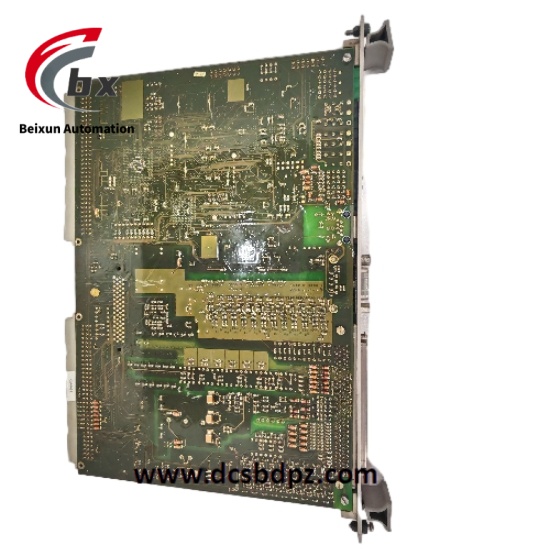

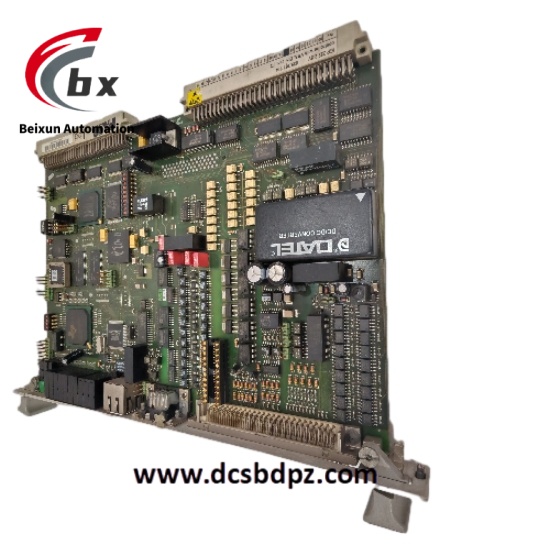

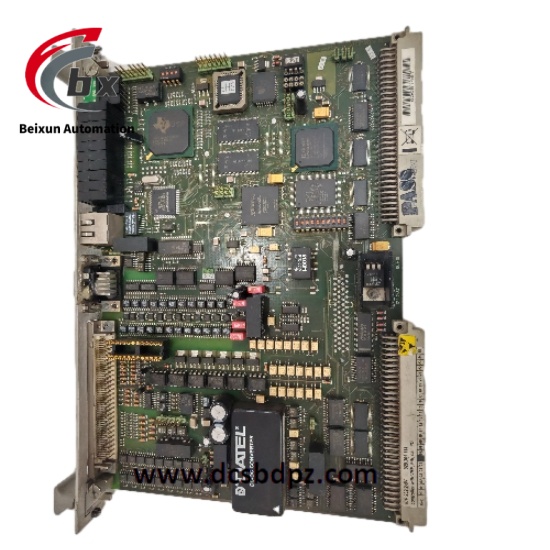

DATEL ICP232.2-5V 029.361114 logical operator

Input Voltage: 5V DC ±10% (standard industrial power supply range)

Rated Power Consumption: ≤100mW (static working state)

Logic Operation Type: Supports Boolean logic (AND/OR/NOT), data comparison, signal triggering

Input Signal Type: TTL/CMOS level (compatible with 3.3V/5V signals)

Output Signal Type: TTL level (high level ≥3.3V, low level ≤0.3V)

Communication Interface: RS485/CAN bus (supports Modbus-RTU protocol)

Data Transmission Rate: Up to 115200bps (configurable via DIP switches)

Isolation Voltage: 2.5kVrms (between input and output, duration 1 minute)

Protection Function: Overvoltage protection (trigger threshold 6.5V DC), overcurrent protection (current limit 500mA)

Operating Temperature Range: -20℃ to +70℃ (no condensation)

Storage Temperature Range: -40℃ to +85℃

Relative Humidity: 5% to 95% RH (no condensation at 40℃)

Vibration Resistance: Complies with IEC 60068-2-6 standard (10Hz-2000Hz, 5g acceleration, 30 minutes per axis)

EMC Immunity: Complies with EN 61000-6-2 standard (ESD ±8kV contact discharge, ±15kV air discharge)

Protection Class: IP20 (dust-proof design, not suitable for liquid immersion)

Mounting Method: 35mm standard DIN rail mounting (compatible with standard mounting positions of industrial control cabinets)

Overall Dimensions (L×W×H): 90mm×50mm×25mm (excluding terminals)

Net Weight: 120g (including housing and internal components)

Housing Material: Flame-retardant ABS plastic (UL94 V-0 grade)

Wiring Method: Screw crimp terminals (suitable for conductor cross-sectional area 0.2-1.5mm²)

Status Indication: LED indicators (1 for power, 1 for communication, 1 for fault, all dual-color display)

High-Precision Logic Operation: Built-in high-speed logic processing unit, single logic instruction execution delay ≤1μs, supporting parallel processing of 32-channel input signals, ensuring millisecond-level response requirements in industrial control scenarios.
Strong Anti-Interference Ability: Through EMC design and signal filtering circuit, the signal transmission bit error rate remains ≤0.001% even in an electromagnetic radiation environment of 10V/m, adapting to the complex electromagnetic environment of factory workshops.
Wide Voltage Adaptability: The input voltage tolerance of 5V DC±10% can be compatible with voltage fluctuations of industrial power supplies, maintaining stable output signals in the range of 4.5V to 5.5V without additional voltage stabilization modules.
Reliable Protection Mechanism: The response time of overvoltage and overcurrent protection circuits is ≤100μs. When the input voltage exceeds 6.5V or the output current exceeds 500mA, the module automatically cuts off the output to prevent equipment damage.
Flexible Integration Ability: Standardized DIN rail mounting and multi-protocol communication support can be directly connected to existing industrial automation networks, compatible with SCADA, PLC and other control systems. Modules support cascade expansion, and a single bus can connect 32 devices.
