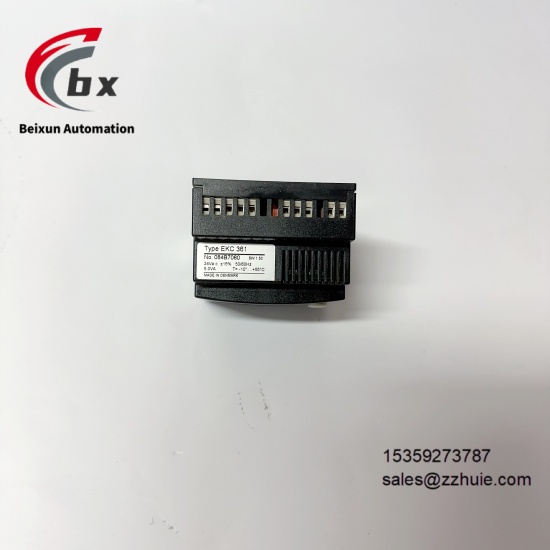

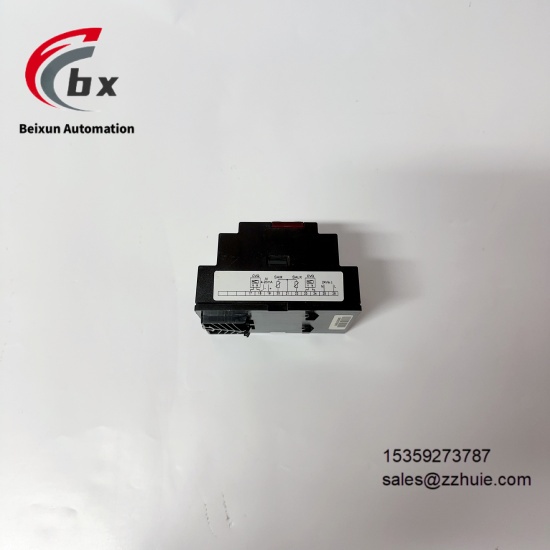

DANFOSS EKC 361 Electronic medium temperature controller module

DANFOSS EKC 361 Electronic medium temperature controller module

Specific Parameters​

Control and Precision Parameters​

Temperature Control Precision ±0.25℃, maintaining stable precision after the transition period​

Regulation Function Built-in PID regulation algorithm, supporting P0 evaporation temperature limitation function​

Temperature Difference Range 5℃ to 27℃ between cut-off and turn-on temperature, fixed 4℃ temperature difference in heating mode​

Sensor Compatibility Compatible with AKS series Pt1000 temperature sensors​

Control Logic Direct operating system, no internal control loop, pressure-independent valve control​

Alarm Function Supports low temperature, system shutdown and other status alarms, with status code display function​

Electrical and Interface Parameters​

Operating Voltage Adapts to 12V AC transformer power supply, compatible with standard industrial power supplies​

Power Frequency Supports 50Hz/60Hz dual-frequency setting, 50Hz corresponds to parameter value 0, 60Hz corresponds to parameter value 1​

Analog Input Supports temperature reference offset signal input​

Analog Output Output signal corresponds to temperature running display value (non-ICM valve control mode)​

Communication Expansion Reserved data communication module installation position, supporting connection of communication cards such as EKA 175​

Display Interface Compatible with EKA 162, EKA 165 remote setting displays​

Wiring Specification Complies with RC 8 AC document standards, wire length parameters refer to Appendix 2 standards​

Mechanical and Environmental Parameters​

Overall Dimensions Adopting compact design, adapting to standard control cabinet installation space​

Mounting Method Supports independent wall-mounted installation, requiring reserved space for communication cable routing​

Protection Characteristics Using industrial-grade components, adapting to commercial and industrial environment operation needs​

Operating Temperature Adapts to the normal operating environment temperature range of refrigeration systems​

Storage Temperature Meets extreme storage conditions of -20℃ to 70℃​

Product Performance​

High temperature control precision, ±0.25℃ stable precision ensures minimal medium temperature fluctuation​

Fast regulation response, PID algorithm quickly corrects temperature deviation and shortens system stabilization time​

Strong function adaptability, supporting evaporation temperature limitation and reference offset to meet diverse control needs​

Excellent expansion capability, compatible with communication modules and display devices to achieve remote monitoring and programming​

Good operational convenience, supporting factory parameter reset and multi-language interface configuration via AKM software​

High operational reliability, industrial-grade component selection, adapting to long-term continuous operation of refrigeration systems​

Comprehensive alarm mechanism, real-time monitoring of operating status, triggering status code prompts when abnormal​

Significant energy-saving effect, optimizing cooling cycle and defrosting interval, reducing unnecessary energy consumption​
