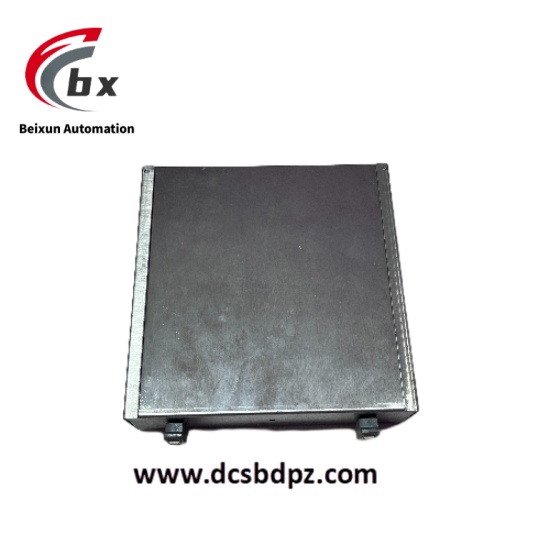

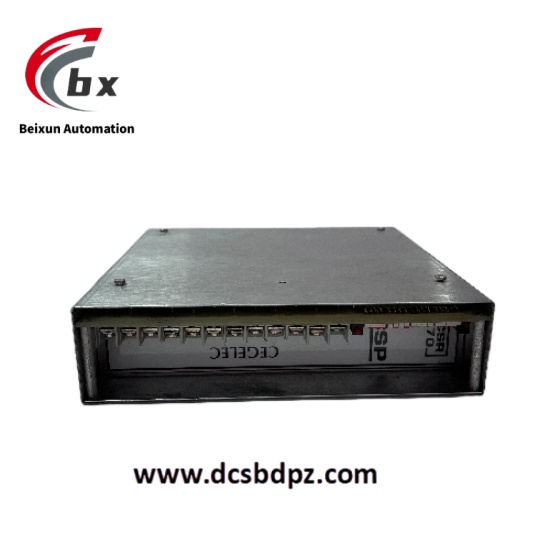

CSP CSR70 High density DC-DC power module

Specific Parameters

Electrical Parameters

Input Voltage Range: 18V DC – 75V DC (wide voltage adaptation)

Output Voltage Specifications: 5V DC/12V DC/24V DC (three gears optional, output accuracy ±2%)

Rated Output Power: 70W (continuous output, 25℃ ambient temperature)

Peak Output Power: 105W (duration 30 seconds, no overcurrent protection trigger)

Conversion Efficiency: Typical value 92% (under full load condition), minimum value 88% (at 18V DC input voltage)

Output Ripple and Noise: ≤50mV (peak-to-peak, measured at 20MHz bandwidth)

Input Current: No-load ≤10mA, full-load ≤6A (at 24V DC output)

Isolation Voltage: 2500Vrms (between input and output, no breakdown for 1 minute)

Protection Functions: Overvoltage protection (triggered at 120% rated output voltage, automatic recovery), overcurrent protection (triggered at 150% rated current, current limiting mode), overheating protection (triggered at 105℃ case temperature, output shutdown)

Environmental Parameters

Operating Temperature Range: -20℃ to +70℃ (no condensation, no derating of output power in full temperature range)

Storage Temperature Range: -40℃ to +85℃ (no condensation)

Relative Humidity: 5% to 95% (when temperature ≤40℃, no condensation)

Protection Class: IP20 (module body, dust-proof design)

Vibration Resistance: Complies with IEC 60068-2-6 standard (10Hz-2000Hz, 5g acceleration, 30 minutes per axis direction)

Shock Resistance: Complies with IEC 60068-2-27 standard (50g peak acceleration, 11ms duration)

EMC Compliance: Emission meets EN 61000-6-4 Class B, immunity meets EN 61000-6-2

Physical Parameters

Mounting Type: 35mm standard DIN rail mounting / panel screw fixing (compatible with both methods)

Overall Dimensions (L×W×H): 120mm×60mm×30mm (excluding connector protrusions)

Net Weight: 200g (including heat sink)

Housing Material: Flame-retardant ABS plastic (UL94 V-0 grade, temperature resistance 120℃)

Connector Type: Phoenix terminal (input/output, 5.08mm pitch, compatible with 1.5-2.5mm² wires)

Status Indication: Dual-color LED indicator (green: normal output; red: fault alarm)

Product Performance

Efficient and Energy-Saving Operation: 92% high conversion efficiency reduces energy loss. When operating at 70W full load, the annual power consumption is reduced by approximately 180 kWh compared to ordinary power modules (85% efficiency), adapting to industrial energy-saving transformation scenarios.
Stable Output in Wide Temperature Range: No derating operation in the full temperature range of -20℃ to +70℃, no start-up delay in low-temperature environment, and output voltage drift ≤1% during 72-hour continuous operation at high temperature (+70℃), adapting to severe cold workshops and high-temperature equipment cabins.
Strong Anti-Interference Ability: Built-in EMC filter circuit and metal shielding housing, in the environment of inverter clusters and high-frequency signal equipment, the output ripple is stably ≤50mV, ensuring the normal operation of precision equipment such as PLCs and sensors.
Fast Fault Protection: Overvoltage, overcurrent and overheating protection response time ≤100μs, which can cut off the output instantly when the circuit is abnormal, avoiding damage to downstream equipment; automatic power recovery after fault elimination, no manual restart required.
Flexible Integration and Adaptation: Compact size (120×60×30mm) saves control cabinet space, supporting side-by-side installation of multiple modules; Phoenix terminal design facilitates quick wiring, with wiring efficiency increased by 50% compared to traditional terminals.
