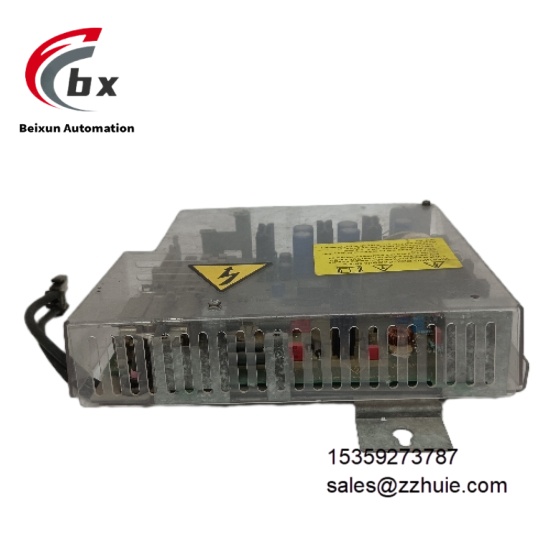

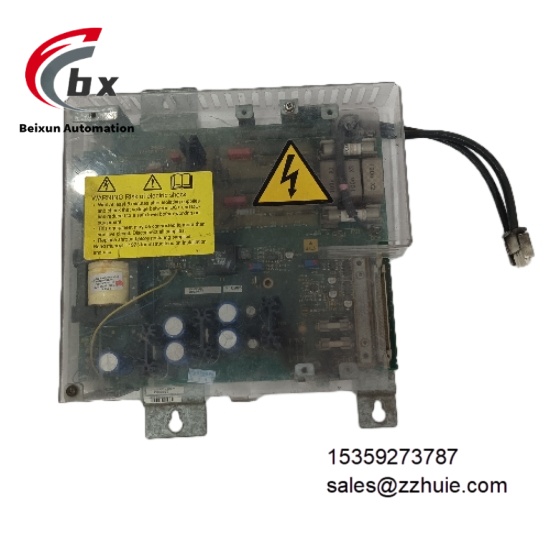

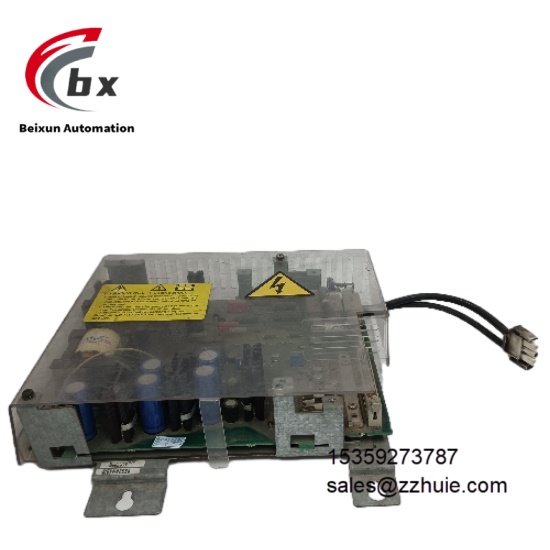

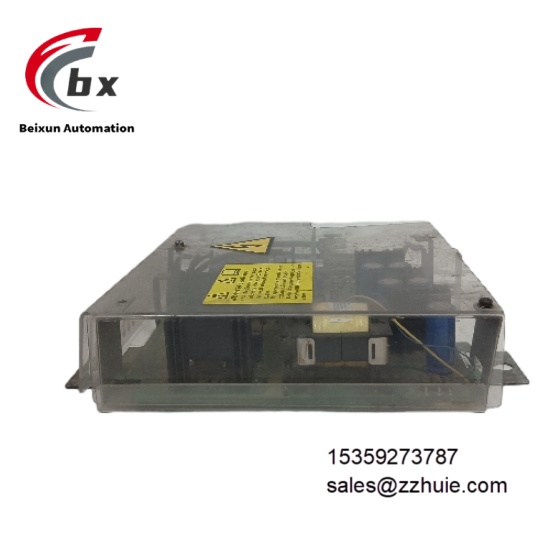

CONVERTEAM MVC3003-4030PP Servo drive module

CONVERTEAM MVC3003-4030PP Servo drive module

Specific Parameters

• Electrical ParametersRated Power: 3 kWRated Voltage: 400 VRated Current: 7.5 AControl Modes: Speed control, position control, torque control; supports vector control and V/F controlSpeed Control Range: 0 to 3000 rpmPosition Control Precision: ±0.01%Communication Protocols: Natively supports CANopen, Modbus, PROFIBUS DP protocolsCommunication Interfaces: 1-2 PROFIBUS DP electrical interfaces, 1-2 155Mbps fiber optic interfacesFiber Optic Transmission Distance: Up to 20 kmProtection Functions: Overload protection, overvoltage protection, undervoltage protection, overheating protectionElectrical Isolation: Signal ports with electrical isolation protection
• Environmental ParametersOperating Temperature: -10℃ to 55℃ (non-condensing environment)Storage Temperature: -40℃ to 85℃Relative Humidity: 5% to 95% (non-condensing)Protection Rating: IP20 (module itself)Vibration Resistance: Complies with IEC 60068-2-6 standard, 1.5g acceleration in 10-500Hz frequency rangeShock Resistance: Complies with IEC 60068-2-27 standard, 15g acceleration (11ms duration)Certification Standards: Complies with EMC and safety standards for industrial drive equipment
• Mechanical ParametersOverall Dimensions: Compatible with standard servo drive module specifications, adopting compact designMounting Method: DIN rail mounting or flange mounting, compatible with industrial standard installation architectureIndicators: 6 dual-color LED indicators, real-time feedback of power, communication link and operating statusTerminal Type: Removable terminals, supporting 12-24Vdc input/output signalsAlarm Output: Fiber optic link and power failure relay output alarm

Product Performance

Excellent control precision: Position control precision reaches ±0.01%, speed control response delay < 10ms, meeting the micron-level motion control requirements of precision processing equipment. Outstanding bus redundancy capability: Adopts proprietary CI-RING protocol, enabling dual fiber optic ring redundancy without configuration; automatically rebuilds links within 10ms when fiber optic fails, ensuring uninterrupted system communication.

High operating efficiency: Adopts advanced vector control technology and thermal management design, with efficiency ≥95% under rated conditions; housing temperature rise ≤40K during continuous operation, reducing energy loss. Comprehensive protection mechanisms: Integrates multiple electrical protection functions, which can real-time monitor abnormal states such as overload and overvoltage and cut off output quickly, avoiding damage to motors and modules.

Strong system compatibility: Supports mainstream industrial communication protocols and control modes, can be connected to PLC and motion control systems without additional adaptation modules; modular design reduces installation and commissioning time by more than 40%. Mean Time Between Failures (MTBF) ≥5×10⁴ hours, meeting the long-cycle operation requirements of industrial equipment.
