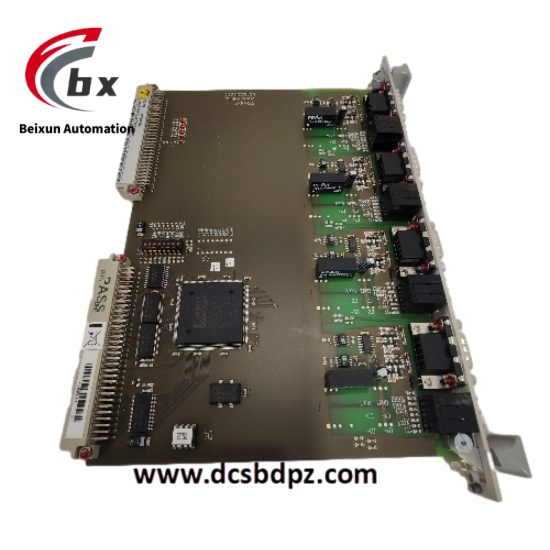

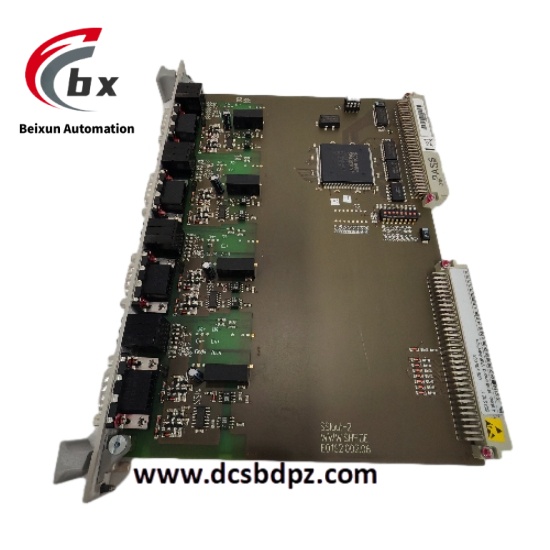

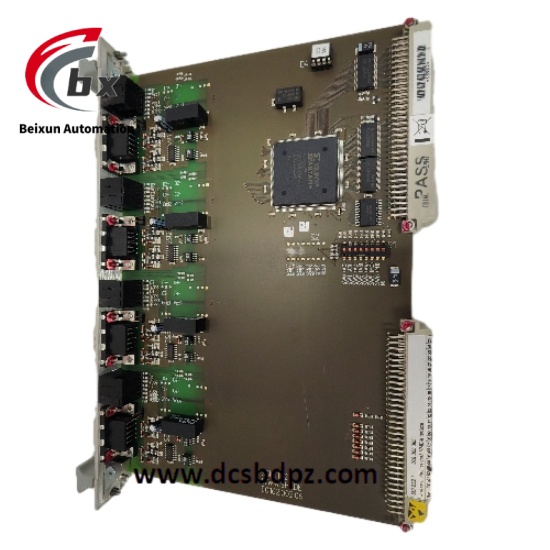

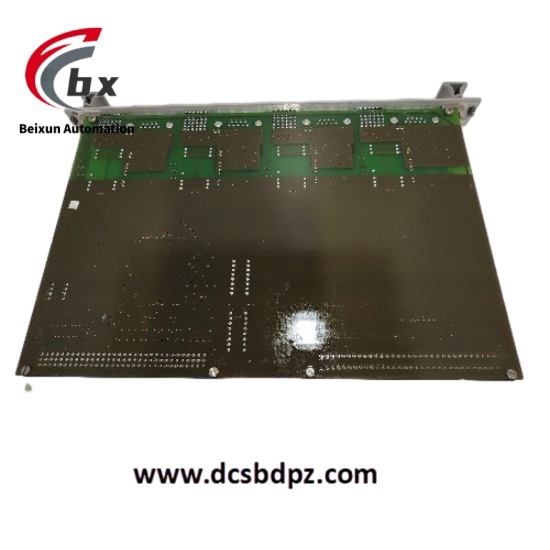

CONCURRENT SSI232.1 029.365.083 Serial communication interface module

Specific Parameters

Electrical Parameters
Operating Voltage: 24V DC
Interface Types: RS-232, RS-485, SSI synchronous serial interface
Transmission Rate: Supports high-speed data transmission (industrial automation grade)
Signal Types: Digital communication signals, encoder position signals
Protection Mechanism: Built-in electrical isolation circuit
Environmental Parameters
Operating Temperature: -20°C to 70°C
Storage Temperature: -25°C to 70°C
Relative Humidity: 5% to 95% (non-condensing)
Vibration Resistance: Compliant with industrial-grade vibration standards
EMC Compliance: Meets CE EMI/EMC specifications
Mechanical Parameters
Dimensions: 135mm×186mm×119mm
Weight: 1.2kg
Mounting Methods: 35mm DIN rail mounting, panel mounting
Housing Material: Metal shielded enclosure

Product Performance

The SSI232.1 module adopts hardware-level signal isolation design with common mode rejection ratio ≥80dB, effectively resisting electromagnetic interference in industrial environments. It supports user-defined data formats and transmission rate configurations to adapt to different encoder protocol requirements. High-speed signal processing circuits ensure data transmission delay ≤1ms, meeting real-time control requirements.

Metal shielded housing and redundant design enhance vibration and shock resistance, maintaining stable operation within the wide temperature range of -20°C to 70°C. Mean Time Between Failures (MTBF) ≥80,000 hours, with function expansion support via firmware upgrade, compatible with mainstream industrial automation control systems.
