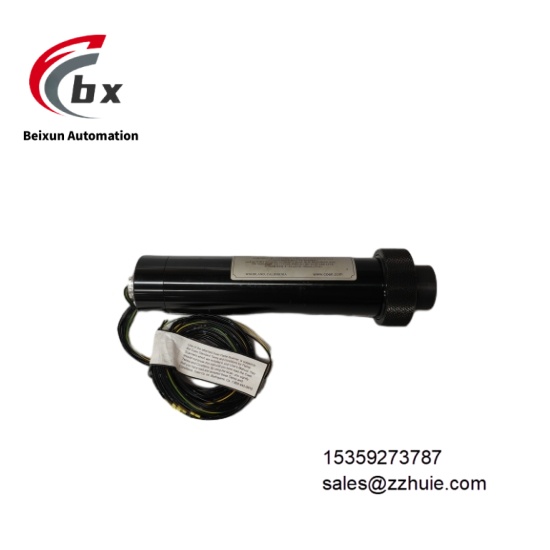

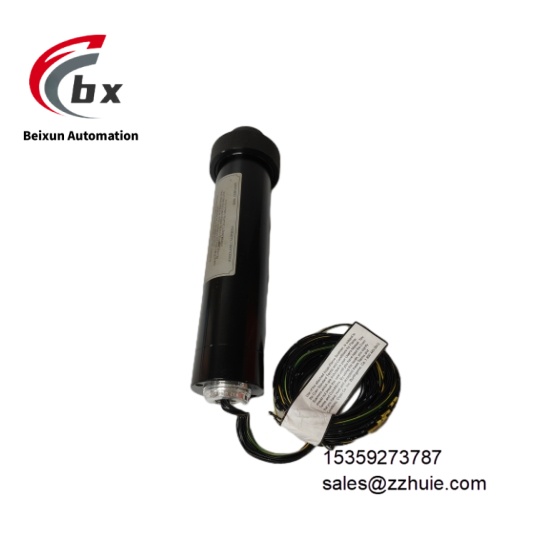

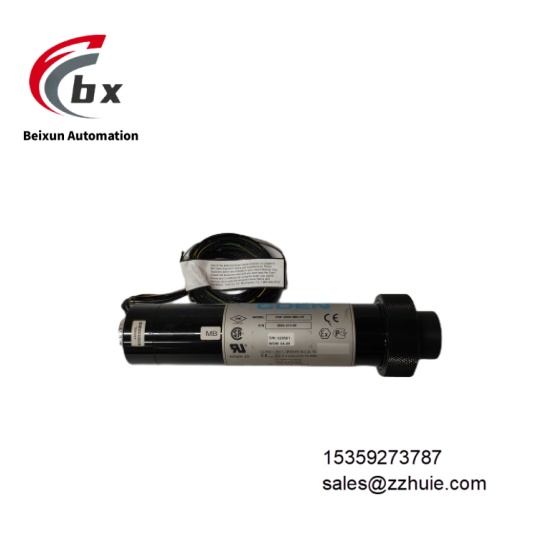

COEN ISCAN DSF-2000-MB-UV 2653-213-06 UV flame detector
Specific Parameters
Electrical Parameters
Power Supply Voltage: 115-230VAC 50/60Hz or 24VDCInput Type: Ultraviolet radiation signal 190nm-1100nmOutput Signal: 0-1mA DC analog signal, pulse width outputResponse Time: ≤100msWavelength Accuracy: ±0.1nmAbsorbance Range: 0-3 AbsCommunication Protocol: RS232/RS485 (Modbus/RTU), DNP3Protection Features: Flame extinction alarm, equipment fault self-inspection, overvoltage protectionInsulation Resistance: ≥100MΩ between channels and between channels and power supply (measured at 500V DC, normal temperature and state)Voltage Withstand Strength: ≥2500V AC (1 minute no breakdown, leakage current ≤1mA)Certification Standards: Compliant with industrial safety explosion-proof standards, UL, CE certifications
Mechanical Parameters
Overall Dimensions: Compatible with industrial burner installation standards, compact integrated designWeight: Approximately 1.8kgMounting Method: Flange mounting or fixed bracket mounting, compatible with single/multi-burner boilersHousing Material: Industrial-grade explosion-proof alloy material, anti-electromagnetic interferenceConnection Method: Shielded twisted-pair cable connection, supporting long-distance wiringProtection Rating: IP65/NEMA 4X, explosion-proof rating meets industrial safety standardsStatus Indication: Power (green), normal flame (yellow), fault alarm (red) LED indicators
Environmental Parameters
Operating Temperature: -10℃ to 50℃, full performance operation without deratingStorage Temperature: -20℃ to 60℃, meeting extreme storage and transportation requirementsRelative Humidity: 5% to 95% (non-condensing), suitable for high-humidity industrial scenariosVibration Resistance: 3g acceleration at 3Hz-57Hz frequency range, 5g acceleration at 57Hz-500Hz frequency range (sine wave)Shock Resistance: 15g acceleration (half-sine wave, duration 11ms), withstanding installation and transportation shocksEMC Compliance: Meets industrial EMC standards, resistant to external electromagnetic interference
Product Performance
Integrated design: Combines detection head and signal processor, eliminating the need for additional amplifiers and wiring costsExcellent detection accuracy: 190nm-1100nm wide wavelength range and ±0.1nm wavelength accuracy, avoiding false and missed alarmsFast response speed: ≤100ms rapid flame state recognition, timely triggering safety protection mechanismsComprehensive self-inspection function: Inspects core components every 10 seconds to ensure continuous and reliable operation of the equipmentStrong communication compatibility: Supports multi-protocol connection to industrial control systems for centralized monitoring and data transmissionHigh environmental adaptability: Explosion-proof and anti-interference design, suitable for harsh industrial combustion environmentsHigh operational stability: Industrial-grade alloy housing and strict quality control, ensuring excellent Mean Time Between Failures (MTBF)
