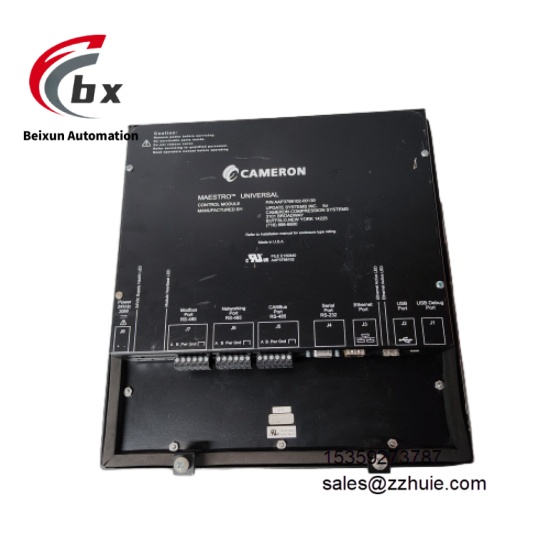

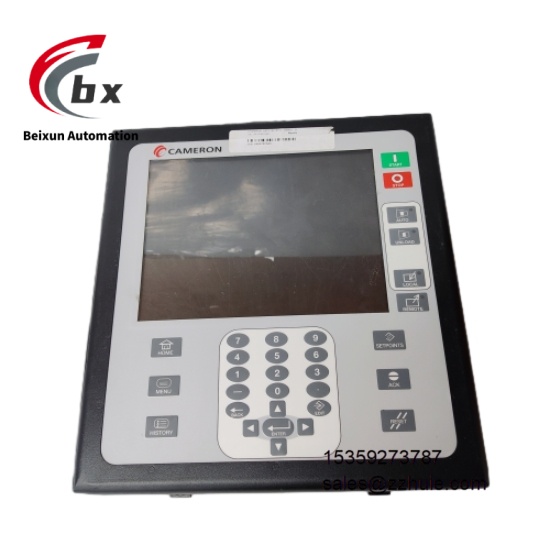

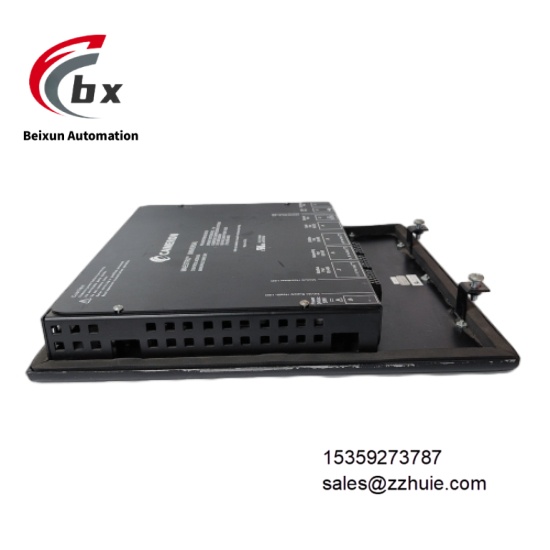

CAMERON AAP3798102-00130 Compressor control module
Specific Parameters
Electrical Parameters
Power Supply Voltage: 24VDC, 48VDC or 200-240VACInput Signal Type: Analog signal, digital signalOutput Signal Type: Analog signal, relay signalControl Accuracy: ±0.1%FSMaximum Output Current: 2AMaximum Input Power: 50WControl Mode: PID controlCommunication Protocol: Ethernet (Modbus/TCP), RS-485 (Modbus/RTU)Protection Features: Overload protection, undervoltage protection, overvoltage protection, overtemperature protectionInsulation Resistance: ≥100MΩ between channels and between channels and power supply (measured at 500V DC, normal temperature and state)Voltage Withstand Strength: ≥2500V AC (1 minute no breakdown, leakage current ≤1mA)Certification Standards: Compliant with relevant certification standards for industrial control equipment
Mechanical Parameters
Overall Dimensions: 200mm×150mm×80mmWeight: Approximately 2kgMounting Method: Rack-mounted, compatible with standard industrial control cabinetsHousing Material: Aluminum alloy, anti-electromagnetic interferenceConnection Method: Plug-in terminal blocks, compatible with shielded cablesDisplay Method: High-definition digital display screen, real-time feedback of operating parametersProtection Rating: IP65/NEMA 4X, dustproof and splashproofStatus Indication: Power (green), operation (yellow), fault (red) LED indicators
Environmental Parameters
Operating Temperature: -40℃ to 85℃, full performance operation without deratingStorage Temperature: -23℃ to 60℃, meeting extreme storage and transportation requirementsRelative Humidity: 5% to 95% (non-condensing), suitable for high-humidity industrial scenariosVibration Resistance: 3g acceleration at 3Hz-57Hz frequency range, 5g acceleration at 57Hz-500Hz frequency range (sine wave)Shock Resistance: 15g acceleration (half-sine wave, duration 11ms), withstanding installation and transportation shocksEMC Compliance: Meets industrial EMC standards with strong resistance to external interference
Product Performance
Excellent control accuracy: ±0.1%FS measurement accuracy combined with PID algorithm ensures stable and controllable compressor parametersWide signal compatibility: Supports analog and digital input/output, adapting to various sensors and actuatorsIntuitive and easy operation: High-definition display screen real-time presents operating status with clear fault informationFlexible communication integration: Multi-protocol support enables seamless connection to PLC, DCS and other industrial automation systemsReliable protection performance: IP65/NEMA 4X protection and aluminum alloy housing adapt to harsh industrial environmentsStrong programmability: Supports complex control logic and algorithm programming to meet personalized application needsHigh operational stability: Redundant design and strict quality control ensure excellent Mean Time Between Failures (MTBF)
