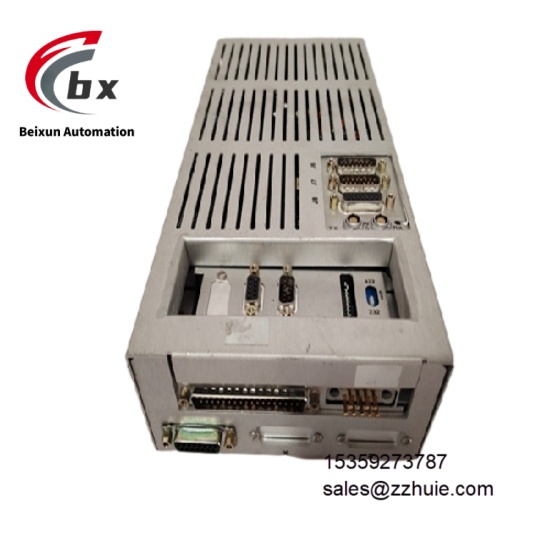

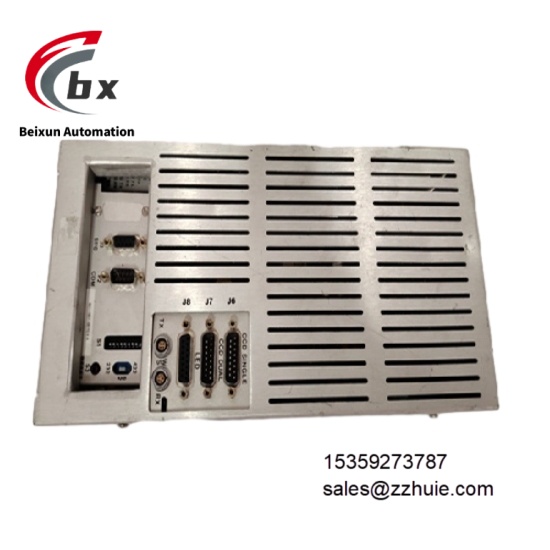

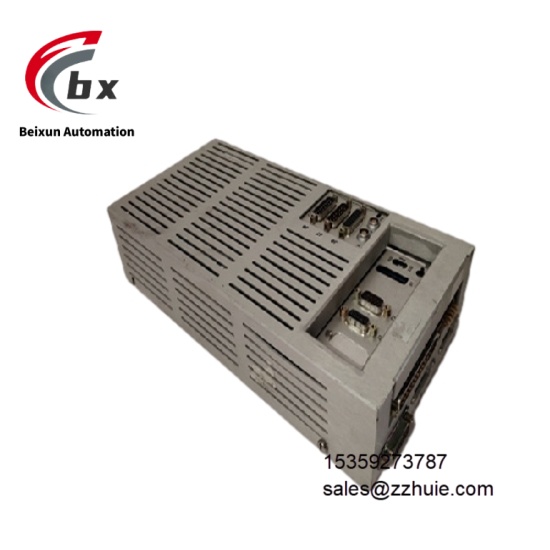

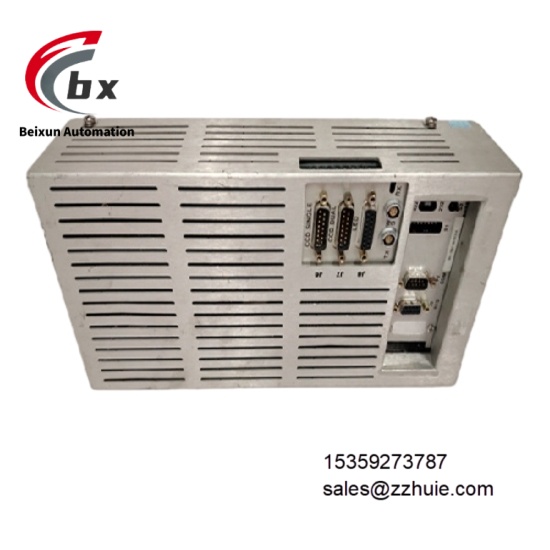

Brooks Automation 001-4130-03 Gas flow control signal processing module

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC ±5%, supporting 22-26V DC wide-range input
Input Signals: 2-channel analog input (4-20mA DC, corresponding to MFC flow feedback), 1-channel digital input (calibration trigger signal)
Output Signals: 2-channel analog output (4-20mA DC, corresponding to flow control command), 2-channel digital output (fault alarm/calibration completion)
Communication Protocol: Supports Modbus RTU (RS485 interface), data transmission rate 9600-115200bps adjustable
Signal Accuracy: Analog signal conversion error ≤±0.1% FS, linearity error ≤±0.05% FS
Isolation Level: 2.5kV AC (1 minute) between input/output signals and system, photoelectric isolation for communication interface
Calibration Function: Supports external trigger zero/full-scale calibration, calibration accuracy ±0.02% FS
Power Consumption: ≤8W under normal operation, ≤12W in calibration mode
Environmental Parameters
Operating Temperature: 0°C to 55°C, continuous operation without condensation
Storage Temperature: -40°C to 85°C
Relative Humidity: 10% to 90% (non-condensing, stable operation at 40°C/85% humidity)
EMC Immunity: Compliant with EN 61326-1 (industrial grade), common mode rejection ratio ≥130dB, differential mode rejection ratio ≥80dB
Vibration Resistance: 10-500Hz, 0.5g acceleration (IEC 60068-2-6 standard)
Shock Resistance: 10g acceleration, 11ms duration (IEC 60068-2-27 standard)
Protection Class: IP20 (board-level protection, requiring cleanroom cabinet for use)
Cleanliness Level: Compatible with ISO Class 5 cleanroom environment, surface particle residue ≤10 particles/ft³ (≥0.5μm)
Mechanical Parameters
Dimensions: 152mm (L) × 102mm (W) × 25mm (H), compatible with standard 19-inch cabinet drawer mounting
Mounting Method: Rail mounting (compatible with DIN 35mm rail) or screw fixing mounting
Interface Type: Phoenix terminals (power/analog I/O), DB9 pin interface (digital communication/calibration)
Housing Material: Flame-retardant epoxy resin substrate (UL 94 V-0 grade), silicone-free surface
Weight: Approximately 280g
Indicators: Power (PWR, green), running (RUN, green), calibration (CAL, yellow), fault (ERR, red)

Product Performance

The module adopts 24-bit high-precision A/D and D/A conversion chips, with a flow signal sampling rate of 1kHz, which can capture small fluctuations in MFC flow in real time, ensuring control command response delay ≤100ms. Integrated with digital filtering algorithm (filter coefficient 0.1-10 adjustable), it effectively suppresses electromagnetic noise in industrial sites and maintains signal stability in the strong interference environment of semiconductor cleanrooms.

It supports two calibration modes: offline and online. Online calibration does not require disconnecting the MFC connection, which can be triggered by Modbus commands. The calibration process takes ≤30 seconds and does not affect production continuity. The fault diagnosis function can real-time monitor faults such as power abnormality, signal over-limit and communication interruption, with fault coverage ≥99%. Fault information is reported through both digital output and communication bus, facilitating quick problem location.

Fully compatible with Brooks SLA5800 and GF125 series MFC, and also supports third-party MFC (parameter configuration required), adapting to multi-brand gas control loops. The mean time between failures (MTBF) is ≥600,000 hours, meeting the 7×24-hour continuous production needs of the semiconductor industry.
