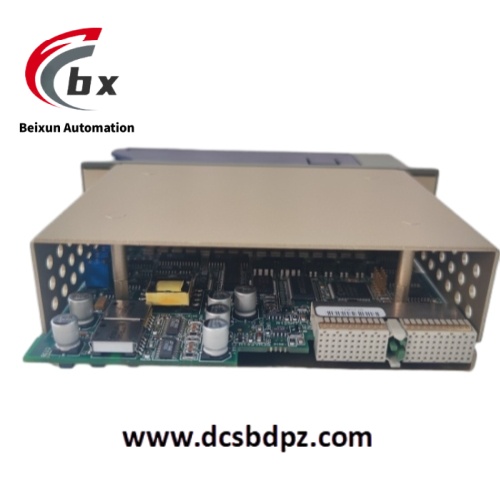

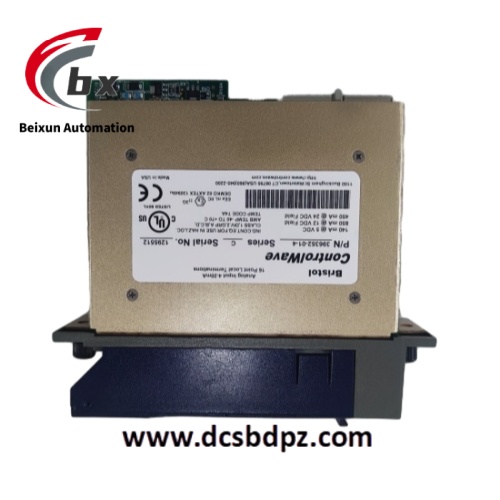

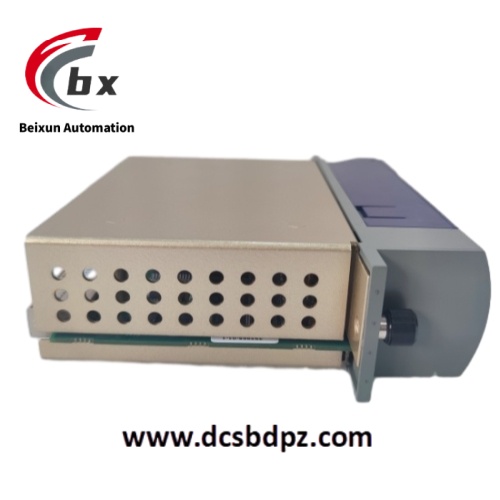

Bristol Babcock 396352-01-4 Analog input module

Specific Parameters

Electrical Parameters
Operating Voltage: 24V DC ±10%
Channel Configuration: 8-channel differential analog input
Signal Types: Thermocouples (J/K/T/E/R/S/B types), RTDs (PT100/PT500/PT1000), Voltage (1-5V DC/±5V DC/±10V DC), Current (4-20mA DC/0-20mA DC)
Resolution: 16 bits
Isolation Level: 2500V AC between channels (1 minute), 2500V AC between input and system
Measurement Accuracy: ±0.1% of full scale (at 25°C ambient temperature)
Sampling Rate: 10Hz per channel
Communication Interfaces: Supports PROFIBUS-DP (31.25kbps) and CANopen (2Mbps) protocols
Environmental Parameters
Operating Temperature: -25°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing)
Vibration Resistance: 10g acceleration in 5-500Hz range (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration for 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Dimensions: 100mm×100mm×50mm (L×W×H)
Weight: Approximately 300g
Protection Class: IP20 (module itself)

Product Performance

396352-01-4 utilizes high-precision A/D conversion circuitry with temperature compensation to ensure measurement stability across the full range. Full electrical isolation between channels combined with hardware filtering provides common mode rejection ratio over 120dB, effectively eliminating electromagnetic interference and ground loops in industrial sites. Supports direct connection of multiple sensor types with software-configurable signal types, requiring no hardware adjustments.

Hot-swap capability allows module replacement during system operation without interrupting data acquisition from other channels. The module achieves a mean time between failures (MTBF) of ≥150,000 hours, meeting continuous industrial production requirements. The housing is constructed from flame-retardant material certified to UL 94 V-0, suitable for hazardous industrial environments.
