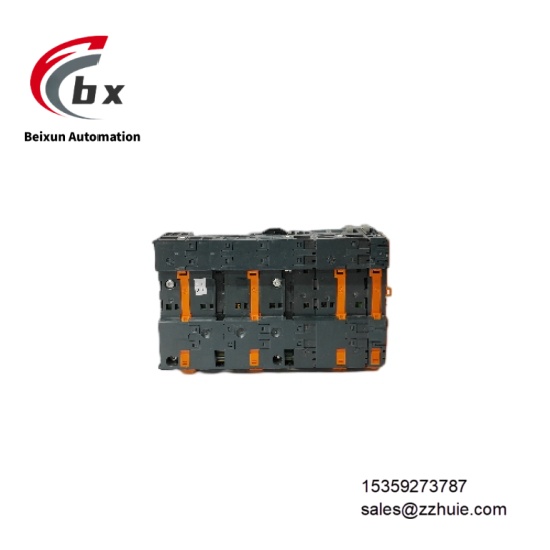

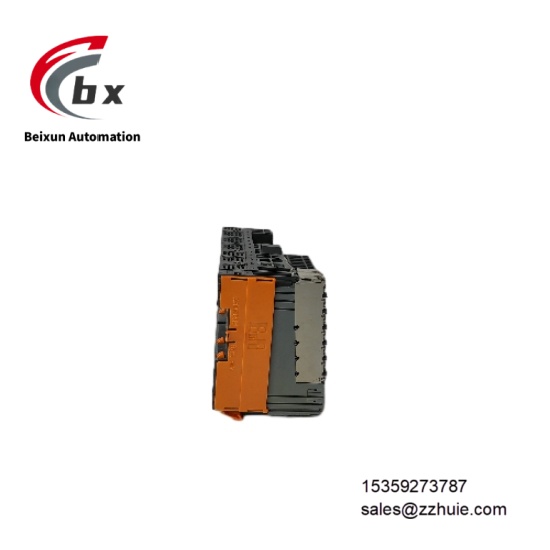

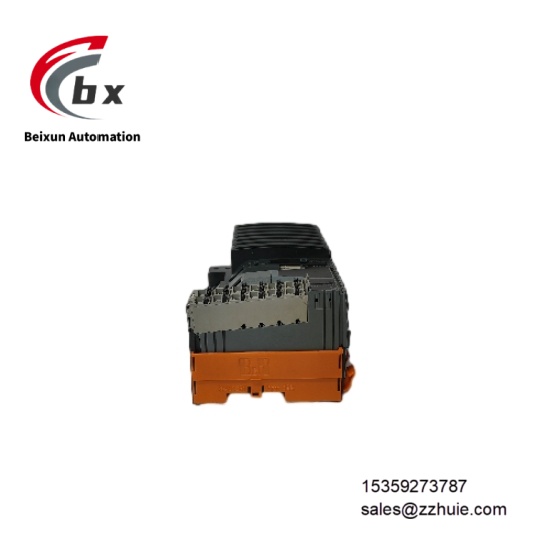

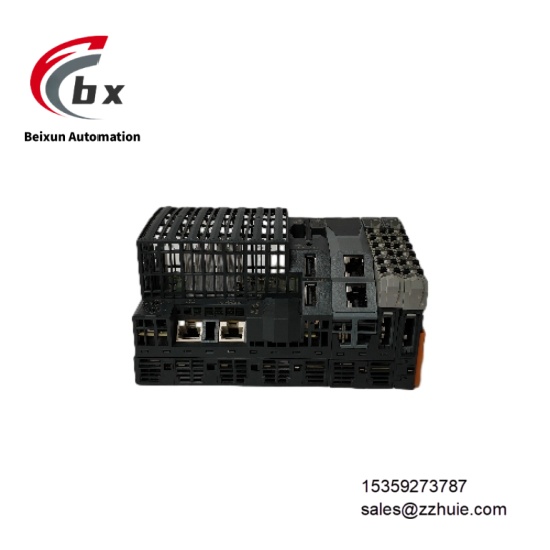

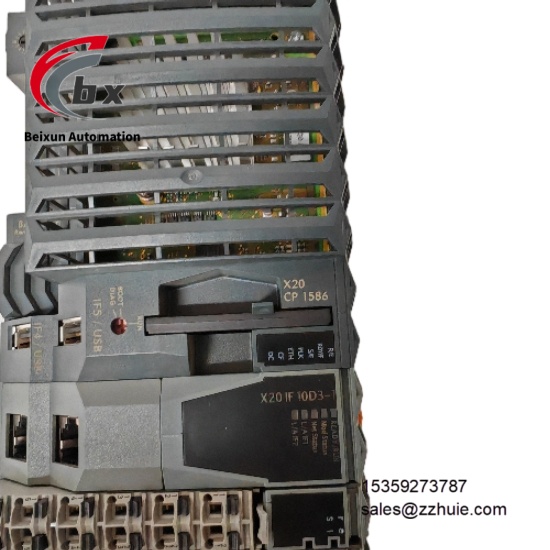

B&R X20CP1586 Programmable Logic Controller

Specific Parameters

Brand B&R (B&R Automation GmbH, Austria)

Product Series X20 Series PLC

Product Type Compact CPU Module

Model X20CP1586

Processor 32-bit ARM Cortex-A9, 800MHz clock frequency

Program Memory 512MB DDR3 SDRAM

Storage Memory 1GB Flash

Supported Programming Languages IEC 61131-3 standard languages (LD, FBD, ST, IL, CFC), ANSI C/C++

Real-Time Operating System B&R Automation Runtime

Communication Interfaces 2 Ethernet interfaces (10/100/1000 Mbps, supporting TCP/IP, EtherNet/IP, Profinet), 1 RS-232/RS-485 serial interface

Local Expansion Interface X20 bus interface (supports expansion of up to 64 X20 series I/O modules)

Operating Voltage 24V DC

Operating Current Typical value 400mA (24V DC), maximum value 600mA (24V DC)

Operating Temperature Range 0℃ – 60℃

Storage Temperature Range -25℃ – 70℃

Relative Humidity 5% – 95% Non-condensing

Protection Level IP20

Installation Method 35mm DIN rail mounting

Dimensions 120mm×80mm×62mm (L×W×H)

Weight Approximately 350g

Certification CE, UL, CSA, ATEX, IEC 61131-2

Real-Time Performance Logic instruction execution time ≤0.1μs/instruction

Product Performance

Equipped with high-performance 32-bit ARM Cortex-A9 processor with clock frequency up to 800MHz, combined with large-capacity memory, ensuring fast execution of control programs and excellent real-time response performance

Supports multiple industrial communication protocols and high-speed Ethernet interfaces, enabling high-speed data interaction with upper computers, industrial networks and third-party equipment, meeting distributed control needs

Compatible with the full range of X20 series I/O modules and function modules, with strong expandability, can flexibly configure the system according to on-site needs, adapting to control scenarios of different scales

Complies with IEC 61131-3 standard, supports multiple mainstream programming languages, and is compatible with ANSI C/C++, facilitating engineers to choose development methods according to needs and reducing development difficulty

Has excellent electromagnetic compatibility and anti-interference ability, can operate stably in industrial strong electromagnetic interference environments, ensuring the continuity and reliability of control functions

Adopts 24V DC standard industrial power supply, adapting to the conventional power supply environment of industrial sites, with strong versatility

Standard DIN rail mounting design, compact structure, convenient installation and disassembly, small installation space occupation, facilitating on-site layout and maintenance

Has a wide operating temperature range and high protection level, can adapt to complex temperature and environmental conditions of industrial sites, improving the overall stability of the system

Supports online programming and debugging functions, can modify program parameters in real time and monitor operation status, facilitating on-site debugging and later maintenance
