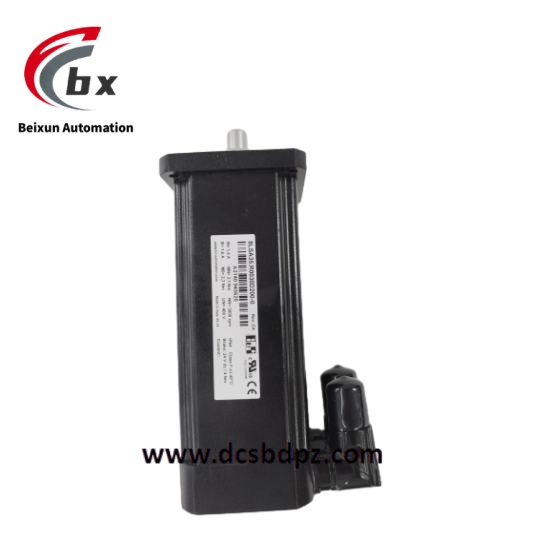

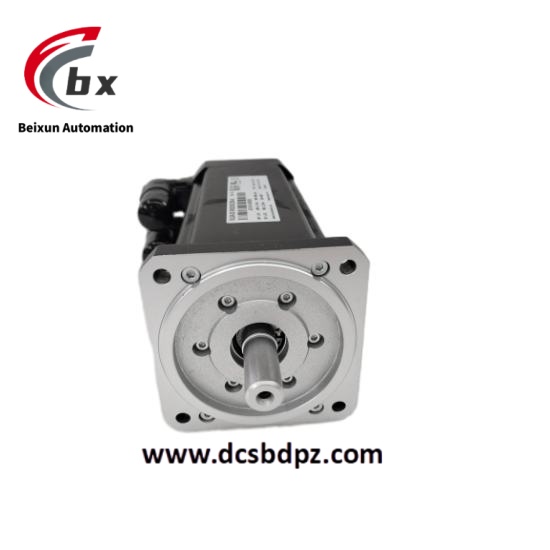

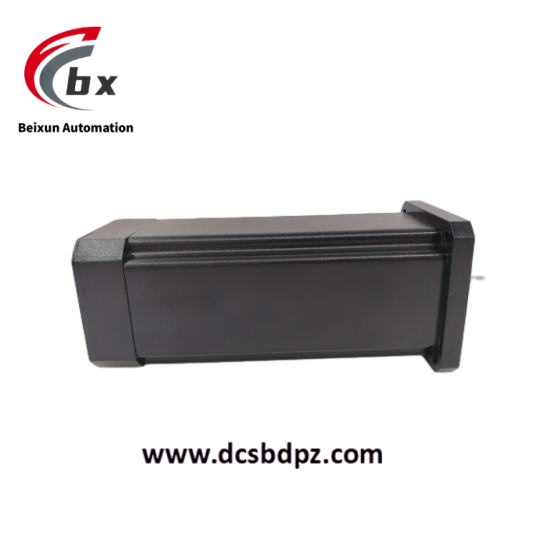

B&R 8LSA35.R0030D200-0 Synchronous Servo motor
Specific parameters
Electrical parameters:
Rated voltage: 200-600V AC
Power range: 300W-3kW
Torque: The nominal torque is about 3 Nm, and the maximum torque can reach 12 Nm
Speed: nominal speed 3000-6000 rpm, maximum speed up to 9000 rpm
Mechanical parameters:
Protection level: IP64 (dustproof, splash proof) or IP67
Shaft end specification: Smooth shaft, supporting J6 fit (centering diameter 80mm).
Weight: Approximately 4-8kg
Encoder: Supports EnDat 2.2 or rotary transformer feedback, with a resolution of up to 262144 pulses per revolution.
Product Performance
High precision control: Closed loop control is achieved through integrated encoders, with a positioning accuracy of ± 0.01mm, suitable for high-precision scenarios such as semiconductor manufacturing and electronic assembly.
Fast dynamic response: Supports high torque density design, with a dynamic response time of less than 1ms, meeting the needs of high-speed packaging machinery, robot joint drive, and other applications.
Reliability design:
Brake: The D200 suffix indicates an integrated spring brake that automatically brakes when power is off, ensuring safety (such as in elevator and lift platform applications).
Protection level: IP64/IP67. The protection can adapt to dust and humid environments (such as food and beverage production lines).
Plug and play: Parameters are stored in the encoder chip, and motor replacement does not require reconfiguration, reducing downtime
Single cable solution: Hybrid motor cable integrates power supply and feedback signal, simplifying wiring（
application area
Industrial robots: Collaborative robot joint drive, palletizing robot precise positioning.
Packaging machinery: feeding control for high-speed filling lines, servo synchronization for labeling machines.
CNC machine tools: spindle drive, feed axis control, supporting high-precision machining.
Logistics automation: The driving motor of AGV (Automated Guided Vehicle) achieves precise path tracking.
New energy equipment: pressure control of photovoltaic module laminating machine, tension adjustment of lithium battery winding machine.
Food and beverage industry: IP67 protection models can be used for filling lines and conveyor systems to meet hygiene requirements.
