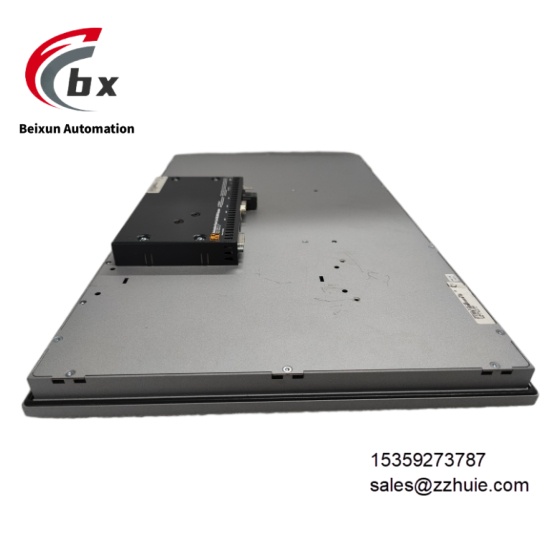

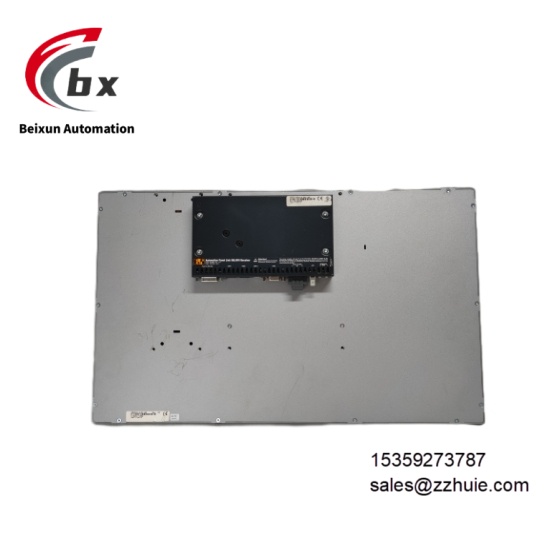

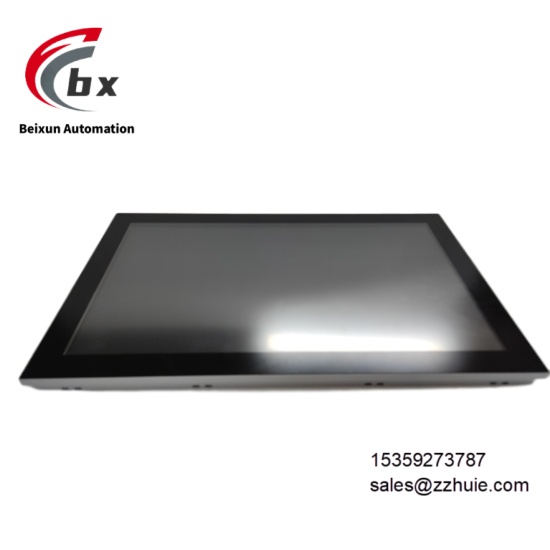

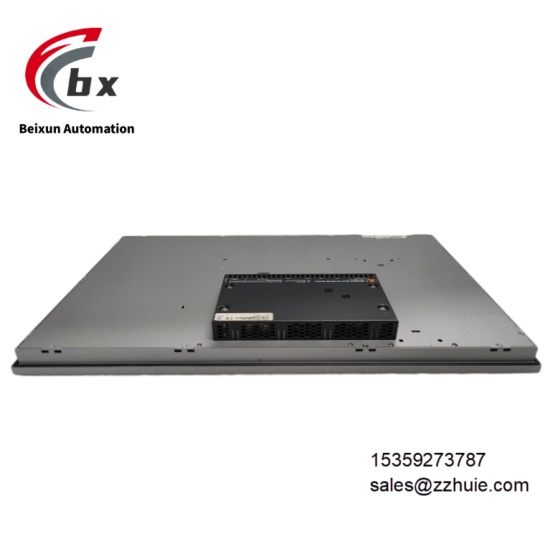

B&R 5AP933.215C-00 Display screen operation panel

Specific Parameters

Brand B&R (B&R Automation GmbH, Austria)

Product Series Automation Panel 900 Series

Product Type Industrial Display Operation Panel (HMI)

Model 5AP933.215C-00

Compatible Systems B&R PPC 900, PPC 2100, PPC 2200, PPC 3100 Series

Display Size 21.5 inches

Display Type TFT Color Display

Resolution FHD 1920×1080 Pixels (16:9)

Display Color 16.7 Million Colors

Contrast Ratio 5000:1

Viewing Angle Horizontal: 89° Left/89° Right; Vertical: 89° Up/89° Down

Backlight Type LED Backlight

Backlight Brightness 12.5-250 cd/m² (Dimmable)

Backlight Life 30000 Hours (Half Brightness)

Touch Technology Projected Capacitive Multi-Touch

Touch Transparency >90%

Communication Interfaces Ethernet, USB, POWERLINK (compatible with corresponding systems)

Operating Voltage 24V DC

Operating Temperature Range 0℃ – 50℃

Storage Temperature Range -20℃ – 60℃

Relative Humidity 5% – 95% Non-condensing

Protection Level Front: IP65; Rear: IP20 (after installing link module/system unit)

Pollution Degree Complies with EN 61131-2 Standard, Pollution Degree 2

Installation Method Control Cabinet Installation (Landscape Format)

Overall Dimensions 541.5mm×333mm×61mm (W×H×D)

Weight 5400g

Certification CE, UKCA, cULus (E115267), EAC

B&R ID Code 0xE16C

Product Performance

Adopts 21.5-inch full HD TFT color display panel with 16.7 million color display and 5000:1 high contrast ratio, ensuring clear presentation of complex industrial processes and parameter data with excellent visual effects

Wide viewing angle design, with 89° viewing angle in both horizontal and vertical directions, supporting operators to clearly read screen information from different positions, adapting to multi-station operation needs in industrial sites

Projected capacitive multi-touch technology, with sensitive touch response, supports intuitive gesture operations such as sliding and zooming, and cooperates with >90% high transparency to achieve smooth and accurate operation experience

LED backlight brightness is adjustable to adapt to different lighting environments, and 30000-hour long backlight life ensures long-term stable operation and reduces maintenance costs

Front IP65 high protection level, with excellent dustproof and water splash proof capabilities, can resist erosion of harsh industrial field environments and improve equipment reliability

Seamlessly integrated into B&R full series of compatible industrial computers and control systems, supporting multiple industrial communication interfaces to achieve efficient data interaction and unified engineering configuration

Complies with multiple international industrial certification standards and electromagnetic compatibility specifications, and can work stably in industrial strong electromagnetic interference environments to ensure that display and operation functions are not affected

Standardized control cabinet installation design, stable structure, adapting to conventional installation layout of industrial sites, convenient installation and disassembly, facilitating system integration and later maintenance
