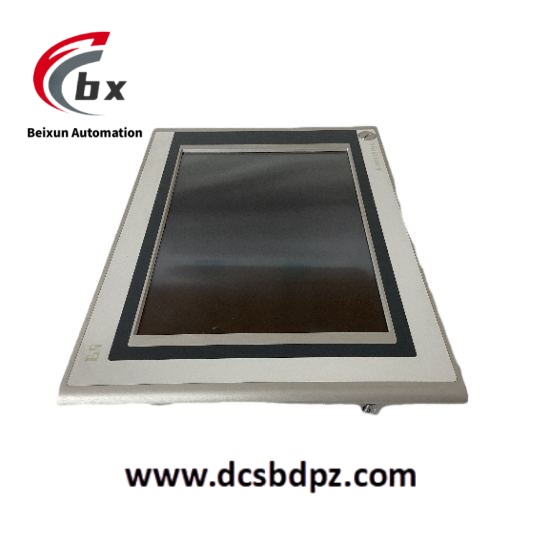

B&R 5AP920.1505-01 Industrial touch screen panel
Display screen: 15 inch XGA color TFT screen with a resolution of 1024 × 768 pixels (4:3 aspect ratio), supporting 262144 color display, contrast ratio of 500:1, and a horizontal/vertical viewing angle of 85 °.
Touch screen: Analog resistive single point touch, transmittance of 81% ± 3%, supports glove operation, and the touch controller is customized with a serial interface (12 bit accuracy) by B&G.
Protection level: IP65 on the front (dustproof and waterproof), IP20 on the back (to be installed inside the control cabinet), in compliance with IEC 60529 standard, can resist low-pressure water jet and dust intrusion.
Mechanical specifications: Size 400mm × 300mm, weight approximately 3.5kg, using aluminum frame and polyester decorative film, color RAL 7035 (light gray).
Display features: LED backlight brightness adjustable (200-400 cd/m ²), half light time up to 50000 hours, supports horizontal installation.
Communication interface: 1 POWERLINK interface+1 EtherCAT interface (dual network port design), supporting real-time industrial Ethernet communication; 3 USB 2.0 interfaces for external storage or devices.
Compatibility: It needs to be used in conjunction with the B&R PPC300 series control unit or connection module (such as the 5DLSD3 series) to achieve data exchange through a dedicated interface.
Product Performance
Industrial grade protection and durability
The front IP65 protection design can resist dust, oil stains, and liquid splashes, making it suitable for harsh environments such as workshops and production lines. Simulated resistive touch screen is impact resistant, wear-resistant, and supports glove wearing operation, meeting the high-frequency usage needs of industrial scenarios.
Real time communication capability
Integrated POWERLINK and EtherCAT dual network ports, supporting microsecond level data transmission, seamlessly connecting to B&R controllers and third-party devices (such as servo drives and sensors), meeting high-precision motion control and real-time monitoring requirements.
High definition visualization
The 15 inch XGA resolution screen provides a clear operating interface, supports SVG graphic drawing, web page calling process diagrams, and other functions. It can display device status, alarm information, and trend curves in real time, meeting the monitoring needs of complex industrial processes.
Flexible scalability
Expandable storage devices (such as USB drives) or peripherals (such as barcode readers) through USB interface, and supports local or remote firmware updates through Automation Studio software.
Long-Life Technology
The half brightness time of the LED backlight module reaches 50000 hours, reducing maintenance frequency; The fanless cooling design avoids dust accumulation and is suitable for long-term continuous operation.
