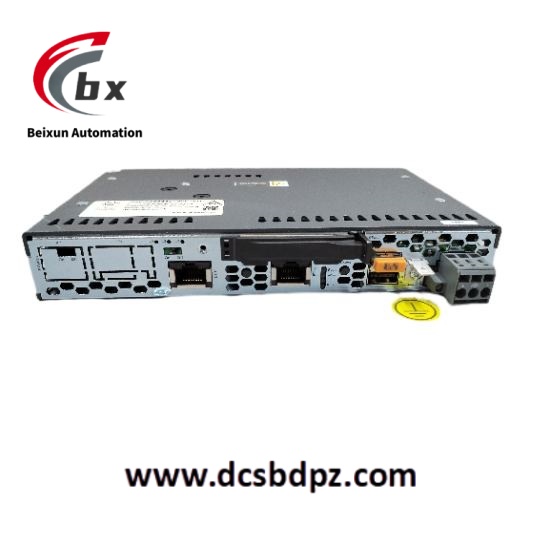

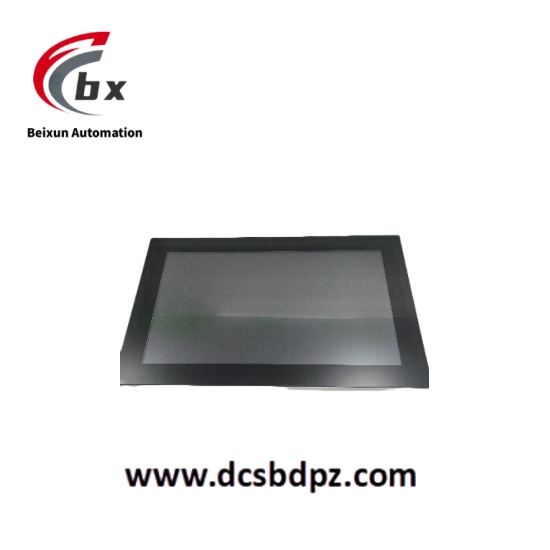

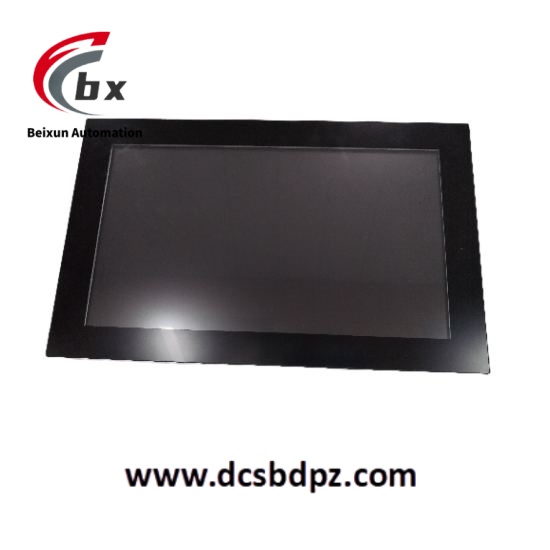

B&R 5AP1130.156C-00 Industrial grade multi touch panel
Specific parameters
display:
Type: TFT color, LED backlight
Resolution: 1920 × 1080 pixels (FHD), 16:9 widescreen
Contrast ratio: 1500:1
Brightness: 40-400 cd/m ² (adjustable)
Half bright lifespan: 70000 hours
Touch screen technology: 3M projection capacitor, supports multi touch
Physical specifications:
Protection level: IP65 on the front (dustproof and waterproof), IP20 on the back (only when installing expansion modules)
Size: 414 × 258.5mm (width × height)
Weight: 3.7kg
Electrical characteristics:
Power input: 24V DC (typical industrial voltage)
Power consumption: approximately 40W (standby mode ≤ 5W)
Interface: USB 2.0 (quantity not specified), Ethernet POWERLINK (presumably supported)
Installation method: Horizontal installation of switchgear, supporting DIN rail or panel fixation
Product Performance
High reliability:
Industrial grade component design, suitable for temperature range of -20 ° C to+60 ° C
Anti electromagnetic interference (EMC) complies with EN 61000-6-2/3 standard
High precision touch control:
Projection capacitor technology is responsive and supports glove operation and reliable identification in oily environments
Flexible Expansion:
Can be connected to PLC, I/O devices or servo drives through expansion modules (requires PPC controller)
Long life design:
The LED backlight has a lifespan of 70000 hours, and the touch screen can withstand over 1 million wear cycles
application area
Industrial automation production line:
As the main operating terminal of the production line, it realizes equipment monitoring, parameter adjustment, and fault diagnosis (such as welding robot control in automobile manufacturing)
Process industry:
On site operating interface for distributed control systems (DCS) in the chemical and pharmaceutical industries
Intelligent warehousing and logistics:
Integrated into AGV scheduling system or three-dimensional warehouse management platform, supporting real-time data exchange and path planning
Energy Management:
Local monitoring units for photovoltaic power plants or smart grids, enabling data collection and remote communication
