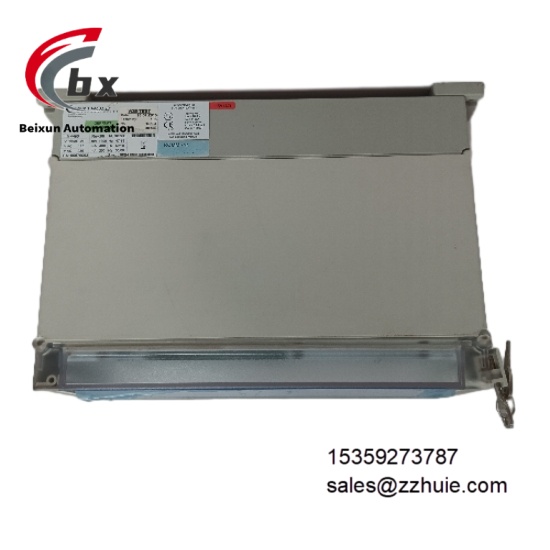

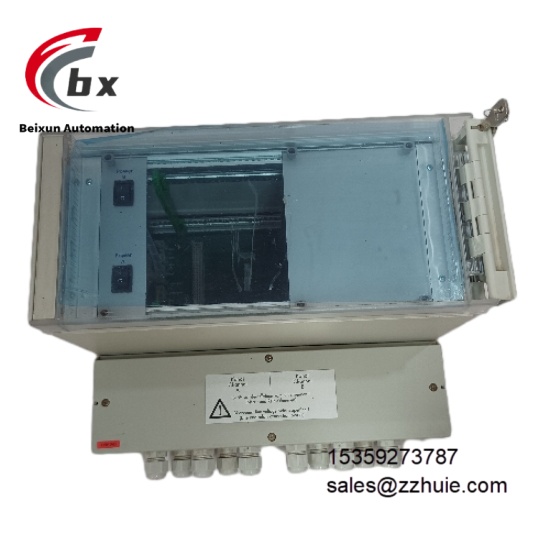

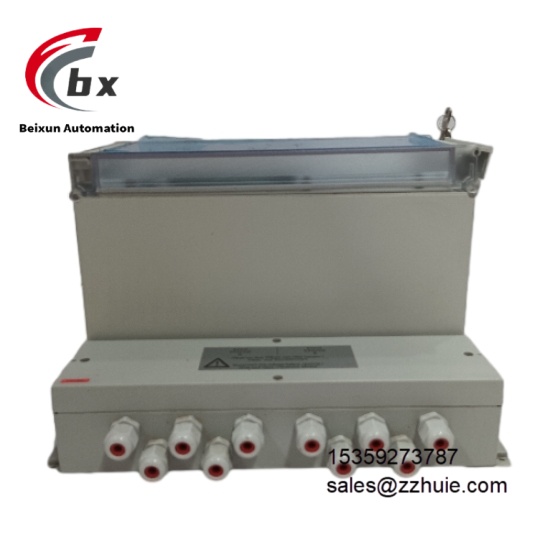

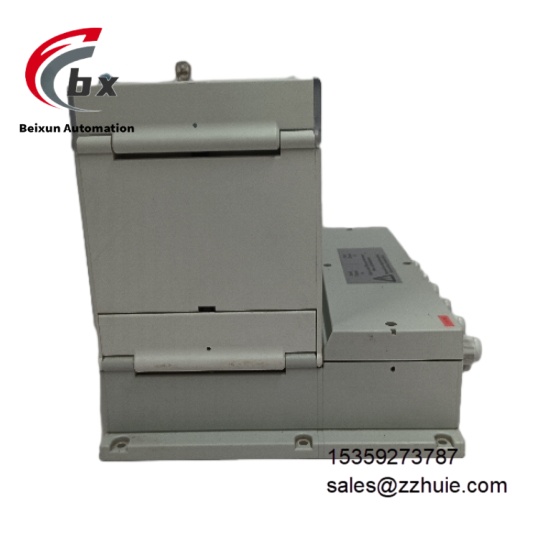

BERTHOLD LB4460 Signal processing and control box

BERTHOLD LB4460 Signal processing and control box

Specific Parameters

• Electrical ParametersPower Supply Voltage: 24V DC, allowable fluctuation range 18-30V DCRated Power Consumption: ≤15WSignal Input: Supports 4-20mA analog signal, pulse signal; adapts to γ-ray detector outputSignal Output: 4-20mA analog signal (2 channels), RS485 digital signalCommunication Protocols: Natively supports HART, Modbus RTU protocolsMeasurement Accuracy: Signal conversion error ≤±0.1% FSResponse Time: ≤100msInsulation Class: Class F (temperature resistance 155℃)Electrical Isolation: 1500Vrms isolation between input/output/power supply (complies with IEC 61010-1 standard)
• Environmental ParametersOperating Temperature: -20℃ to 60℃ (non-condensing environment)Storage Temperature: -40℃ to 85℃Relative Humidity: 5% to 95% (non-condensing)Protection Rating: IP65 (dust-proof, water-jet proof)Explosion-Proof Rating: Ex d IIB T6 Ga (complies with ATEX standard)Vibration Resistance: Complies with IEC 60068-2-6 standard, 1.5g acceleration in 10-500Hz frequency rangeShock Resistance: Complies with IEC 60068-2-27 standard, 15g acceleration (11ms duration)
• Mechanical ParametersOverall Dimensions: 280mm×220mm×120mm (L×W×H)Housing Material: Die-cast aluminum alloy with anti-corrosion surface treatmentWeight: Approximately 2.5kgMounting Method: Wall-mounted installation, compatible with standard industrial mounting bracketsInterface Type: M12 waterproof connector (signal), PG13.5 cable gland (power supply)Indicators: 4-color LED indicators for power, operation, fault and communication status
• Product PerformanceExcellent signal processing capability: Analog signal conversion error ≤±0.1% FS, response time ≤100ms, which can accurately restore detector measurement data and ensure process monitoring accuracy. Strong communication stability: Supports HART and Modbus RTU dual protocols, data transmission packet loss rate <0.01%, can be directly connected to industrial control systems without additional conversion modules.Outstanding environmental adaptability: IP65 protection rating and Ex d IIB T6 Ga explosion-proof rating, combined with wide temperature operating range, enabling continuous operation in harsh scenarios such as chemical reactor surroundings and petrochemical storage tank areas. Comprehensive diagnostic functions: Built-in power supply monitoring and signal anomaly detection algorithms; triggers alarm output within 1 second after fault occurrence, and records fault codes simultaneously, shortening maintenance time.

  Strong system compatibility: Adapts to full range of front-end equipment such as BERTHOLD LB440 series detectors and LB6639 series receivers; modular design supports function expansion to meet different measurement scenario requirements. Mean Time Between Failures (MTBF) ≥8×10⁴ hours, meeting long-cycle operation requirements of industrial sites.
